Product description
Clinical edge platform for local analysis

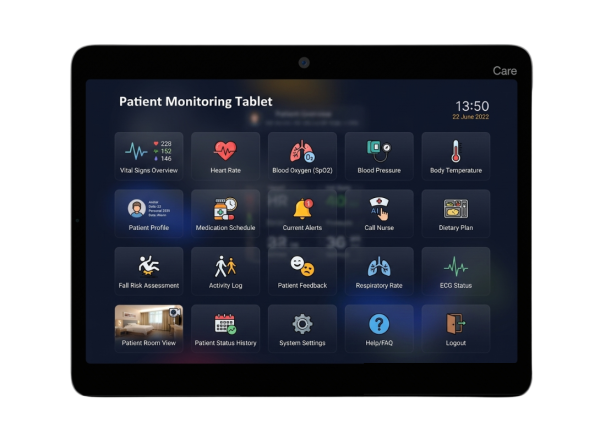

The Patient Monitoring Tablet from Atlantik Elektronik is designed as a 10.1-inch clinical edge computing hub for monitoring and analysis directly at the point of care. The platform is intended to process collected data locally and turn it into usable information with minimal delay.
Snapdragon 625 platform for monitoring workloads
The system is built around the Qualcomm Snapdragon 625 / MSM8953. This platform combines an octa-core ARM Cortex-A53 64-bit CPU at 2.0 GHz with the Adreno 506 GPU. It is suited to applications that combine local processing, graphical presentation, and continuous data acquisition.
Built for connected sensor and monitoring systems
The device supports LTE Cat 6, Wi-Fi, and Bluetooth. In the provided product text, the tablet is positioned as a platform for connecting wearables and Bluetooth-enabled sensors, as well as for transmitting alert and status data. A dedicated GNSS antenna interface is also specified.
Display, camera, and sensor set at system level
The tablet features a 10.1-inch TFT LCD display with 1920 x 1080 at 60 FPS, together with a capacitive touch panel. The platform also includes an 8 MP camera over 4-lane MIPI-CSI, analog audio support with speaker and 2 microphones, and a broad sensor set for motion, position, and ambient data.
Designed for patient monitoring and additional edge detection tasks
The provided materials list application areas including fire detection, smoke detection, fall detection, shout detection, gesture control, and human activity. Combined with the described edge AI processing, the platform is suitable for local detection and monitoring scenarios in medical, care-related, or safety-oriented environments.
For project inquiries and technical coordination, please use https://www.atestore.de/de/info/mein-kontakt.html, phone 089 895050, or store-ate@atxx.de.
Application Areas
- Patient monitoring with local data collection and edge-based analysis.
- Vital sign acquisition in combination with wearables and Bluetooth-enabled sensors.
- Fall detection and behavior-related recognition tasks in close-range monitoring.
- Clinical edge systems with display, audio, camera, and sensor data processing.
- Fire detection, smoke detection, shout detection, gesture control, and human activity.
- Mobile or stationary monitoring terminals with LTE, Wi-Fi, and Bluetooth connectivity.
Technical Specifications
- Manufacturer: Atlantik Elektronik
- Product: Patient Monitoring Tablet
- Product type: 10.1-inch patient monitoring tablet
- Dimensions: 252 mm x 180 mm x 30 mm
- Cellular: LTE Cat 6, 3GPP E-UTRA Release 10 compliant, DL MIMO 2 x 2
- CPU: MSM8953, octa-core ARM Cortex-A53 64-bit CPU @ 2.0 GHz
- GPU: Adreno 506 with 64-bit addressing
- Memory variants: 16GB eMMC + 2GB LPDDR3 (default), 32GB eMMC + 3GB LPDDR3 (optional), 64GB eMMC + 4GB LPDDR3 (optional)
- Operating system: Android 9.0 / 10.0
- Power supply: battery powered, 3.7-4.2V / 10000mAH LiPO battery
- Operating temperature: -35 °C to +75 °C
- Display: 1x 10.1" TFT LCD display, 4-lane MIPI_DSI0, 1920 x 1080 @ 60FPS
- Camera: 1x 8MP camera, 4-lane MIPI-CSI, 60fps @ Full HD 1080P
- Touch panel: capacitive touch panel
- Audio: speaker, 2 MICs for analog audio support
- Video: 4K recording and playback at 30fps; encoding/decoding 1080p at 30fps
- USB: 1x USB 3.0 and 2.0 compliant
- Switches: PWR KEY, VOL_UP, VOL_DOWN, USB_BOOT, General Purpose SW x 2
- Sensors: 6 axis gyroscope & accelerometer, magnetometer, temp + humidity, ambient light sensor
- RGB LED: 1x
- Antennas: 3x, main antenna, GNSS antenna, Wi-Fi/BT antenna interface
- Connectivity according to product description: Bluetooth, Wi-Fi, LTE
- Named local analysis functions: real-time analysis of vital signs, fall detection, behavioral monitoring
- Named cloud connection: MQTT channel
- Expandable storage according to product description: up to 256GB via Micro SD card
FAQ
FAQ
Which processor is used in the Patient Monitoring Tablet?
The tablet is built around the Qualcomm Snapdragon 625 / MSM8953 with an octa-core ARM Cortex-A53 64-bit CPU at 2.0 GHz.
Which connectivity options are supported?
The device supports LTE Cat 6, Wi-Fi, and Bluetooth. Dedicated antenna interfaces are specified for main, GNSS, and Wi-Fi/BT.
What display and camera hardware is integrated?
The system provides a 10.1-inch TFT LCD with 1920 x 1080 @ 60FPS, together with an 8 MP camera over 4-lane MIPI-CSI.
Which sensors are built in?
Integrated sensors include a 6-axis gyroscope & accelerometer, a magnetometer, a temperature/humidity sensor, and an ambient light sensor.
Which memory options are specified?
The materials list 16GB eMMC + 2GB LPDDR3 as default, with 32GB eMMC + 3GB LPDDR3 and 64GB eMMC + 4GB LPDDR3 as optional variants. The product text additionally mentions Micro SD expansion up to 256GB.
What is the tablet designed for?
The materials list patient monitoring, fire detection, smoke detection, fall detection, shout detection, gesture control, and human activity as relevant use cases.
