Product description

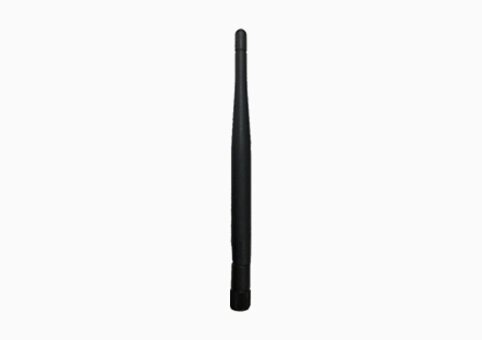

The Sparklan Antenna AD-303N is a dual-band dipole antenna for the 2.4 to 2.5 GHz and 5.15 to 5.825 GHz band with 3 dBi and 3 dBi gain on each band. This antenna has a RP-SMA plug connector and can provide broad coverage and is ideally suited for W-LAN.
Color
Antenna Type Material
Operating Frequency Range
Polarization Type
Type of Radiation
Peak Gain
Impedance
V.S.W.R.
Connector Type
Coaxial Cable
Housing
Hinge
Specification
Model Name- Ant. AD-303N
Color
- Black
Antenna Type Material
- Dual-Band Dipole
Operating Frequency Range
- 2400 to 2500 MHz
- 5150 to 5825 MHz
Polarization Type
- Linear ; Vertical
Type of Radiation
- Toroidal
Peak Gain
- 2.4-2.5GHz@3dBi
- 5.15-5.825GHz@3dBi
Impedance
- 50 Ohms
V.S.W.R.
- ≦2.0
Connector Type
- RP-SMA (M)
Coaxial Cable
- RG-178
Housing
- TPU
Hinge
- PC+ALLOY
