Product description

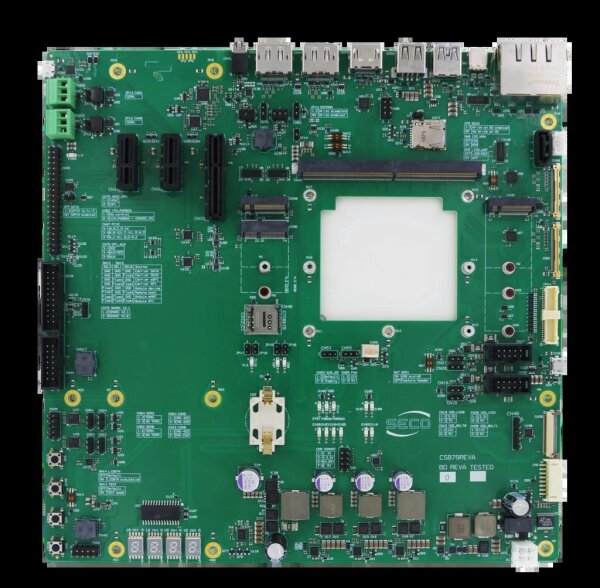

The Carrier-SMARC-2.0-B79 is a carrier board from Seco (manufacturer part number MC79-0000-0000-I1-V) for SMARC Rel. 2.0 / 2.1.1 compliant modules in microATX form factor.
Carrier-SMARC-2.0-B79 Overview
The board serves as a development and evaluation platform for SMARC modules, offering a wide range of video, storage, networking and USB interfaces. According to the manufacturer, the board is rated for the industrial temperature range.
Configuration & Features
- Dimensions 243.84 x 243.84 mm in microATX form factor
- Operating temperature -40 °C to +85 °C
- Power supply 9-24V via Mini-Fit Jr 2x2 connector or 6-17V via 2/3/4 cell smart battery connector, including RTC coin cell battery holder
- Video: LVDS/MIPI-DSI connector (shared with 2x eDP), 2x DP++, HDMI (alternative to 1x DP++), and 2x CSI camera input interfaces
- Mass storage via SATA M 7p connector with dedicated power (shared with M.2 Socket 2 2230/2242/2260 Key B) plus microSD card slot
- Networking with up to 2x Gigabit Ethernet (RJ-45), M.2 Key E 2230 for WiFi/BT and M.2 Key B 2260/3042 for WWAN modem modules with microSIM slot
- USB 3.0, USB 2.0, USB OTG micro-AB and USB 3.1 Type-C plus a PCIe x4 slot shared with the M.2 slots
Typical Applications
The Carrier-SMARC-2.0-B79 is suited for development and prototyping of applications based on SMARC modules, for example in the Carrier & Development Boards category.
Note for Development
The board is used together with a matching SMARC module, which must be purchased separately according to the manufacturer. For design-in support and current availability, contact our team.
