Product description

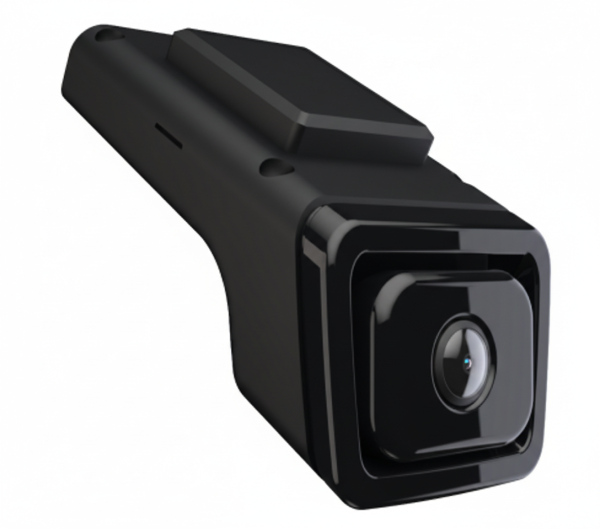

Dual-channel dash camera built for connected vehicle and fleet deployments
The Dual Channel 4G LTE Dash Camera targets consumer vehicles, taxis, and fleet operations, delivering dependable Full HD recording from two viewpoints: front and cabin/rear. It provides a practical foundation for teams working on remote visibility, location-linked evidence, and event-driven capture.
Two Sony IMX335 sensors – Full HD at 30 fps per channel
Both channels use the Sony IMX335 sensor and record at 1080p @ 30 fps. For challenging lighting, HDR and Night Vision are supported. Video is encoded using H.264 in MP4 format.
Connectivity for operations, access, and positioning
Connectivity includes 4G LTE, Wi-Fi 2.4/5 GHz (IEEE 802.11 a/b/g/n/ac), and Bluetooth (BLE 5.0). Positioning is enabled via GNSS (GPS/GLONASS), supporting location-linked workflows in fleet environments.
Incident detection, safety alerts, and tamper awareness
An integrated G-Sensor supports incident detection and event-based workflows including video locking. Additional features include Forward Collision Warning, Lane Departure Warning, In-Cabin Audio Alerts, and Camera Blocker & Tamper Detection to improve safety, compliance, and operational efficiency.
Android 13 platform with a solid compute and storage baseline
The device runs Android 13 on the Quectel SC668S Smart Module (octa-core up to 2.0 GHz), paired with 4 GB LPDDR4X and 64 GB eMMC. Storage can be expanded via MicroSD up to 512 GB.
Integration-ready hardware: touchscreen, USB-C, SIM, and wide temperature range
The unit features an integrated LCD touchscreen, USB Type-C power (5V DC), a SIM slot, and a reset button. It includes an internal 800 mAh battery. Operating temperature is specified at –20°C to +70°C (storage: –40°C to +90°C).
Security and maintainability for rollout
For product teams, supported capabilities include Secure Boot, Firmware Encryption, and Data Encryption, plus OTA updates. Android app support is provided.
Looking to integrate a white-label dashcam into your platform or fleet setup? Contact info@atlantikelektronik.com or call Tel: 089 89 505 0.
Specifications
| Product type | Dual Channel LTE Dash Camera |
|---|---|
| Use case | Consumer Vehicles / Taxi / Fleet |
| Operating system | Android 13 |
| Processor/Module | Quectel SC668S Smart Module |
| CPU | Kryo Gold Quad-Core @ 2.0 GHz + Kryo Silver Quad-Core @ 1.8 GHz |
| RAM | 4 GB LPDDR4X |
| Internal storage | 64 GB eMMC |
| Front camera | Sony IMX335, 1080p, 5 MP effective, up to 30 fps |
| Cabin/Rear camera | Sony IMX335, 1080p, up to 30 fps |
| Video | H.264 encoding, MP4 format, HDR supported, Night Vision supported |
| Audio | Built-in microphone and speaker |
| Cellular | 4G LTE |
| Wi-Fi | 2.4 GHz / 5 GHz (IEEE 802.11 a/b/g/n/ac) |
| Bluetooth | BLE 5.0 |
| GNSS | GPS / GLONASS |
| Sensors | G-Sensor supported |
| Display | LCD touchscreen (supported) |
| Power | 5V DC via USB Type-C |
| Battery | 800 mAh |
| Security | Secure Boot, Firmware Encryption, Data Encryption (supported) |
| Software | Android app support, OTA updates (supported) |
| Interfaces | USB Type-C, MicroSD slot, SIM slot, Reset button |
| Indicators | LED indicators for 4G, GPS, Wi-Fi, Recording ON/OFF |
| Operating temperature | –20°C to +70°C |
| Storage temperature | –40°C to +90°C |
| Expandable storage | MicroSD up to 512 GB |
| Storage encryption | Supported |
FAQ
FAQ
Does it support true dual-channel recording?
Which connectivity options are available?
How is incident detection handled?
What security and maintenance features are supported?
Is it suitable for automotive temperature ranges?
Technical question? Talk to our FAEs.
Our Field Application Engineers support you with platform selection, integration and the path to series production – across manufacturers.
