Product description

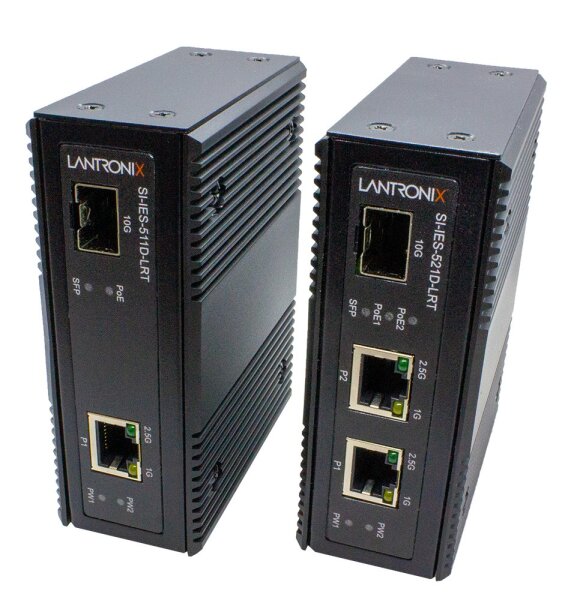

Lantronix SI-IES-521D-LRT – Dual-Port PoE++ Injector/Converter for Harsh Environments
The SI-IES-521D-LRT expands the capabilities of the SI-IES-5x1D-LRT series by offering two PoE++ ports, each supplying up to 90 watts. This makes it an ideal choice for deployments that require multiple high-power devices such as Wi-Fi 6/6E access points, PTZ cameras or multi-sensor surveillance units.
Multi-Gigabit Performance & Flexible Fiber Uplinks
Supporting up to 2.5G Ethernet and featuring a 1G/10G SFP+ slot, the device enables long-distance fiber backhaul and seamless integration into modern industrial, transportation and security networks.
Built for Demanding Industrial Conditions
With a robust IP31 metal enclosure and extended temperature tolerance from -40°C to +75°C, the SI-IES-521D-LRT is suitable for outdoor traffic cabinets, tunnels, parking facilities and industrial control cabinets.
Typical Applications
- Outdoor and indoor surveillance systems
- Smart transportation and traffic management
- Industrial automation and machine control
- Parking garages, tunnels and outdoor network cabinets
Specifications
| Category | Specification |
|---|---|
| Model | Lantronix SI-IES-521D-LRT |
| PoE Output | Up to 2× 90W (IEEE 802.3af/at/bt) |
| Data Rates | 10M / 100M / 1G / 2.5G |
| SFP+ | 1G/10G SFP+ slot |
| Ethernet | Dual-Port PoE++ |
| Enclosure | IP31 metal housing |
| Mounting | DIN-rail or wall-mount |
| Operating Temperature | -40°C to +75°C |
FAQ – Frequently Asked Questions
FAQ – Frequently Asked Questions
What is the difference between SI-IES-511D-LRT and 521D-LRT?
The 521D-LRT provides two PoE++ output ports instead of one, allowing simultaneous power delivery to two high-power devices.
Can the device be installed in outdoor cabinets?
Yes, the unit is built for harsh outdoor and industrial environments with an extended -40°C to +75°C temperature range.
Does it support fiber uplinks?
Yes, the integrated 1G/10G SFP+ slot allows flexible uplink options for long-distance connections.
Is the unit managed or unmanaged?
It is an unmanaged device—plug-and-play with no configuration required.
What types of devices benefit from dual 90W PoE++?
High-end access points, PTZ cameras, multisensor camera systems and other demanding IP equipment.
