High-Performance PoE++ Switch for Demanding Networks

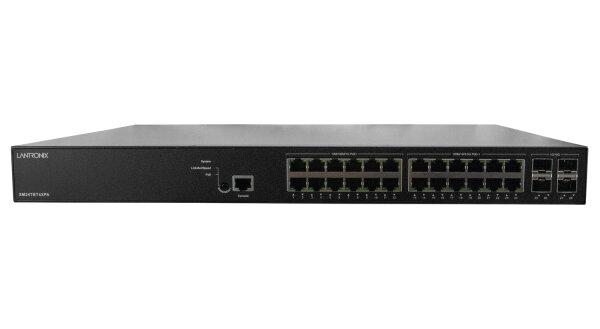

The Lantronix SM24TBT4XPA is a premium Layer 2+ managed switch featuring 24 multi-Gigabit PoE++ copper ports (10/100/1000/2500/5000 Mbps) and 4 10G SFP+ uplinks. Designed for demanding environments, it’s ideal for powering and connecting IP cameras, access points, smart building systems, or industrial IoT networks.With a total PoE power budget of 740 watts, the switch supports even power-hungry devices — providing data and power over a single Ethernet cable.
Flexible Connectivity & High Bandwidth
The SM24TBT4XPA offers a powerful mix of multi-gig PoE ports and 10G SFP+ uplinks, ensuring high-speed data transmission. It can be easily managed via Web GUI, SNMP, or CLI, making it easy to integrate into both new and existing network infrastructures.Enterprise-Grade Security & Reliability
This switch offers advanced security features, including:- Access Control Lists (ACLs)
- IEEE 802.1X Port Authentication
- DHCP Snooping
- Denial-of-Service (DoS) Protection
- It also supports Quality of Service (QoS) and advanced VLAN configurations, essential for modern enterprise and industrial use cases.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | Lantronix SM24TBT4XPA |
| Switch Type | Layer 2+ Managed Switch |
| PoE Ports | 24 × 10/100/1000/2500/5000 Mbps (PoE++) |
| Uplink Ports | 4 × 10G SFP+ |
| PoE Standard | IEEE 802.3bt (PoE++) |
| Total PoE Budget | 740 Watts |
| Switching Capacity | 240 Gbps |
| Forwarding Rate | 178.56 Mpps |
| Management Options | Web GUI, SNMP, CLI, RMON |
| VLAN Support | IEEE 802.1Q VLAN, Private VLAN |
| QoS | 8 Queues per Port, DSCP, CoS, WRR, Strict Priority |
| Dimensions (W×D×H) | approx. 44 × 38 × 4.4 cm (1U Rackmount) |
| Operating Temperature | 0 °C to 50 °C |
| Certifications | CE, FCC, RoHS |
| Highlights | Multi-Gigabit, 10G SFP+, PoE++, L2+ features |
