Product description

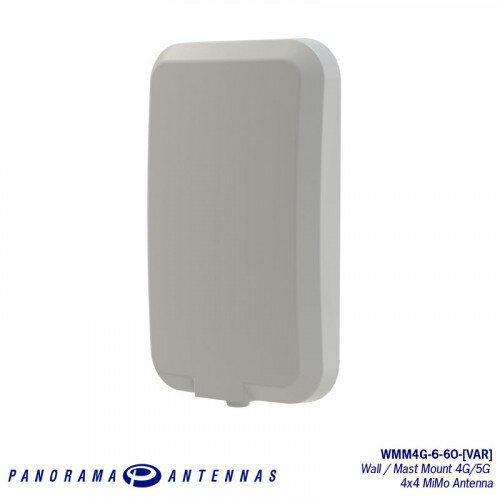

Panorama Antennas WMM4G-6-60-05NJ - 4x4 MiMo-antenna 4G/5G
The WMM4G-6-60-05NJ is a high directional gain 4x4 MiMo signal boosting antenna for 4G and 5G networks. Incorporating four separately fed wideband element assemblies in a single housing the WMM4G-6-60 is equipped to provide client side MiMo support for 4G and 5G networks offering 6dBi of peak gain at 617- 960MHz and 9dBi peak gain at 1710-6000MHz.
The weather resistant housing is designed for wall mounting and wall and mast mount brackets are provided. Supplied with fitted low loss double shielded cable for cellular/LTE the WMM4G-6-60-05NJ minimises exposed connector joints and simplifies cable management for easy installation.
Product Features
Applications
The WMM4G-6-60-05NJ is a high directional gain 4x4 MiMo signal boosting antenna for 4G and 5G networks. Incorporating four separately fed wideband element assemblies in a single housing the WMM4G-6-60 is equipped to provide client side MiMo support for 4G and 5G networks offering 6dBi of peak gain at 617- 960MHz and 9dBi peak gain at 1710-6000MHz.
The weather resistant housing is designed for wall mounting and wall and mast mount brackets are provided. Supplied with fitted low loss double shielded cable for cellular/LTE the WMM4G-6-60-05NJ minimises exposed connector joints and simplifies cable management for easy installation.
Features
Panorama Antennas WMM4G-6-60-05NJ - 4x4 MiMo-antenna 4G/5GProduct Features
- High gain directional antenna
- Wall or mast mount
- IP66 rated for outdoor use
- 4x4 MiMo wideband 600-6000MHz
- 4G/5G ready antenna
- 6-9dBi peak gain
- Supports LTE CAT18/20 routers
- Ideal for branch networks or failover
- Weather resistant product
Applications
- Branch network
- Failover
- Rural broadband
