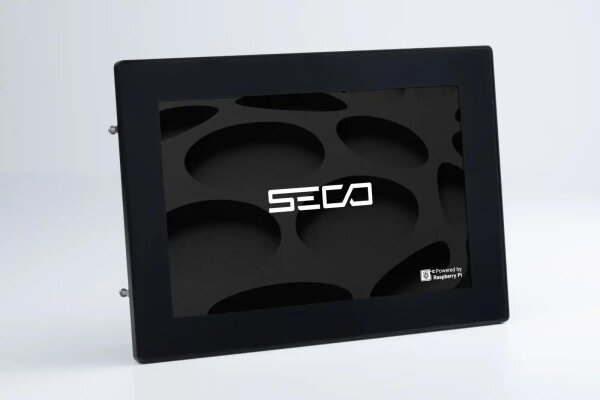

Pi Vision 10.1 CM5 Industrial HMI Panel – Seco KTMX-F33-1131-1010-C1

The Pi Vision 10.1 CM5 from SECO (manufacturer part number KTMX-F33-1131-1010-C1) is an industrial 10.1-inch HMI panel built around the Raspberry Pi Compute Module 5, featuring 8GB LPDDR4 RAM and 64GB eMMC storage.

Pi Vision 10.1 CM5 Overview

The SECO Pi Vision 10.1 CM5 is a versatile and modular 10.1-inch HMI designed for the evolving demands of industrial applications. It is based on the Raspberry Pi Compute Module 5 (CM5) and integrates the Clea IoT software suite.

Configuration & Features

• Broadcom BCM2712 quad-core 64-bit Arm Cortex-A76 (Armv8) SoC at 2.4GHz processor with VideoCore V3D VII GPU at 800 MHz
• 8GB LPDDR4-4267 SDRAM with ECC and 64GB eMMC flash storage (this variant, per manufacturer part number)
• 10.1-inch touch display with 1280 x 800 resolution, 400 cd/m² brightness and 50,000-hour LED lifetime
• Connectivity via 2.4/5.0 GHz Wi-Fi (IEEE 802.11 b/g/n/ac), Bluetooth 5.0/BLE and Gigabit Ethernet with IEEE 1588 support
• Interfaces: 2x USB 3.0, M.2 M-key PCIe socket, and a 40-pin GPIO header with UART, I2C, SPI, SDIO, DPI, I2S, PWM and GPCLK functions
• Power supply via external 5V USB-C PSU; operating system support for Clea OS (Yocto-based) and Raspberry Pi OS
• Operating temperature range of 0°C to +60°C at dimensions of 270 x 187 x 52 mm

Typical Applications

As an industrial HMI panel built on the Raspberry Pi CM5, the Pi Vision 10.1 CM5 is suited for projects in Industrial Panels, Tablets & HMI as well as applications in Smart Building & Access Control.

Note for Development

SECO provides a dedicated developer portal for the Pi Vision 10.1 CM5 with getting-started guides, datasheet, manual and technical drawings. The open GPIO and M.2 interfaces plus support for Clea OS and Raspberry Pi OS allow adaptation to customer-specific software and hardware requirements.

For availability, samples and project pricing on the Pi Vision 10.1 CM5, contact the Atlantik Elektronik team.
