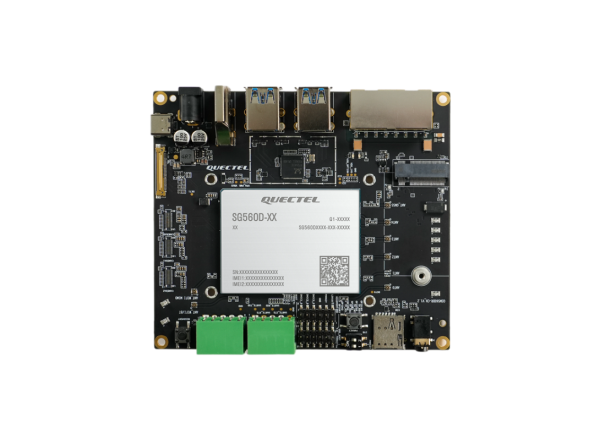

QSM board QSM560DR-EM 128+8GB

QCM6490-based SBC platform

The QSM560DR-EM 128+8GB is an SBC QSM board in the QSM560DR Series and uses the Qualcomm QCM6490 as its computing platform. The architecture combines a 64-bit octa-core CPU, the Adreno 643 GPU, and a 12 TOPS NPU in a capable embedded design for applications that need processing power, connectivity, and multimedia capability on one board-level platform.

Built for edge, HMI, and multimedia systems

The underlying QSM560DR platform supports 5G NSA/SA with 4G/3G fallback as well as Wi-Fi 6E, Bluetooth 5.2, and GNSS. It also integrates multimedia interfaces such as HDMI, eDP, and MIPI CSI. This makes the board suitable for embedded systems that combine displays, cameras, local processing, and connected communication.

Broad interface base for technical integration

At platform level, the board provides USB, Ethernet, RS232, RS485, CAN, SIM, and SD. This makes it suitable for designs that need to combine communication interfaces, field connectivity, and local processing. The platform is positioned for M2M, edge, and embedded tasks with higher integration density.

8+128GB configuration for demanding embedded applications

This version is specified with 8GB RAM and 128GB storage. That configuration is well suited to SBC designs that need to run an operating system, application logic, local data storage, graphical user interfaces, and more demanding edge applications on the same platform.

Use in connected embedded and industrial projects

The platform addresses use cases such as robotics, smart retail, smart industrial parks, smart safety, and other industrial edge applications. This makes the board suitable for projects that combine 5G connectivity, edge processing, and multimedia functionality on a compact SBC platform.

For project inquiries and technical coordination, please use https://www.atestore.de/de/info/mein-kontakt.html, phone 089 895050, or store-ate@atxx.de.


Application Areas

• Edge-computing systems with 5G and multimedia connectivity.
• Robotics and connected embedded systems with local processing capability.
• Smart retail and interactive terminal systems with display and wireless connectivity.
• Industrial edge systems with serial interfaces and CAN communication.
• HMI, camera, and display-based embedded platforms.
• Smart safety and other applications combining 5G, GNSS, and multimedia functionality.

Technical Specifications

• Product: QSM560DR-EM 128+8GB
• MPN: QSM560DREM-8U128-AAPCB
• Series: QSM560DR
• Product type: SBC QSM board
• Chip / platform: Qualcomm QCM6490
• Memory configuration: 8GB RAM / 128GB storage
• CPU: 64-bit octa-core processor, 1.9-2.7 GHz
• GPU: Adreno 643 GPU
• NPU: 12 TOPS
• Cellular: 5G NSA/SA with 4G/3G fallback
• 3GPP release: Release 15
• Wireless standards: 5G, Wi-Fi 6E, Bluetooth 5.2, GNSS
• Wi-Fi: Wi-Fi 6E, DBS, 2x2 MU-MIMO, IEEE 802.11a/b/g/n/ac/ax
• GNSS: GPS, GLONASS, BDS, NavIC, Galileo, QZSS, SBAS
• Operating systems at platform level: Ubuntu, Android, Windows
• Interfaces at platform level: USB, Ethernet, RS232, RS485, CAN
• Additional platform interfaces: HDMI, eDP, MIPI CSI, SIM, SD
• Additional module interfaces: LCM, camera, touch panel, PCIe, UART, USB, I2C, I2S
• Video: 4K H.265 / H.264 encoding and decoding
• Module series: SG560D series smart module
• Module base: QCM6490 or QCS6490
• Module form factor: LGA package
• Module dimensions: 56.5 x 2.95 mm
• Platform functions: auto start after power-on, Wake-on-LAN, watchdog, ultra low power consumption
