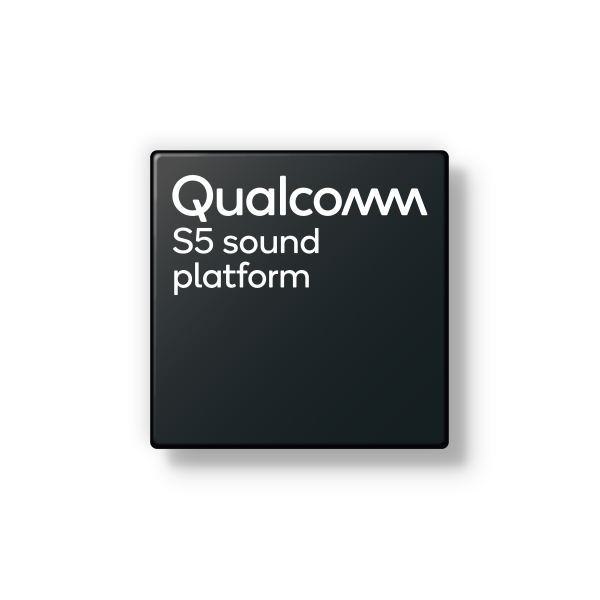

Qualcomm QCC5171 - Bluetooth Audio SoC - QCC-5171-0-WLNSP99-TR-040

The Qualcomm QCC5171 - Bluetooth Audio SoC (MPN:QCC-5171-0-WLNSP99-TR-040) is a top-of-the-line, single-chip audio platform with ultra-low power consumption and programmable DSP optimized for use in true wireless earphones and hearing aids. Designed for the future of wireless sound, the Qualcomm® QCC5171 supports LE audio use cases and CD-less audio (16-bit 44.1 kHz) with Snapdragon Sound™ technology - our optimized chain of superior audio, connectivity and mobile innovations.

Built-in features include third-generation Qualcomm® Adaptive Active Noise Cancellation (ANC) with full-band ambient mode for powerful, effective noise cancellation and a natural sense of spatial awareness.

With Qualcomm® aptX Adaptive Audio and high-performance DACs, the platform is designed to deliver high-resolution (24-bit 96kHz), low-latency audio through the Bluetooth audio processing chain. This dual-mode platform offers LE audio use cases for audio sharing, gaming, and stereo recording supported alongside traditional Bluetooth technology, providing an optimal listening experience in a variety of environments.

As consumer demand for smaller form factor devices continues to grow, the QCC5171 WLCSP case is designed to help manufacturers create ultra-small earphones that are comfortable enough to wear for extended periods of time.

Qualcomm QCC5171 Features:

• ​Extremely low-power performance
• Designed to support the Bluetooth LE Audio standard
• Bluetooth 5.3 radio
• Ultra-small form factor
• Powerful quad-core processor architecture – supporting complex use cases
• Dual core 32-bit processor application subsystem (up to 80MHz)
• Dual core 240Mhz programmable Qualcomm® Kalimba™ DSP audio subsystem (runs from ROM)
• Qualcomm TrueWireless™ Mirroring technology for improved robustness and a superior user experience
• Designed to support wake-word and/or button activated digital assistants including Amazon Alexa Voice Service and Google Assistant
• Support for Google Fast Pair
• Software architecture compatible with Qualcomm® QCC512x, Qualcomm® QCC514x and Qualcomm® QCC515x series
• Embedded ROM + RAM and external Q-SPI Flash
• On-chip memory for audio buffering
• High-performance audio combined with low-power consumption
• aptX Voice technology superior for call quality on uplink and downlink
• 24bit/96kHz high resolution audio
• CD Lossless audio quality with Snapdragon Sound
• aptX Audio including aptX Adaptive Audio
• cVc
• Support for Qualcomm ANC - feedforward, feedback, hybrid and adaptive
• Support for 3rd party innovation via the Qualcomm® Voice and Music Extension Program

Special Features

Special feature of the Qualcomm® QCC5171:

Integrated LE Audio and Classic Bluetooth audio
QCC5171 is qualified for a range of LE Audio-enabled use cases for earbuds, including audio sharing and broadcast, gaming mode and stereo recording. These dual-mode platforms integrate the best of LE Audio and the best of classic Bluetooth, to enable smooth feature adoption for real-world listening scenarios.

Excellence in audio
QCC5171 is designed to offer a selection of options for delivering crystal-clear voice calls in earbuds. These include super wide band voice quality with aptX Voice technology, and up to 3-microphone Qualcomm® cVc™ Echo Cancelling and Noise Suppression (ECNS).

This platform also supports both 24-bit 96kHz and 24-bit lossless audio quality in an adaptive platform, along with low-latency Bluetooth audio for gaming.

Integrated noise cancellation
QCC5171 supports our third-generation Qualcomm ANC, which leverages an integrated, dedicated hardware block on the platform. It supports incredibly low-latency and low-power performance for noise cancellation, without taxing the audio subsystem. This tech is designed for increased bit-depth and sample rates, allowing more precise filter control so audio developers can tune for stronger noise cancellation across a wider range of frequencies.

Concurrent support for differentiating audio features
Differentiate at a range of consumer price points with concurrent support for our portfolio of licensable audio technologies , including Snapdragon Sound, digital assistants, Qualcomm ANC, aptX Adaptive Audio, aptX Voice technology, cVc. QCC5171 is designed to support wireless earbuds, stereo headsets and speakers with the audio features consumers need most, and to seamlessly shift between them.

Specifications

CPU

CPU Clock Speed: Up to 80 MHz

CPU Architecture: 32-bit

CPU Features: Programmable Apps CPU


DSP

DSP RAM: 384kB ( P ) + 1408kB ( D )

DSP Technology: 1x Qualcomm® Kalimba™ DSP, Programmable DSP, 1x Programmable DSP

DSP Clock Speed: 2x 240 MHz


Bluetooth

Bluetooth Specification Version: Bluetooth 5.3 Qualified

Bluetooth Features: Qualcomm TrueWireless™ Mirroring technology

Connection Technology: Bluetooth Low Energy, Dual-mode Bluetooth

Bluetooth Data Rate: 1 Mbps LE, 2 Mbps LE, 3 Mbps EDR, 1 Mbps BR, 2 Mbps EDR


Voice Services

Digital Assistant Activation: Always on voice wake-word support, Button press

Voice Services Ecosystems: Amazon Alexa Voice Service, Google Assistant


Audio

Qualcomm® aptX™ audio playback support: Qualcomm® aptX™ Audio, Qualcomm® aptX™ Lossless, Qualcomm® aptX™ Voice, Qualcomm® aptX™ Adaptive

Qualcomm® Adaptive Active Noise Cancelling (ANC) technology: Adaptive, Feedback, Feedforward, Hybrid, Qualcomm® Active Noise Cancellation

Qualcomm® cVc™ Echo Cancellation and Noise Suppression (ECNS) technology: 2-mic Headset, up to 3-mic Earbuds


Memory

Memory Type: External Flash


Interfaces

Supported Interfaces: 24-bit audio interfaces, I²S, I²C, UART


Input/Output

Audio I/O: 1x USB interface supports up to 12Mbps


Audio Playback Interfaces

Playback DAC: Stereo DAC

Channel output: Stereo

Audio outputs: 2-ch high quality Class-AB, 2-ch high quality Class-D, 3x 24-bit SPDIF up to 192 kHz


Pulse Code Modulation (PCM)

Playback Sampling: Up to 192kHz/24bit


Package

Package Type: WLCSP

Pins: 99 pins

Pitch: 0.4mm Pitch

Size: 4.930 x 3.936 x 0.57 mm


Part

Part Number(s): QCC5171
