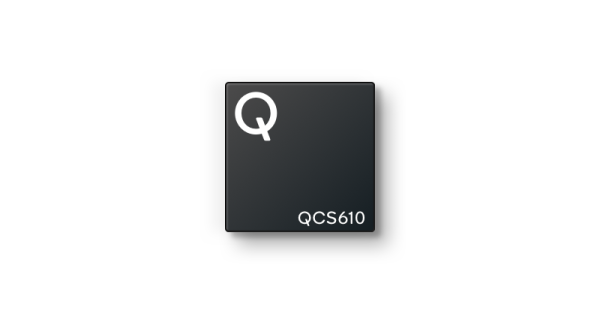

Qualcomm® QCS610 Powerful Octa-Core System on Chip

For mid-range smart cameras with applications that leverage AI and machine learning.

The Qualcomm® QCS610 SoC is a high-performance IoT system-on-chip (SoC) with best-in-class capabilities for building advanced smart camera and IoT use cases that cost-effectively incorporate machine learning, edge computing, sensor processing, voice control and integrated wireless connectivity.

The Qualcomm® QCS610 SoC is designed to deliver high-performance computing power for on-device camera processing and machine learning with exceptional power and thermal efficiency for a wide range of IoT applications. It integrates a high-performance image signal processor (ISP) and Qualcomm® Artificial Intelligence (AI) engine, as well as a heterogeneous compute architecture with highly optimized custom CPU, GPU and DSP for accelerated AI performance.



Accelerated AI performance

On-device machine learning through Qualcomm AI Engine can support AI use cases such as facial recognition, object tracking, and people counting.



Highly integrated SoC

The Qualcomm QCS610 is a highly integrated SoC with integrated PMIC, audio codecs and connectivity solutions for reduced BOM costs and faster time to market.



Low power consumption

Specifically designed for smart camera applications that use compute-intensive functions and designed to reduce power consumption.



4K Ultra HD video

Dual ISPs support staggered HDR, low-light noise reduction, and enhanced autofocus performance, as well as 4K video capture and playback at 30fps and support for secondary streams for preview and streaming.

Specification

Qualcomm® QCS610
Qualcomm® Artificial Intelligence (AI) Engine

AIE GPU: Qualcomm® Adreno™ 612 GPU

Neural Processing: Qualcomm® Neural Processing SDK

Hexagon Processor: Qualcomm® Hexagon™ 685 DSP

Wi-Fi

Wi-Fi Standards: 802.11a/b/g/n/ac

Wi-Fi Spectral Bands: 2.4GHz, 5GHz

Peak Speed: 433 Mbps

Bluetooth

Bluetooth Version: Bluetooth 5.0

Location

Satellite Systems Support: Beidou, Galileo, GLONASS, GPS

USB

USB Version: USB 3.1, USB 2.0

CPU

CPU Clock Speed: Up to 2.2 GHz

CPU Cores: Qualcomm® Kryo™ 460 CPU, Octa-core CPU

CPU Architecture: 64-bit

Process

Process Technology: 11 nm

DSP

DSP Technology: 2x Qualcomm® Hexagon™ Vector Processor, Qualcomm® Hexagon™ 685 DSP, Qualcomm® Hexagon™ DSP

Camera

Image Signal Processor: Qualcomm Spectra™ 250L image signal processor, 14-bit

Single Camera: Up to 16 MP

Camera Features: Electronic Image Stabilization (EIS), Lens Distortion Correction (LDC), Snapshot and Video, Temporal Noise Reduction (TNR), Staggered High Dynamic Range (sHDR)

Video Capture: Up to 4K Ultra HD at 30 fps

Dual Camera: Up to 24 MP

Video

Video Playback: Up to 4K Ultra HD video playback

Codec Support: H.265 (HEVC)

Display

Max On-Device Display: Up to FHD+, 2520 x 1080 60fps

Max External Display: 1920 x 1200 60fps

General Audio

Audio Technology: Hi-Res/192kHz, Native 44.1kHz, Audio on Dedicated DSP

GPU

GPU Name: Qualcomm® Adreno™ 612 GPU

API Support: OpenGL® ES 3.2, Vulkan® 1.1, OpenCL

Charging

Qualcomm® Quick Charge™ Technology Support: Qualcomm® Quick Charge™ 4 technology

Memory

Memory speed: 1804MHz

Memory Type: 2x16bit, LPDDR4x

Interface

Supported Interfaces: Ethernet RGMII
