Product description

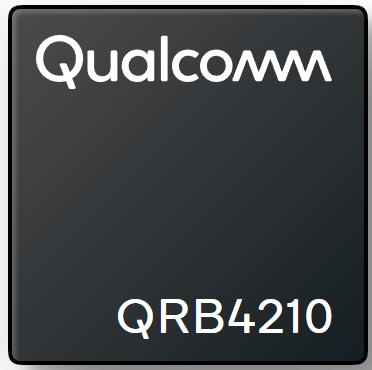

Qualcomm Robotics RB2 Platform - QRB4210
The Qualcomm Robotics RB2 platform integrates high-level features, AI solutions, and powerful performance in a unified, costeffective solution giving OEMs, ODMs, and developers flexibility to design and create a generation of high-performance everyday robotics and IoT products.The Qualcomm Robotics RB2 combines heterogeneous compute performance and a dedicated AI accelerator, communications technologies, and new levels of costeffectiveness and accessibility for the industry. The platform is optimized for smaller devices and lower power consumption.
This extends to their built-in support for machine vision; support for up to three cameras, providing on-board intelligence to meld this data with other high-fidelity sensors from TDK for applications such as autonomous navigation.
Features
Qualcomm Robotics RB 2 Platform - QRB4210- 11 nm process technology for improved performance and lower power consumption
- Designed with CPU architectures for increased speeds and sustained performance
- Kryo 260 CPU with quad high-performance cores @ 2.0 GHz and quad power-saving cores @ 1.8 GHz
- Adreno GPU 610 @ 950 MHz with 64-bit addressing
- Compute DSP with Hexagon Vector eXtensions (dual-HVX at 1.0 GHz)
- Dual-channel non-PoP high-speed memory
- Qualcomm® FastConnect™ 6100 Mobile Connectivity System provides the Wi-Fi 6-ready, integrated with Wi-Fi subsystem with Bluetooth 5, WPA3 Security, and digital FM. Bluetooth 5.1 provides improvement in power performance from previous generation
- Qualcomm® Universal Bandwidth Compression (UBWC) with display and GPU
- Support FHD+ display, four hardware layers, 10-bit end-to-end, and Qualcomm® True Palette Display feature • 3x ISP (13 MP + 13 MP)/(25 MP + 5 MP) @ 30 fps
- 1080p60 video encode/decode
- Support for USB 3.1 Type-C, UFS 2.1 gear 3 (onelane), eMMC 5.1, and SD 3.0
