Product description

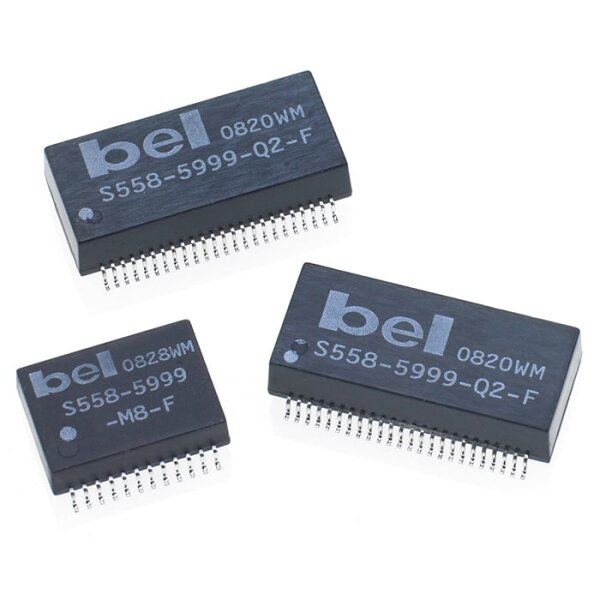

Bel Fuse S558-5999-T5-F - The discrete LAN transformer module for 10/100 Base TX and Gigabit Ethernet transmission standards for wired LANs.
- With this Bel module you support the convergence of voice and data networks, computer technologies and storage systems.- The Bel S558-5999-T5-F Discrete LAN Transformer Module meets the major IEEE and ANSI standards.
- Easy integration into the final product is thus possible by meeting these standards.
- The LAN transformer module can be easily approved with chipsets from leading IC / PHY manufacturers
- It offers you outstanding performance and reliability in terms of insertion loss, return loss and crosstalk.
More details:
- 10 / 100BASE-TX discreter LAN Magnetics Module, -40 to 85º, RoHS, SMT
- 350μH LAN 10/100 Base-T Pulse Transformer 1CT: 1CT Transmitter, 1CT: 1CT Receiver Surface Mount
Application: LAN 10/100 BaseT
Number of ports: Single
Operating temperature range: -40 to 85ºC
Profiles: Standard
Category: Transformer, Transformer, Pulse
Assembly: surface mounting
Size / Dimensions: L x W: 0.485 "x 0.285" (12.32mm x 7.24mm)
