Product description

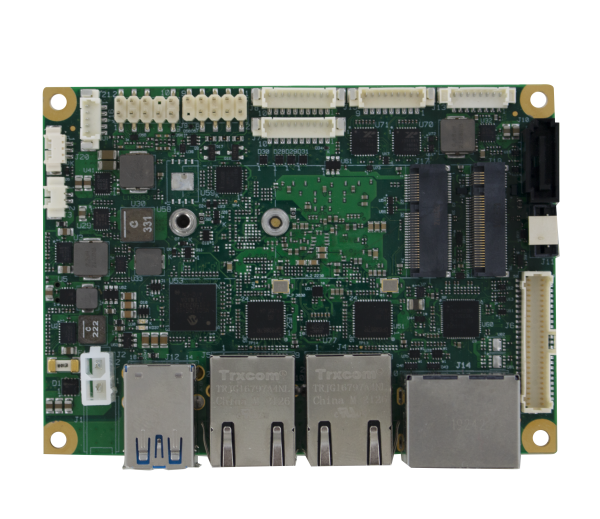

The Seco SD63-A641-1321-I4 is a factory-configured variant of the SBC-pITX-EHL Pico-ITX SBC (D63 product family) featuring an Intel Atom x6425RE quad-core processor, 16 GB LPDDR4 RAM, 64 GB eMMC storage and TPM 2.0 for the industrial temperature range.
SBC-pITX-EHL Overview
The SBC-pITX-EHL is based on the Intel Atom X6000E series as well as Intel Pentium and Celeron N/J series processors (codename Elkhart Lake) and uses the compact Pico-ITX form factor measuring 100 x 72 mm. The SD63-A641-1321-I4 variant is equipped with the Intel Atom x6425RE quad-core processor (1.9 GHz, 12 W TDP, with IBECC, integrated heat spreader and Time Coordinated Computing) along with 16 GB soldered-down LPDDR4 memory with in-band ECC and 64 GB eMMC storage.
Configuration & Features
- Intel Atom x6425RE quad-core processor, 1.9 GHz (no turbo), 12 W TDP, with IBECC, integrated heat spreader and Time Coordinated Computing (Industrial)
- 16 GB soldered LPDDR4 RAM with in-band ECC, 64 GB eMMC storage
- Integrated Intel Gen11 UHD graphics with up to 32 execution units, up to 3 independent displays, LVDS interface with 3.3 V LCD supply voltage
- 2x Gigabit Ethernet with precision time protocol (IEEE 1588), M.2 slot for WWAN modems (shared with SATA) and a separate M.2 slot for WLAN/Bluetooth
- Dual SuperSpeed USB 10 Gbps Standard-A connector, 2x USB 2.0 pin header, 2x RS-232/422/485, 2x CAN, 8x GPIO, I2C and SPI
- On-board TPM 2.0, vertical power input minifit connector, +12 V DC supply
- Manufacturer-rated industrial temperature range (-40 °C to +85 °C, measured at the SECO standard heatspreader)
Typical Applications
With its compact Pico-ITX form factor and industrial temperature range, the SBC-pITX-EHL is suited for space-constrained embedded applications in industrial environments. Additional single board computers and accessories are listed under Single Board Computers (SBC).
Note for Procurement
The SD63-A641-1321-I4 configuration (16 GB RAM, 64 GB eMMC, industrial temperature range) corresponds to the factory build listed by Seco in the current distributor price list. Please confirm current availability and lead times directly.
Contact our team to request availability, samples and project pricing for the Seco SD63-A641-1321-I4.
