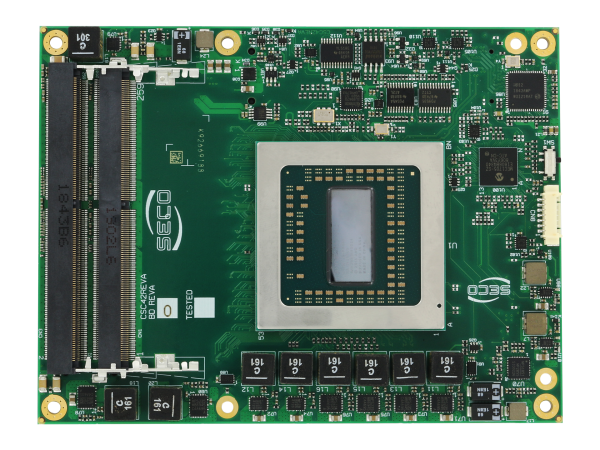

SOM-COMe-BT7-E3000 COM Express Module – Seco MC42-2002-1110-C1-V

The SOM-COMe-BT7-E3000 is a COM Express module (Rel. 3.0, Basic Type 7) from Seco with manufacturer part number MC42-2002-1110-C1-V, fitted with an AMD EPYC Embedded 3201 (eight cores, single thread, 1.5 GHz base clock, boost up to 3.1 GHz, 16 MB L3 cache, 30 W TDP) for the commercial temperature range.

SOM-COMe-BT7-E3000 Overview

The module belongs to the COM Express Type 7 series COMe-C42-BT7 (internally THEBE - C42) and is built for connectivity: networking and connectivity are improved with the 4x 10GBASE-KR interfaces + 1x 1GbE port with NC-SI and the 4 USB 3.1; 24x PCI-e Gen3 lanes, and the performance is enhanced by the four DDR4 SO-DIMM slots supporting DDR4-2666 memory with ECC, up to 128GB. The specific MC42-2002-1110-C1-V variant is fitted, per the manufacturer, with the AMD EPYC Embedded 3201 processor.

Configuration & Features

• Processor: AMD EPYC Embedded 3201, Eight Core Single Thread @ 1.5GHz (3.1 Boost), 16MB L3 shared Cache, TDP 30W
• Memory: four DDR4 SO-DIMM slots for DDR4-2666 memory with ECC support, up to 128 GB
• Networking: 1x Gigabit Ethernet via Intel I210 controller with NC-SI plus 4x 10GBASE-KR interfaces, directly managed by the SoC
• Interfaces: 4x USB 3.1, 24x PCIe Gen3 lanes, 2x SATA Gen3 channels, 2x UARTs (16C550-compatible), SPI, SM Bus, LPC bus
• Security: optional on-board TPM 2.0, AMD Secure Processor for crypto co-processing, hardware validated boot, secure memory encryption and secure encrypted virtualization
• MC42-2002-1110-C1-V variant: 4-wire fan connector, commercial operating temperature range 0 °C to +60 °C
• Dimensions: 125 x 95 mm in the COM Express Basic form factor

Typical Applications

The COM Express Type 7 module suits compute-intensive edge and networking applications, for example in Network Infrastructure, 5G & Edge AI or more broadly in Embedded Computing.

Note for Development

Seco offers matching accessories for the SOM-COMe-BT7-E3000 such as passive and active cooling solutions (e.g. MC42-DISS-1-PK, MC42-DISS-3-PK) as well as the DEV-KIT-COMe-T7 development kit. Compatibility information should be understood as the manufacturer's own specification.

For availability, sample requests and design-in support for the SOM-COMe-BT7-E3000, contact our team.
