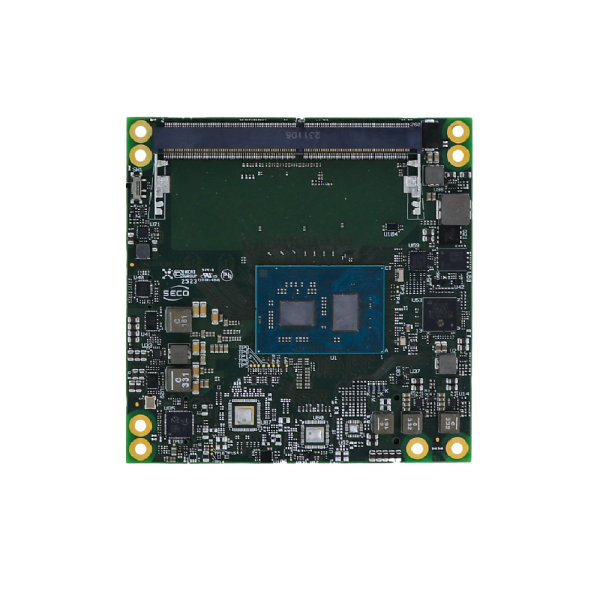

SOM-COMe-CT6-EHL COM Express Module – Seco ME37-2001-2122-C1

The SOM-COMe-CT6-EHL is a COM Express® 3.1 Type 6 Compact module by Seco with the official manufacturer part number ME37-2001-2122-C1, equipped with an Intel® Pentium® J6426 processor (codename Elkhart Lake) for IoT and embedded applications.

SOM-COMe-CT6-EHL Overview

COM Express® 3.1 Type 6 Compact Computer on Module (CoM) with Intel Atom® x6000E Series, Intel® Pentium® and Celeron® N and J Series processors (formerly Elkhart Lake), part of the E37 product family. This specific variant, ME37-2001-2122-C1, is populated with the Intel® Pentium® J6426.

Configuration & Features

• Intel® Pentium® J6426 Quad Core @ 2.0 GHz (3 GHz Turbo), 10 W TDP, commercial temperature range
• Integrated Intel® Gen11 UHD graphics controller with up to 32 EU, two DDR4 SO-DIMM slots supporting DDR4-3200 IBECC memory up to 32GB
• Connectivity per datasheet: 1x NBase-T interface with up to 2.5GbE, up to 4x USB 3.2 Gen 1, up to 8x USB 2.0, and up to 6x PCIe Gen3 lanes
• Variant ME37-2001-2122-C1: no LVDS bridge, eDP out, USB 3.0 hub, SER#1 output UART, TPM SLB 9670 (TPM 2.0) and LPC bus
• Form factor: COM Express® Compact, Type 6 pinout, dimensions 95 x 95 mm per datasheet
• Supported operating systems per datasheet: Microsoft Windows 10 IoT Enterprise 2019/2021 LTSC and Yocto Kirkstone

Typical Applications

Per the manufacturer datasheet, the module targets industrial automation, digital signage, medical, transportation, and energy & utilities applications. Related modules and use cases can be found in the System-on-Modules (SOM/CoM) category and in the Industry solutions area.

Note for Development

Seco offers the E37 product family in several processor and configuration variants, including an eDP-to-LVDS bridge option or a different temperature range. For design-in, reference the exact manufacturer part number ME37-2001-2122-C1, as populated options such as TPM, USB 3.0 hub, or LPC/eSPI bus differ between variants.

For availability, samples, and technical questions on the SOM-COMe-CT6-EHL, contact our team.
