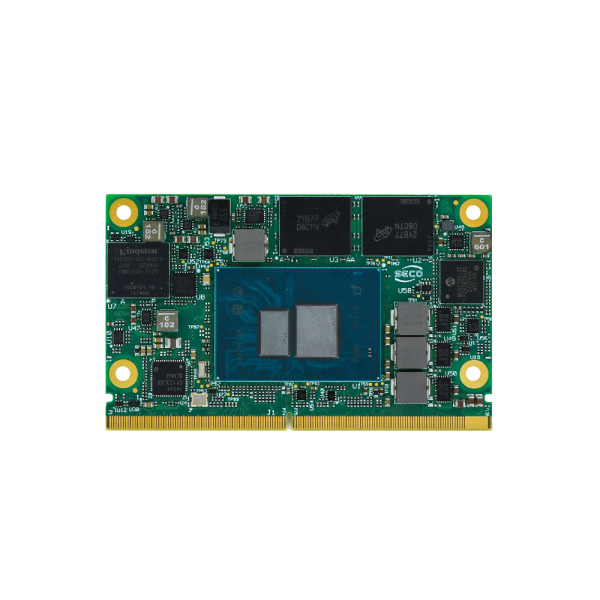

SOM-SMARC-ADL-N SMARC Module – Seco RE08-6842-2121-C3

The SOM-SMARC-ADL-N RE08-6842-2121-C3 is a SMARC® Rel. 2.1 compliant computer-on-module from Seco featuring an Intel® Core™ i3-N305 processor (codename Alder Lake-N), 16 GB of LPDDR5 memory and 64 GB of eMMC flash storage for edge computing and multimedia applications.

SOM-SMARC-ADL-N Overview

The SOM-SMARC-ADL-N series is based on Intel Atom® x7000E Series processors, the Intel® Core™ i3 processor, and Intel® Processor N Series (codename Alder Lake-N). The RE08-6842-2121-C3 variant is equipped with the top-tier processor of the series, the Intel® Core™ i3-N305, together with the maximum available memory configuration.

Configuration & Features

• Intel® Core™ i3-N305, 8 cores @ 1.8 GHz (up to 3.8 GHz Turbo), 15 W TDP, Intel® UHD Graphics with 32 Execution Units
• 16 GB LPDDR5-4800 soldered-down memory with IBECC (in-band error correction code)
• 64 GB onboard eMMC 5.1 flash storage plus 1x external SATA 3.2 channel
• 2x Gigabit Ethernet (NBase-T, 2.5GbE capable) via Intel® i225 controllers with Time-Sensitive Networking support
• Video: LVDS (dual channel) plus 2x DP++ (DisplayPort 1.4 / HDMI® 2.1), up to 3 independent displays each up to 4K60
• 4x PCIe Gen3 lanes without SERDES (channel aggregation 4x1 or 1x2 + 2x1)
• TPM SLB 9670 (2.0), 1x general-purpose SPI, up to 14x GPIO
• Operating temperature 0 °C to +60 °C (commercial version), dimensions 50 x 82 mm

Typical Applications

The module suits compute-intensive edge applications with multiple displays, such as industrial vision and edge AI as well as general system-on-module (SOM/CoM) designs.

Note for Procurement

According to the manufacturer, this SMARC series is currently in early-access status; samples can be requested through the regular Seco sales channels. Availability and lead times are project-dependent.

For availability, samples and project pricing on this module, contact Atlantik Elektronik.
