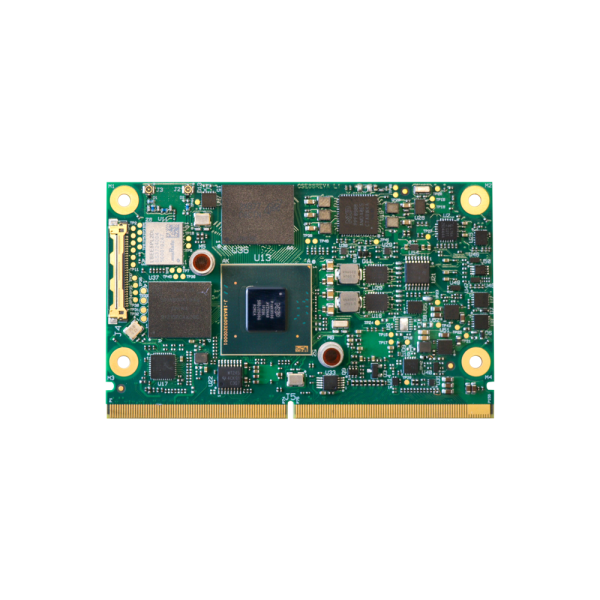

SOM-SMARC-MX95 SMARC Computer-on-Module – Seco RE88-5121-4140-C2

The SOM-SMARC-MX95 is a SMARC® Rel. 2.1.1 computer-on-module from Seco built around the NXP i.MX 95 applications processor; the configuration covered here carries the Seco manufacturer part number RE88-5121-4140-C2: NXP iMX9596, 4 GB LPDDR5 RAM, 32 GB eMMC, 1x Gigabit Ethernet, TPM and 2x PCIe for the commercial temperature range.

SOM-SMARC-MX95 overview

For ordering purposes, Seco refers to the module by its base code "E88". As part of the SMARC module family, it follows a compact computer-on-module standard aimed at projects that need high performance combined with low power usage, supporting up to four display interfaces and two Ethernet interfaces at module level.

Configuration & Features

• CPU: NXP i.MX 95 with 6x Arm Cortex-A55 @2 GHz, Arm Cortex-M33 @333 MHz and Arm Cortex-M7 @800 MHz, NPU delivering 2.0 TOP/s neural-network performance
• Graphics: 2D/3D GPU with ML accelerator up to 2.0 TOP/s
• Memory: up to 16 GB LPDDR5 at module level; this configuration (RE88-5121-4140-C2) ships with 4 GB LPDDR5 RAM and 32 GB eMMC
• Interfaces in this configuration: HDMI output, CSI camera interface, USB hub, 1x Gigabit Ethernet and 2x PCIe
• Serial ports: 2x UART (4-wire), 2x UART (2-wire)
• Power supply: +5VDC ± 5% and +3.3V_RTC; operating system Linux/Yocto
• Operating temperature of this variant: 0 to +60°C (commercial range); dimensions 82 x 50 mm

Typical application areas

Seco highlights AI-driven surveillance and smart-city use cases such as people counting for the SOM-SMARC-MX95, where MIPI CSI-2 camera interfaces, HDMI/LVDS display outputs, PCIe Gen3 x1, USB and Gigabit Ethernet support connecting multiple sensors and networks into larger, distributed monitoring systems. Learn more about modules in this category under System-on-Modules (SOM/CoM) and about edge-AI projects under Industrial Vision & Edge AI.

Note for procurement

Seco offers the SOM-SMARC-MX95 under base code "E88" in several standard configurations that differ in RAM, eMMC, Ethernet count and temperature range; RE88-5121-4140-C2 is the commercial-temperature variant with 4 GB RAM, 32 GB eMMC and 1x Gigabit Ethernet. Samples are provided by the manufacturer on request. For availability, lead times and project pricing, please reach out via our contact page.
