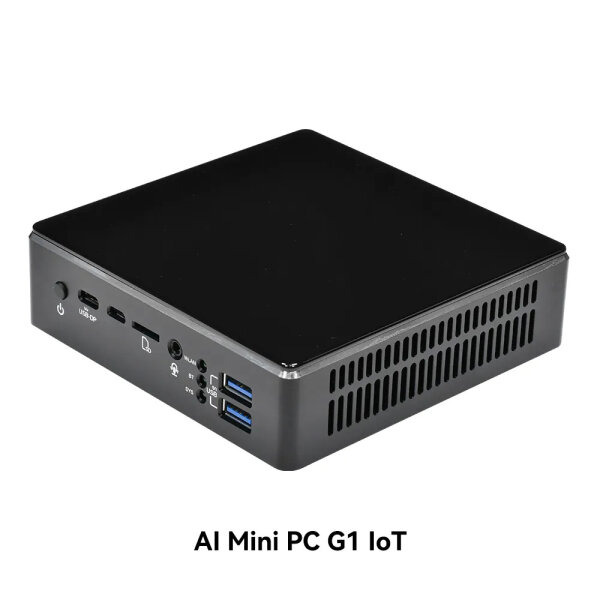

Thundercomm - AI Mini PC G1 IoT

The Thundercomm AI Mini PC G1 series consists of the G1 Elite, G1, G1 IoT, and G1 IoT Fanless, offering high-performance and compact design.

The G1 Elite and G1 have an NPU computing power of 45 TOPS, are compatible with Qualcomm Snapdragon X series chips, and support on-device generative AI with over 13 billion parameters. They are equipped with Windows 11 Home and rich interfaces like USB Type-A, USB4 Type-C, HDMI, and Ethernet, and support high-speed wireless connections. The G1 is suitable for general customers with AI needs, budget-sensitive customers, and scenarios like AI art generation, NLP, and intelligent security surveillance. The G1 Elite is for scenarios with high requirements for CPU, GPU, and NPU performance, such as 3D modeling, high-end game development, and medical imaging and diagnostics.

The G1 IoT and G1 IoT Fanless are powered by the Qualcomm QCS 6490 platform with 12.5 TOPS of NPU computing power, pre-installed with Windows 11 IoT. They have a fan/fanless design, are suitable for IoT control, automation control, and smart manufacturing production lines, and the support period is extended until 2036.

Specifications

• QCS6490

• Windows 11 IoT
• Android/Linux (Under development)

• Qualcomm AI Engine, up to 13 TOPS

• 8GB LPDDR4 onboard

• 128GB onboard (256GB optional)

• 1 x Wi-Fi 6E/6, BT5.3/BT5.2 Combo (M.2 2230 E key)
• • 2 x Wi-Fi antenna

• 1 x 3.5mm Audio combo jack (MIC/Earphone)
• 2 x USB-A 3.1 Gen1
• 1 x USB Type-C 3.1 Gen1 (support Display port and OTG)
• 1 x Micro USB (for system debug)
• 1 x Micro SD Card slot

• 1 x HDMI 2.0
• 1 x RJ-45 2.5G Ethernet
• 2 x USB-A 3.1 Gen1
• 1 x USB Type-C 3.1 Gen1 (Only Host)
• 1 x RS485, RS232

• 3 x Green LED
• 1 x Power key, 1 x EDL key
• 1 x CR2032 RTC Battery
• 1 x 4PIN connector for FAN
• 1 x DIP connector for JTAG

• AI Mini PC G1 IoT: 120 mm x 120 mm x 34 mm
• AI Mini PC G1 IoT Fanless: 120 mm x 120 mm x 26 mm

• DC IN 12v 5A at rear side
