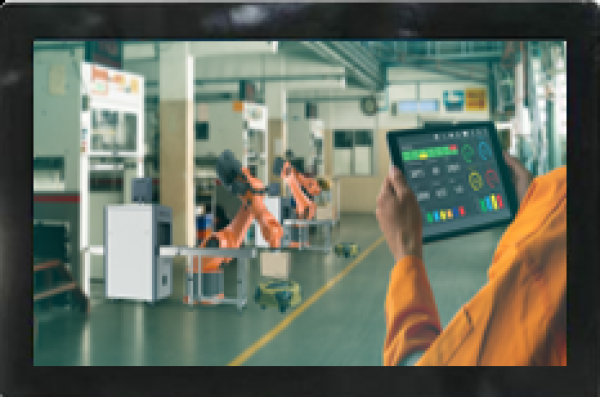

10.1" Industrial Touch Display – Built for Harsh Environments
This 10.1-inch industrial display module is engineered for extreme conditions where consumer displays fail. With optical bonding, high brightness and a wide operating temperature, it is ideal for industrial HMIs, outdoor equipment, vehicle systems and rugged embedded devices.

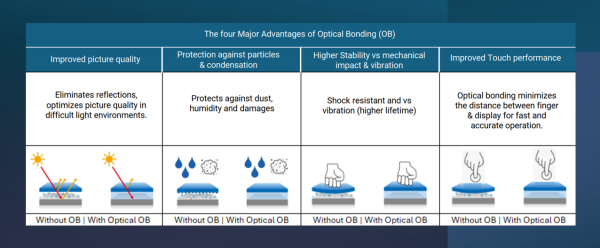

Optical Bonding for Maximum Performance
Optical bonding provides significant benefits:
- Zero reflection even in bright environments
- No fogging or condensation
- Enhanced shock & vibration resistance
- Improved touch accuracy thanks to reduced air gap
- Superior durability for long-term industrial use
Engineered for Extreme Temperatures
The display remains fully operational between -30°C and +80°C, making it suitable for outdoor terminals, cold storage systems, heavy machinery and mobile applications.
Developer-Friendly Features
- Modular design for fast integration
- Driver, MCU and calibration support
- Custom mechanical & electrical configurations available
- Reduced development time & maintenance costs
Typical Applications
- Industrial control systems
- Rugged HMIs & panel PCs
- Outdoor terminals & kiosks
- Vehicles, logistics & transportation
- Medical devices & embedded systems
Specifications
| Feature | Specification |
|---|---|
| Display Size | 10.1" |
| Resolution | 1280 x 800 (WXGA) |
| Technology | IPS – wide viewing angle |
| Touch | PCAP (capacitive) |
| Brightness | 1000 cd/m² |
| Optical Bonding | Yes |
| Operating Temp | -30°C to +80°C |
| Protection | Dust, moisture & condensation resistant |
| Shock/Vibration | High industrial-grade resistance |
| Customization | Interfaces, frame, coatings available |
FAQ – Frequently Asked Questions
What is the benefit of optical bonding?
It eliminates reflections, prevents fogging, improves durability and enhances touch precision.
Is this display sunlight readable?
Yes, the 1000 cd/m² brightness and IPS panel ensure excellent visibility outdoors.
What temperatures can it operate in?
It operates reliably between -30°C and +80°C.
Can the design be customized?
Yes, interfaces, frames and coatings can be adapted to your project.
Is it suitable for vibration-heavy environments?
Yes, optical bonding significantly increases shock and vibration resistance.
