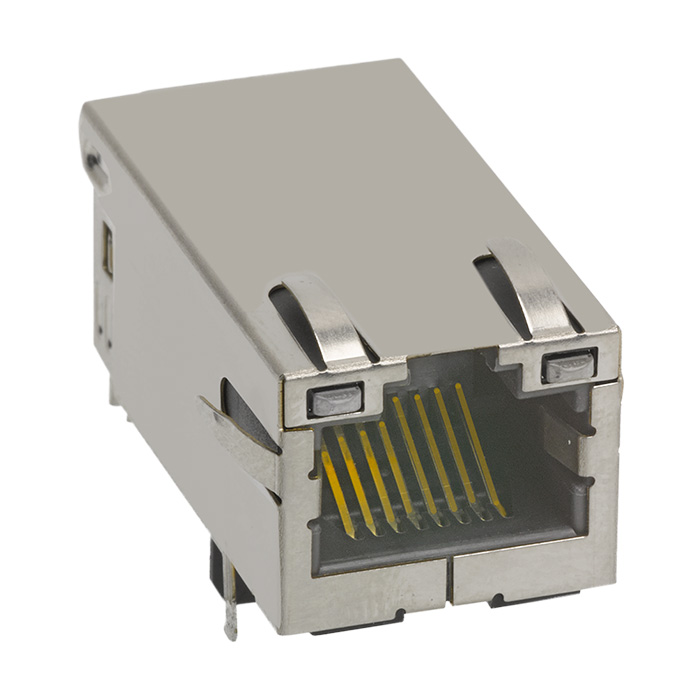

Low Profile, Mid-Plane Mounted, Single Port Magjack® ICM The MagJack® brand of low profile ICMs support 10/100Base-T, 1GBase-T and 10GBase-T Ethernet applications.  This product type is aimed at customers who need very low profile height connectors or want to mount mezzanine cards above these connectors and are limited by height. As systems become smaller and implement faster speeds, the Ethernet connectors must adapt and become smaller and faster.  This ICM product family combines small form factor with speed to provide ultimate combination of both allowing customers to put Ethernet ports where never possible before.

Features & Benefits

• Low profile height, less than .400” off the PCB
• High speed capable, from 10/100BT up to 10GBT
• Can be used in low profile applications
• Can be used in half U height applications
• Compatible with up to OCP 3.0 mechanical card requirements

Applicaitons

• Blade servers or cards
• Network Interface cards
• Laptop computers
• Storage systems
• Mezzanine cards

Specifications

• Meets all IEEE 802.3 10/100Base-T thru 10GBase-T electrical requirements including RL, IL, Hi-pot and Common Mode parameters
• 100% hi-pot tested in production
• Comes with many different LED color combinations and options
• 50 micro-inches of gold plated contacts as required by the TIA 1096/FCC 47, Part 68.
• Lead-free wave-solder compatible, with some IR reflow compatible designs
• UL recognized
• RoHS 6/6 compliant
