Product description

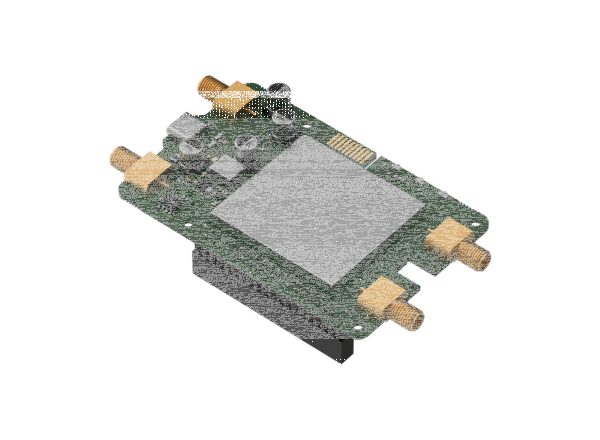

5G RedCap HAT for compact embedded platforms
The Teltonika Calyx 5G Red Cap / EBD070 adds integrated cellular connectivity to systems based on Raspberry Pi 4, Raspberry Pi 5, and Rubik Pi. Designed as a HAT+ expansion board, it enables direct 5G RedCap connectivity on the host platform for embedded and technical integration projects.
Host-level integration
The board provides a 40-pin GPIO header and a USB Type-C interface for integration into existing hardware designs. Power can be supplied either through USB Type-C or through the 40-pin header, supporting compact system layouts where power input, data connection, and carrier board integration need to be closely aligned.
5G RedCap with additional LTE support
The EBD070 variant supports 5G NR SA in a RedCap-oriented design and also includes 4G LTE support. This makes the board suitable for applications that require modern cellular connectivity on a compact hardware platform while maintaining classic host-side integration through GPIO and USB.
Interfaces and control for embedded projects
GPIO functions are available for PWR_KEY, wake-up, and reset control of the modem. The board also includes a PCM digital interface, a 4FF Nano SIM slot, two SMA connectors for mobile antennas, and status LEDs for power and network indication. Its compact board format supports installation in space-constrained embedded systems.
Technical Specifications
- Manufacturer: Teltonika Networks
- Product: Calyx 5G Red Cap / EBD070
- Product type: Embedded Cellular Raspberry Pi HAT+
- Host platforms: Raspberry Pi 4, Raspberry Pi 5, Rubik Pi
- Cellular standards: 5G NR SA, 4G LTE-FDD, 4G LTE-TDD
- Data rates: 5G Sub-6 GHz SA up to 223 Mbps DL / 123 Mbps UL; 4G LTE Cat 4 up to 195 Mbps DL / 105 Mbps UL
- 3GPP Release: Release 17
- Power supply: USB Type-C 5 VDC or via 40-pin header with 5 VDC and 3.3 VDC
- USB: USB 2.0
- GPIO: 40-pin GPIO header
- GPIO modem control: PWR_KEY, modem wakeup, modem reset
- Modem wakeup logic: Digital Input, 0 to 3.3 V, active Low
- PCM: PCM digital interface, 0 to 3.3 V logic level
- SIM: 1x Nano SIM slot (4FF), push-pull
- Antenna connectors: 2x SMA for mobile
- Status LEDs: 1x Power, NET IND, NET STAT
- Dimensions (W x H x D): 56 x 23.11 x 95.48 mm
- Weight: 57 g
- Operating temperature: -40 °C to 75 °C
- Approvals: CE, UKCA, EAC, UCRF, FCC, ISED (IC), RCM, CB, WEEE
- Region / available version: Global
- Supported 5G bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n70, n71, n77, n78, n79
- Supported 4G LTE-FDD bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B66, B70, B71
- Supported 4G LTE-TDD bands: B34, B38, B39, B40, B41, B42, B43, B48
- Standard package: Calyx, Quick Start Guide, PCB Connector, USB Type-C to USB Type-A cable, Fasteners Kit
- HS Code: 851762
- HTS: 8517.62.00
Application Areas
- 5G RedCap integration for Raspberry Pi and Rubik Pi based embedded systems.
- Compact edge systems and embedded gateways with Nano SIM based WAN connectivity.
- Industrial and automation solutions using GPIO-controlled modem logic.
- Telemetry and remote access applications with external mobile antennas.
- System designs where 5G connectivity needs to be integrated directly on the host platform.
- Deployments in environments with extended temperature requirements and limited installation space.
Technical Specifications
- Manufacturer: Teltonika Networks
- Product: Calyx 5G Red Cap / EBD070
- Product type: Embedded Cellular Raspberry Pi HAT+
- Host platforms: Raspberry Pi 4, Raspberry Pi 5, Rubik Pi
- Cellular standards: 5G NR SA, 4G LTE-FDD, 4G LTE-TDD
- Data rates: 5G Sub-6 GHz SA up to 223 Mbps DL / 123 Mbps UL; 4G LTE Cat 4 up to 195 Mbps DL / 105 Mbps UL
- 3GPP Release: Release 17
- Power supply: USB Type-C 5 VDC or via 40-pin header with 5 VDC and 3.3 VDC
- USB: USB 2.0
- GPIO: 40-pin GPIO header
- GPIO modem control: PWR_KEY, modem wakeup, modem reset
- Modem wakeup logic: Digital Input, 0 to 3.3 V, active Low
- PCM: PCM digital interface, 0 to 3.3 V logic level
- SIM: 1x Nano SIM slot (4FF), push-pull
- Antenna connectors: 2x SMA for mobile
- Status LEDs: 1x Power, NET IND, NET STAT
- Dimensions (W x H x D): 56 x 23.11 x 95.48 mm
- Weight: 57 g
- Operating temperature: -40 °C to 75 °C
- Approvals: CE, UKCA, EAC, UCRF, FCC, ISED (IC), RCM, CB, WEEE
- Region / available version: Global
- Supported 5G bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n70, n71, n77, n78, n79
- Supported 4G LTE-FDD bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B66, B70, B71
- Supported 4G LTE-TDD bands: B34, B38, B39, B40, B41, B42, B43, B48
- Standard package: Calyx, Quick Start Guide, PCB Connector, USB Type-C to USB Type-A cable, Fasteners Kit
- HS Code: 851762
- HTS: 8517.62.00
FAQ
FAQ
Which host platforms are supported by the Calyx 5G Red Cap / EBD070?
The HAT supports Raspberry Pi 4, Raspberry Pi 5, and Rubik Pi as host platforms.
Which cellular technologies are supported by the EBD070 variant?
The board supports 5G NR SA in a RedCap-oriented configuration as well as 4G LTE-FDD and LTE-TDD.
How is the board powered?
Power can be supplied through USB Type-C at 5 VDC or through the 40-pin header with 5 VDC and 3.3 VDC.
Which modem functions are available over GPIO?
GPIO access is provided for PWR_KEY, modem wake-up, and modem reset.
What SIM and antenna interfaces are available?
The board includes one 4FF Nano SIM slot and two SMA connectors for mobile antennas.
What operating temperature range is specified?
The specified operating temperature range is -40 °C to 75 °C.
