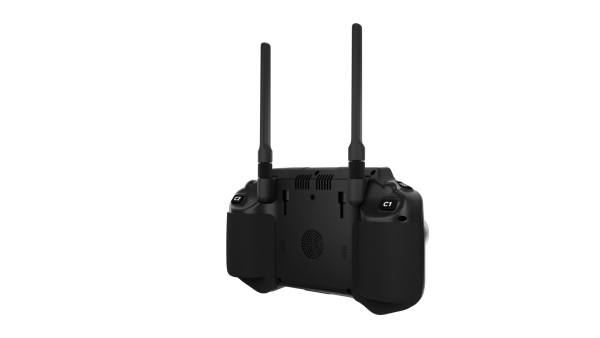

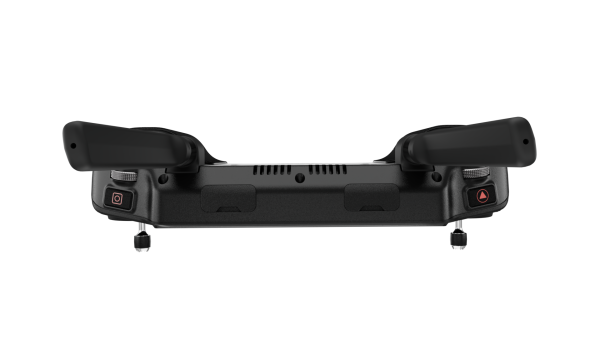

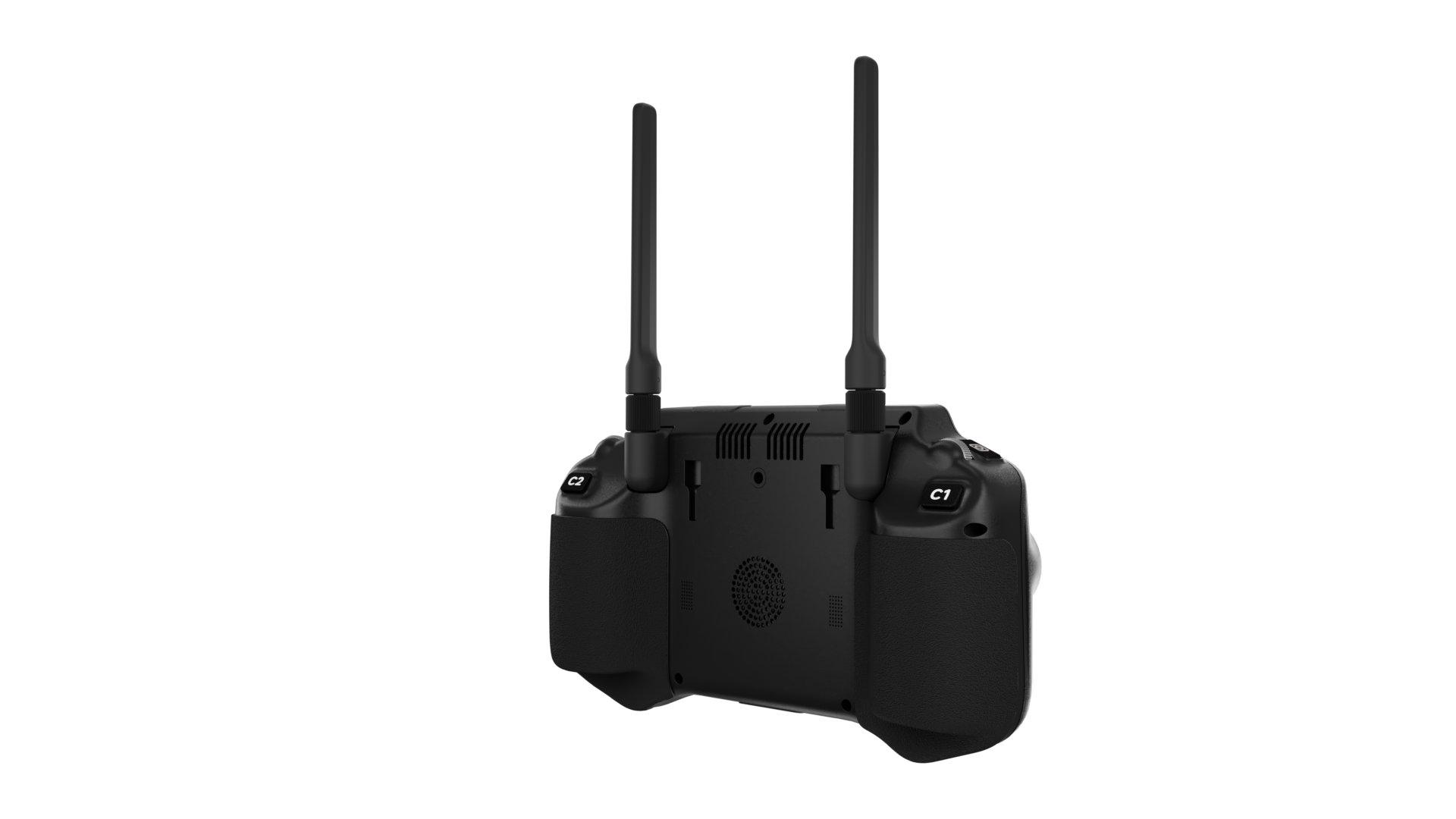

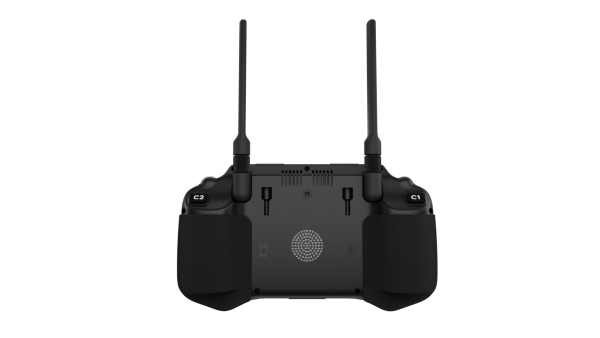

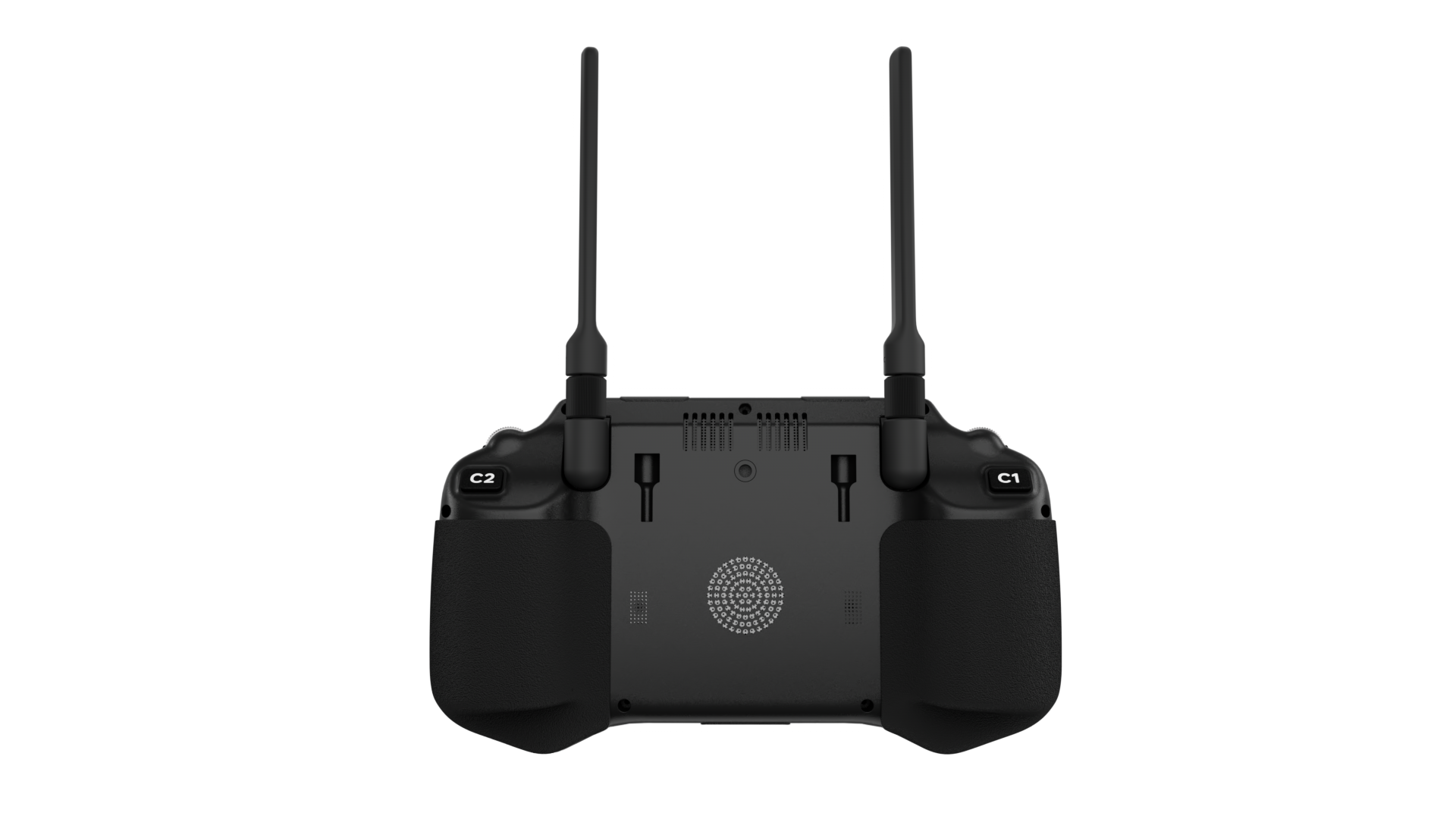

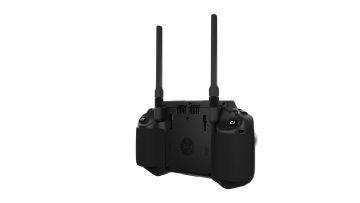

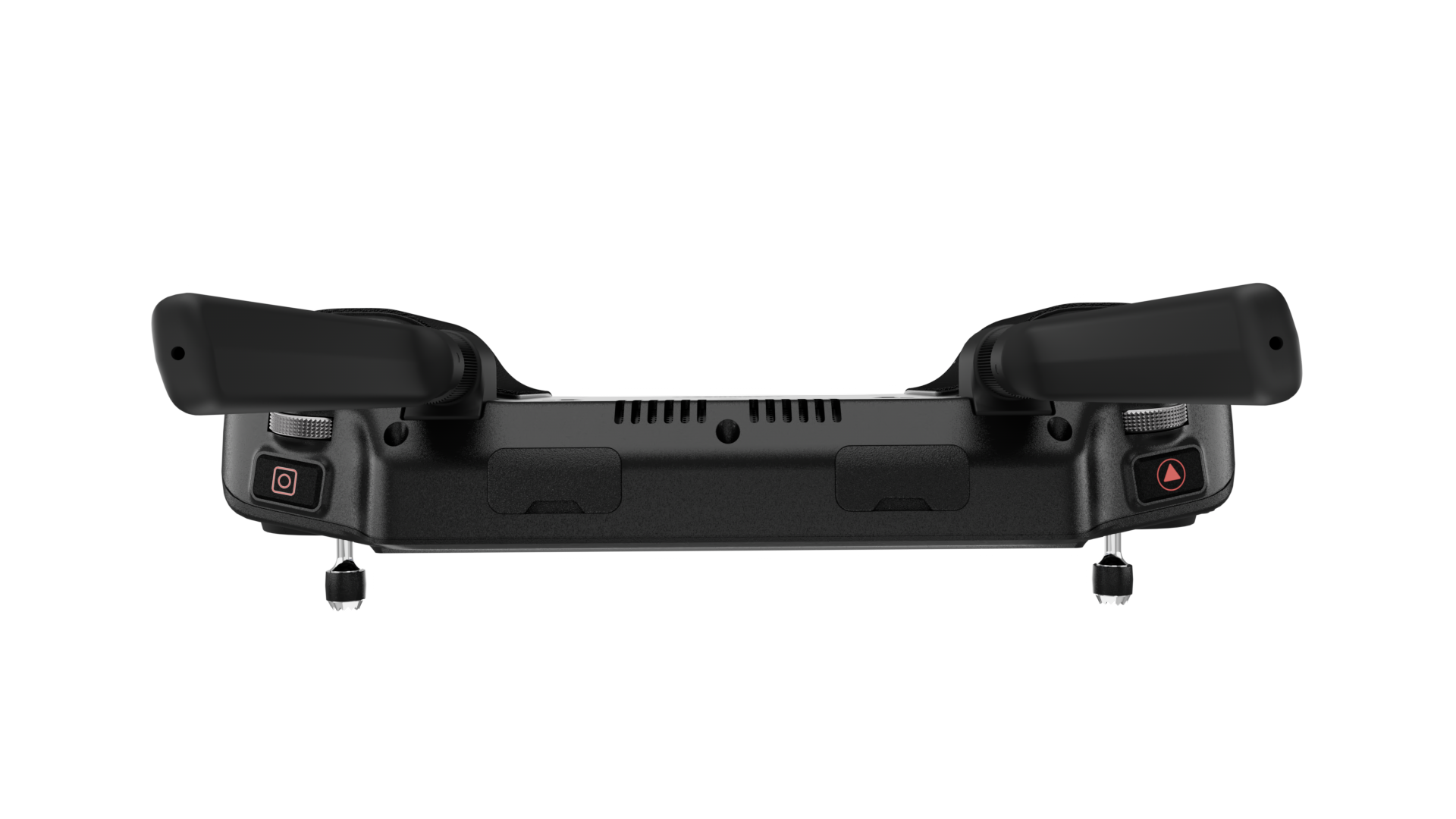

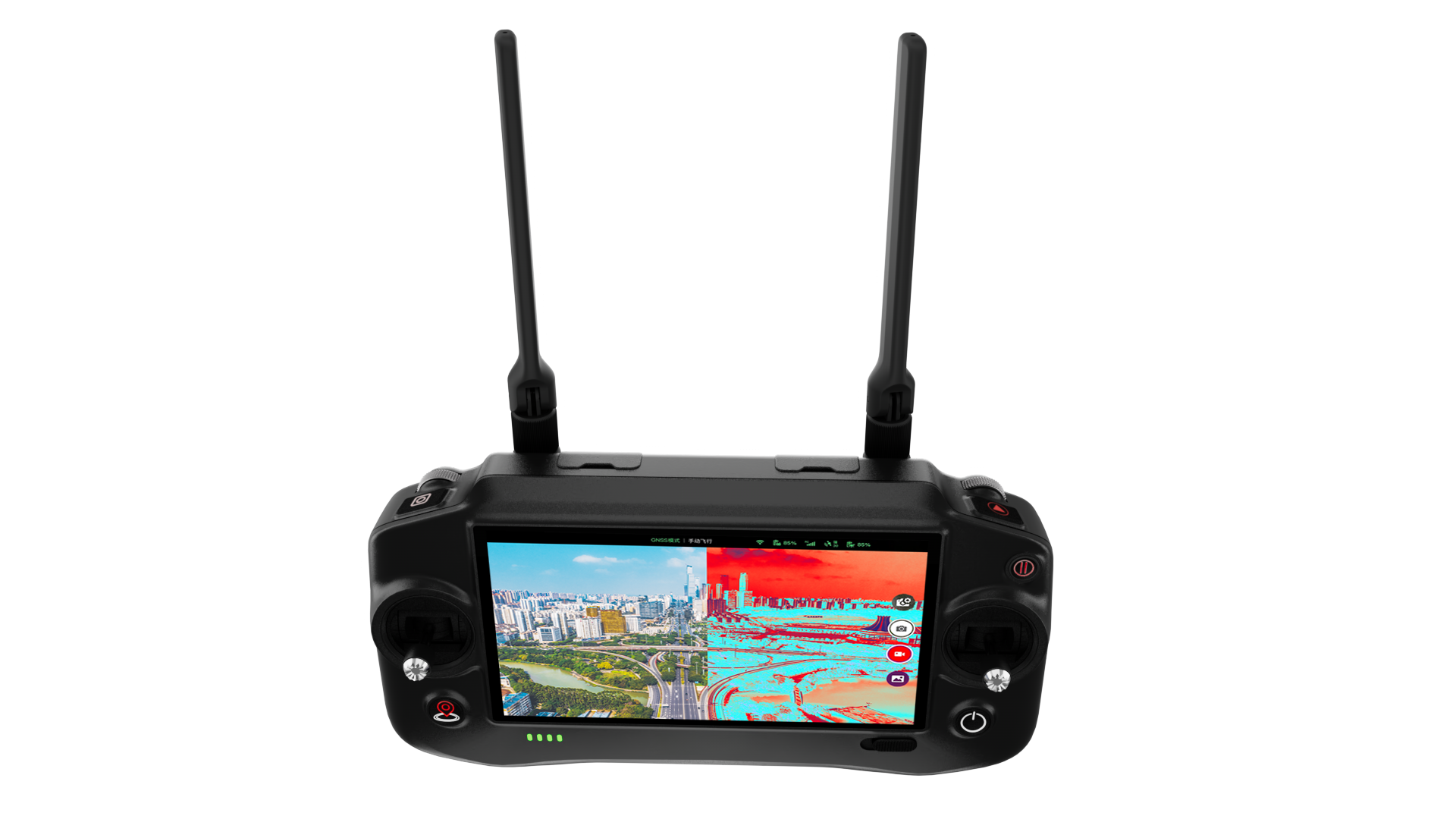

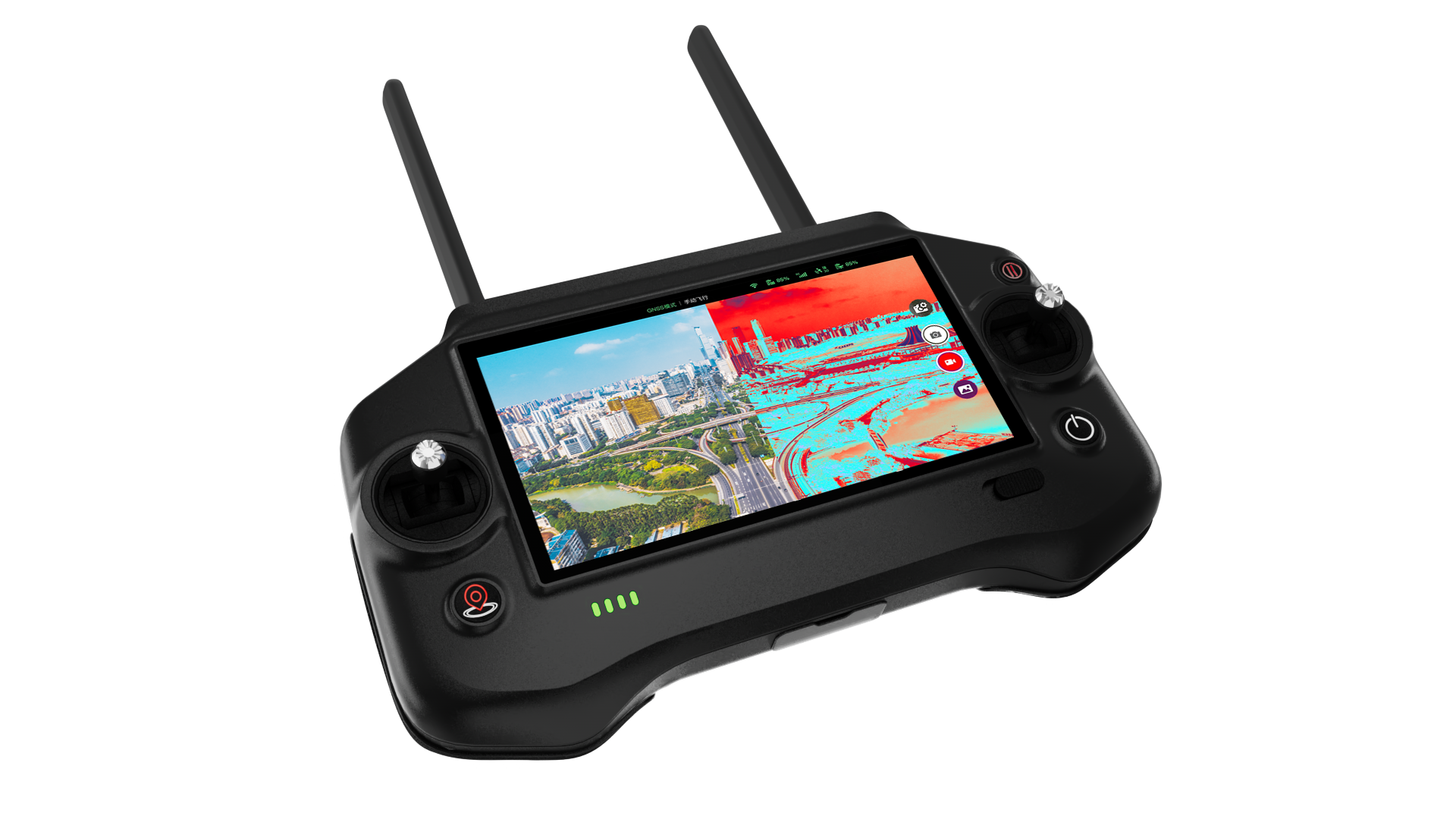

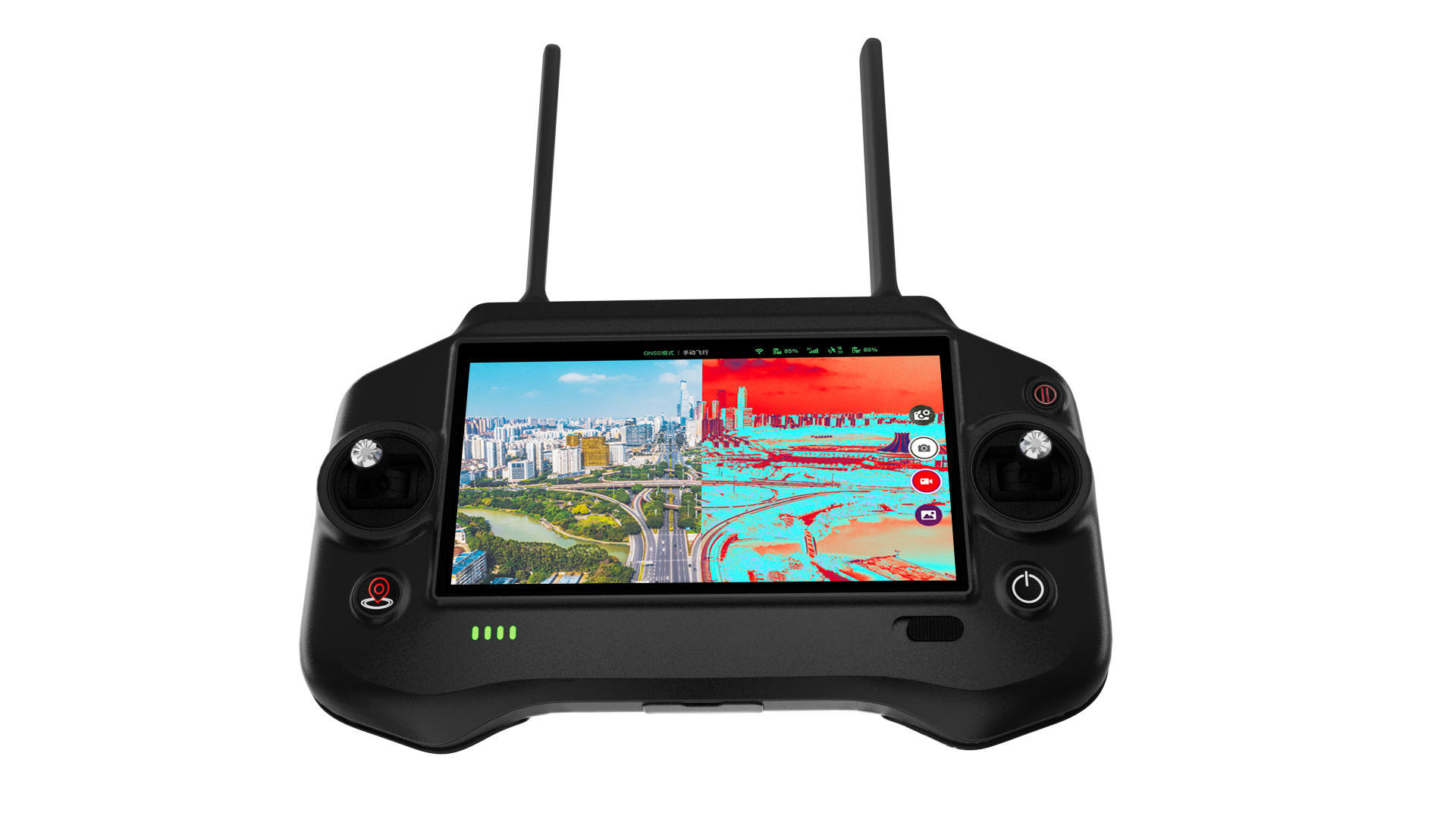

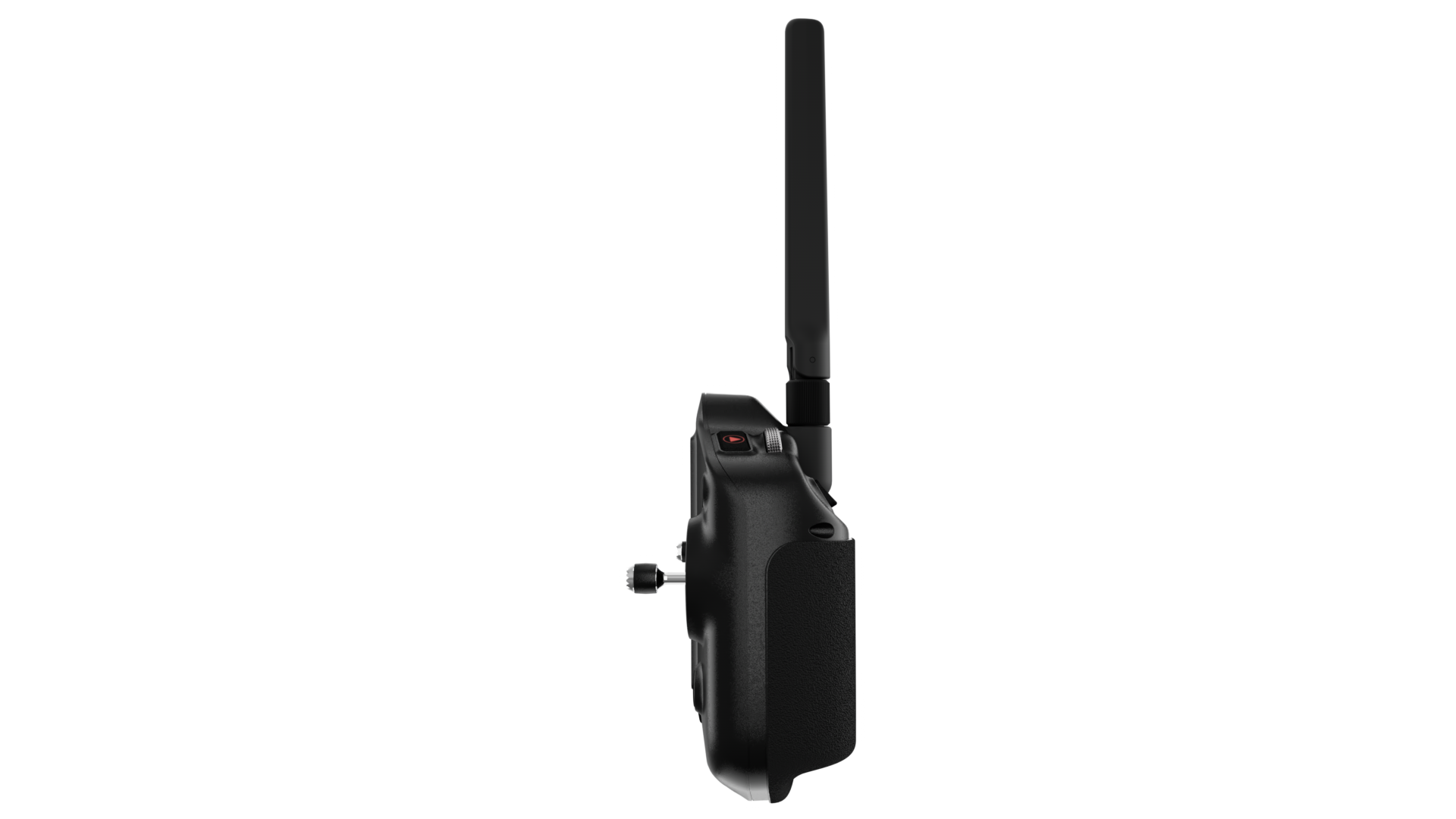

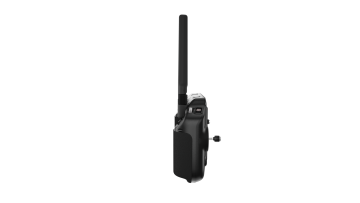

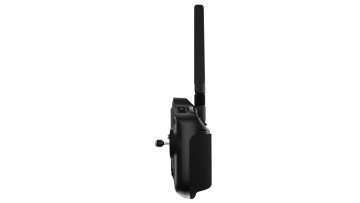

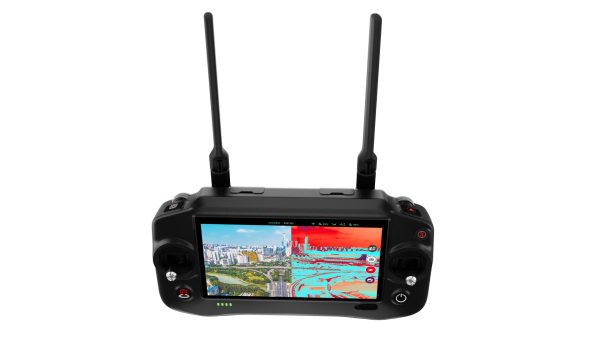

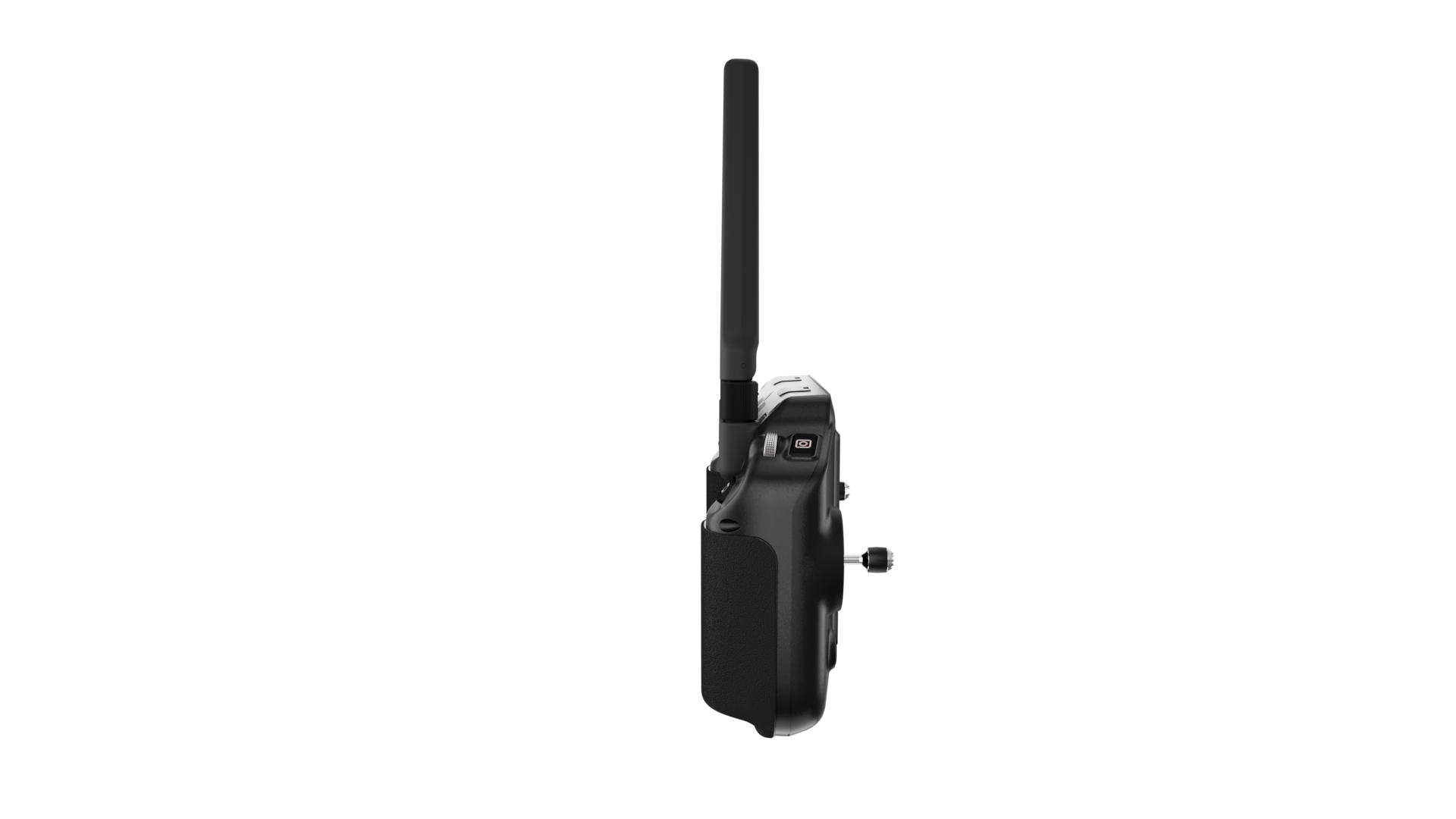

Drone Remote Controller Unit – High-Performance Edge AI Command Platform
The Drone Remote Controller Unit is a modular UAV command platform powered by a Qualcomm Dragonwing SoC. It delivers ultra-low-latency HD transmission and integrated edge AI processing for next-generation drone applications.
With a control range of up to 20 km and end-to-end latency below 50 ms, it is designed for professional UAV deployments in industrial, security and governmental environments.
Flexible Delivery Models
- Complete Unit – ready out of the box
- SKD – semi-knocked-down for regional integration
- CKD – complete knock-down for local manufacturing
Display & Control

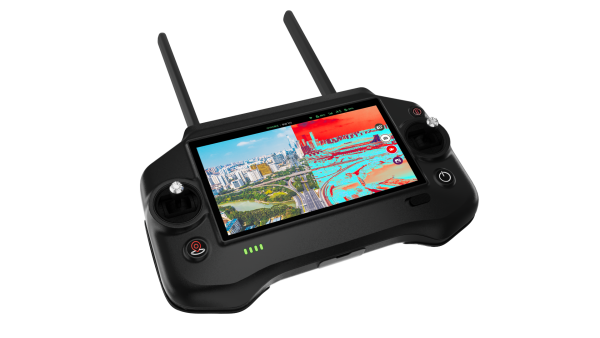

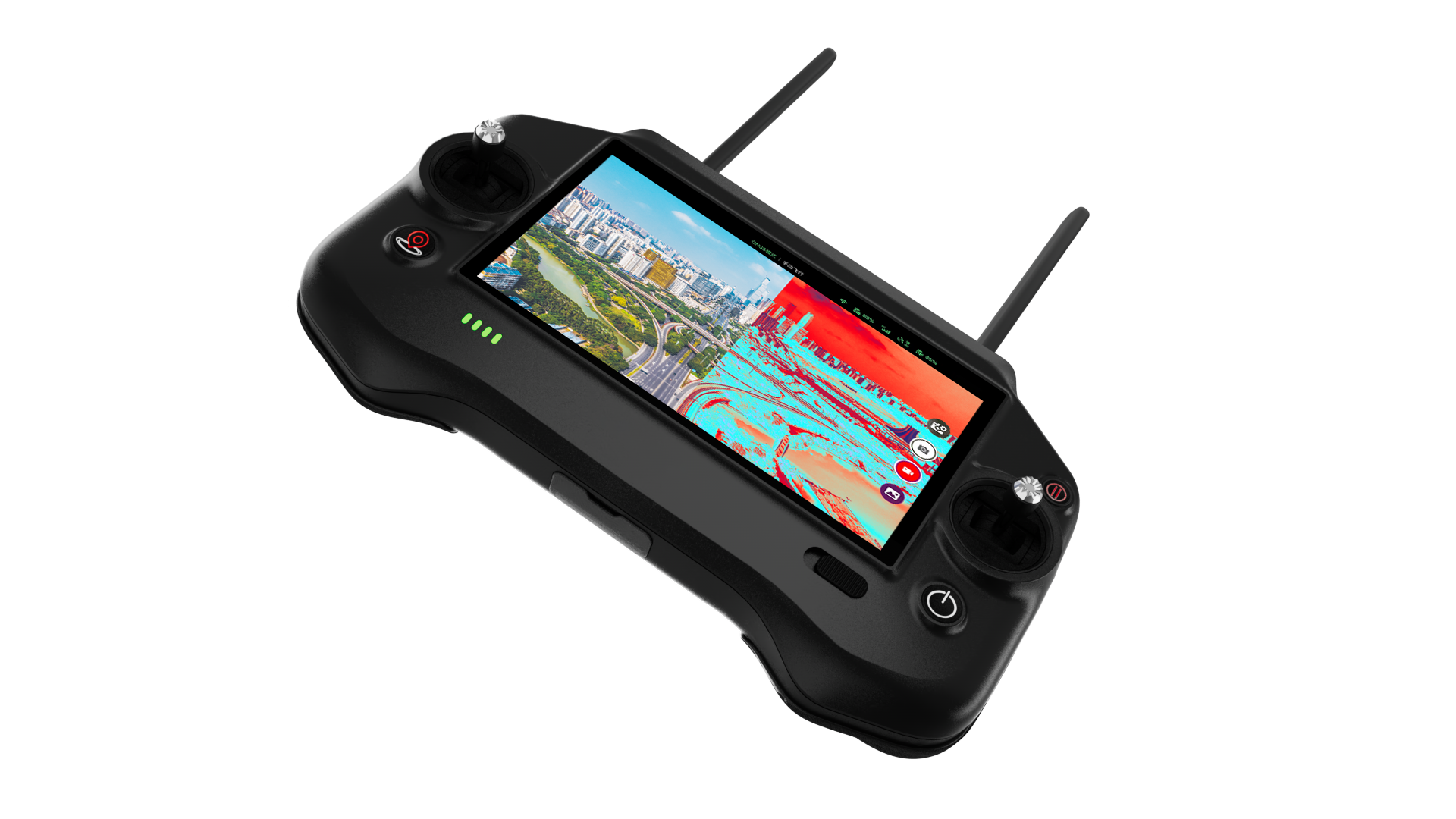

- 6.95” FHD touchscreen
- 1000 cd/m² peak brightness
- 8 programmable buttons/dials
Connectivity
- 600 MHz – 6 GHz support
- HDMI output
- USB Type-C
- MAVLink interface
| Category | Specification |
|---|---|
| SoC | Qualcomm Dragonwing |
| Control Range | Up to 20 km |
| Latency | < 50 ms |
| Supported Frequency | 600 MHz to 6 GHz |
| Video Link | Ultra long-range HD video transmission |
| Display | 6.95” touchscreen, FHD resolution |
| Brightness | 1000 cd/m² peak brightness |
| Controls | Mode 2 (US), Japanese style, Chinese style; 8 programmable buttons/dials |
| Interfaces | HDMI out, 3.5 mm audio, MAVLink serial, USB Type-C, Micro SD |
| Operating Temperature | -20°C to +70°C |
| Software Platform | Open Android platform, OTA updates |
| Integrated Apps | Flight control app (parameters, maps, camera control, attitude sphere) |
| Battery | 6000 mAh |
| Charging | Qualcomm Quick Charge 18W |
| Runtime | Up to 4 h, hot-swap supported |
| Compliance | US: UL/ETL, FCC, FAA, NRTL | EU: CE, RED, RoHS |
| Delivery Models | Complete Unit, SKD, CKD |
FAQ – Frequently Asked Questions
Which drone platforms is the controller suitable for?
It is designed for professional UAV systems including industrial inspection, public safety, and mission-oriented deployments requiring reliable long-range links and low latency.
What’s the difference between Complete Unit, SKD and CKD?
Complete Unit is ready to use out of the box. SKD ships with key modules pre-assembled for fast regional integration. CKD ships as individual parts to maximize localization, cost control, and compliance with import/export restrictions.
Can developers build their own apps on the controller?
Yes. The platform uses an open Android environment, enabling custom application development and integration.
Does it support MAVLink-based flight stacks?
Yes. A serial communication interface supporting MAVLink is available for integration with common flight control ecosystems.
Is it suitable for outdoor and harsh environments?
Yes. It supports operation from -20°C to +70°C and provides a high-brightness (1000 cd/m²) FHD touchscreen for outdoor readability.
- Only suitable for technically experienced users who are familiar with the product.
- Only suitable for the intended use.
- Improper use can lead to damage and injury.
- Observe the manufacturer's further safety instructions.
