Thundercomm - IMX577 Camera Module for C610/C410 Open Kit

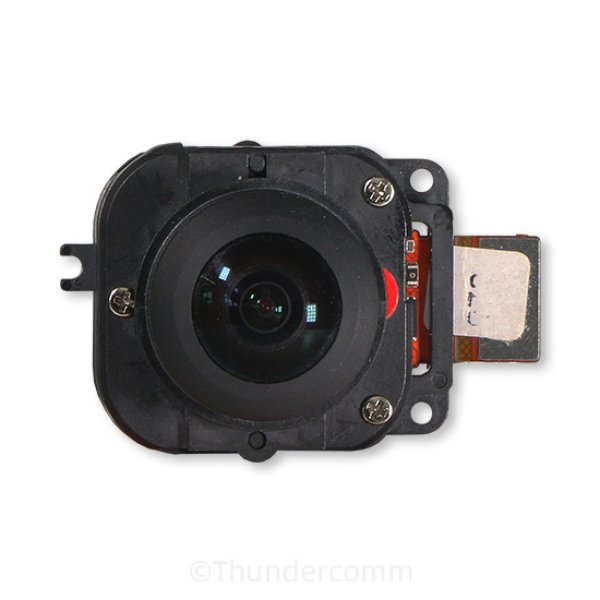

This is the Thundercomm IMX577 camera module for the C610 and C410 Open Kit.
12M Camera Module (FOV 200°) - This camera module is designed for use in mobile phones, sports cameras, car cameras, snapshot cameras, IP cameras and other small camera modules. The camera module consists of a 7.857 mm (1/2.3 type) diagonal CMOS image sensor with active pixels, a square pixel array with 12.47 million effective pixels and a F/NO. 2.08 lens, field of view angle (diagonal) 200 diagonal. In addition, it provides 10-bit/12-bit digital output for capturing high-speed and high-resolution moving images by horizontal and vertical binning and sub-sampling. Since this module realizes high sensitivity and low dark current, it also has an electronic shutter function with variable storage time.
| Item | Specification | |
| Module Size | 35.54mm(L)×24.55mm(W)x16.89mm(H) | |
| Lens Diameter | Ø20mm (Lens outside diameter(max) | |
| Field of View Angle (@IMX577) | 200° (Diagonal) 200° (Horizontal) 200° (Vertical) | |
| Focusing Range | 0.4M – INF | |
| Module Sensor | IMX577(1/2.3 Inch) | |
| Module Lens | Focal Length 1.42 mm±3% | |
| F/NO. 2.08 | ||
| Module Image Quality | Center≥ 2400 TVL @0.8M Corner (0.8F) ≥ 1800 TVL @0.8M | |
Information on product safety:
- Only suitable for technically experienced users who are familiar with the product.
- Only suitable for the intended use.
- Improper use can lead to damage and injury.
- Observe the manufacturer's further safety instructions.
