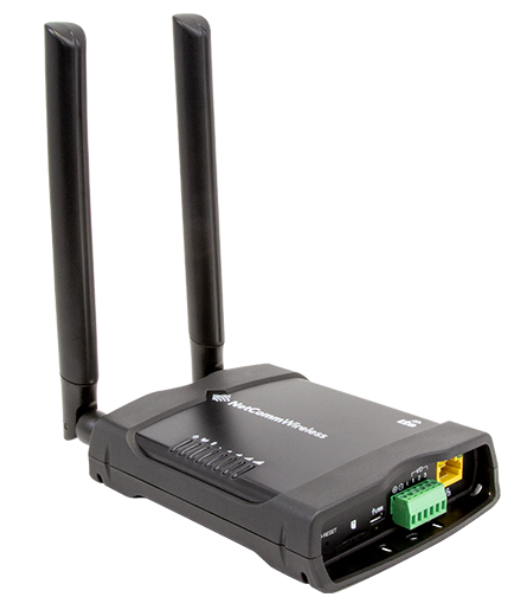

Lantronix NTC-220 Series – 4G LTE IIoT Router
The NTC-220 is a robust, cost-effective industrial IoT router delivering Cat 1 LTE connectivity, flexible interfaces and comprehensive remote management for Smart City, Transport & Mobility, Enterprise and Industry 4.0 deployments.
Key Features & Benefits
- Reliable connectivity: 4G LTE Cat 1 (up to 10 Mbps) with global band support
- Flexible I/O: 1× 100Base-T Ethernet, 1× DB9 (RS232/RS485/RS422, software selectable), USB 2.0 OTG
- Industrial I/Os: 3× multi-purpose I/O (0–30 V analog, digital threshold), NAMUR-compatible, open-collector output
- GNSS/GPS tracking: built-in GPS for asset tracking (*not on NTC-223*)
- Remote management: OTA firmware, configuration & monitoring via OMA LwM2M, TR-069, SNMP, HTTPS, Telnet/CLI, SMS
- Hardened design: OpenVPN, IPsec (up to 5 tunnels), GRE, PPTP; −40…+70 °C, IP41, ignition sense (vehicular)
- Easy ops: clear LED status, wall & DIN-rail mounting (TH35 bracket included)
Technical Specifications (excerpt)
| Cellular | 4G LTE Cat 1; SIM 2FF (optional solder-down SIM), auto/manual band & operator selection |
|---|---|
| Ethernet | 1× 100Base-T RJ45 |
| Serial | 1× DB9 DCE (9-wire RS232 or RS485/RS422, software selectable; software-controlled termination) |
| USB | Micro-USB 2.0 OTG (0.5 A) |
| I/O | 3× multi-purpose I/O, open-collector output, NAMUR-sensor compatible |
| GNSS | 1× SMA for GPS/GNSS (*not on NTC-223*); 2× SMA cellular (Main, RX Diversity) |
| CPU & Memory | 1 GHz ARM® Cortex®-A8, 256 MB RAM, 512 MB Flash |
| VPN & Routing | OpenVPN (Client/Server/P2P), IPsec (up to 5 tunnels), GRE, PPTP; VRRP, NAT-disable/PPPoE bridge, DHCP/DNS/DDNS |
| Industrial Protocols | Modbus TCP/RTU/ASCII Gateway/Client, Data Stream Manager (mapping & parsing) |
| Management | HTTPS Web-UI, SSH/CLI, SNMP v1/v2/v3, TR-069, OMA LwM2M, SMS; OTA firmware (HTTPS, SNMP, TR-069, LwM2M) |
| Power | 8–40 V DC (terminal block), ignition sense; ~6 W (recommend 12 V/1.5 A PSU) |
| Environment | Operating −40…+70 °C, 0–95 % RH; IP41 enclosure |
| Size/Weight | 143×107×34 mm; 221 g (254 g with bracket) |
| Mounting | Wall (multi-orientation), DIN-rail (bracket included) |
Models (Regional Variants)
- NTC-221-01-01 (AU/NZ), NTC-222-01-01 (Europe), NTC-223-01-01 (Japan, no GPS), NTC-224-01-01 (AT&T US), NTC-225-01-01 (Verizon US), NTC-227-01-01 (Global)
FAQ
Does it support OTA updates & remote configuration?
Yes—firmware over-the-air plus remote configuration & monitoring via LwM2M, TR-069, SNMP, HTTPS, Telnet/CLI, and SMS.
Is GPS integrated?
Yes for asset tracking—exception: model NTC-223 does not include GPS.
Is it suitable for harsh environments?
Yes, with −40…+70 °C operating temperature, 0–95 % humidity and an IP41 enclosure.
Information on product safety:
- Only suitable for technically experienced users who are familiar with the product.
- Only suitable for the intended use.
- Improper use can lead to damage and injury.
- Observe the manufacturer's further safety instructions.
