Product description

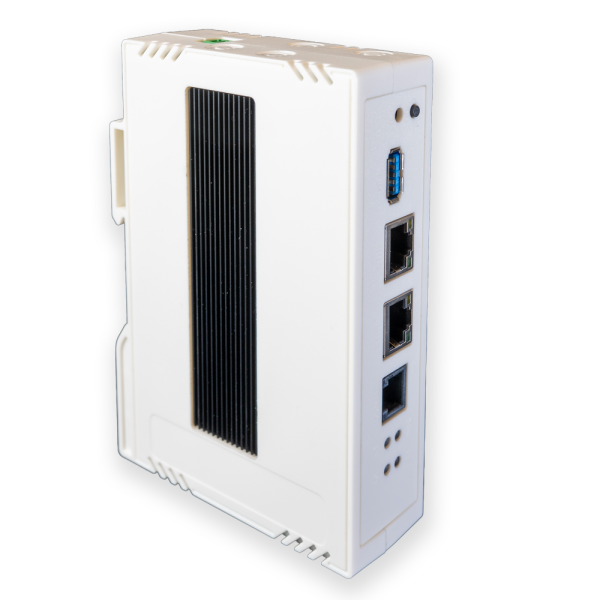

The Modular Link IQ-615 (manufacturer part number SF-F53-IPC-00-I0) is a DIN-rail industrial gateway from Seco, built on the Qualcomm® IQ-615 SoC for industrial edge computing.
Modular Link IQ-615 overview
SECO Modular Link IQ-615 is a compact DIN mount industrial gateway based on the Qualcomm® IQ-615 SoC (64-bit SMT, octa-core Kryo 4), designed for industrial edge deployments that need local compute plus secure connectivity. On the platform stack it includes 4GB LPDDR4X RAM, 32GB eMMC, Qualcomm® Adreno™ 612 graphics, optional MiniHDMI® output up to 1080p at 60Hz, and runs SECO Clea OS (Linux Yocto). According to the official manufacturer price list, Seco assigns the variant SF-F53-IPC-00-I0 described here to the BOX product line, listed as "Gateway IQ-615 (W)".
Configuration & Features
- CPU: Qualcomm® IQ-615, 64-bit SMT octa-core Kryo 4; Graphics: Qualcomm® Adreno™ 612, 845 MHz
- Memory: 4GB LPDDR4X RAM, Storage: 32GB eMMC
- Networking: 2x 10/100 Ethernet
- Interfaces: 1x USB 3.1 Type-A (front), 1x USB Micro-AB for debug, 1x RS485 on RJ11 (front), optional MiniHDMI® video output
- Security: TPM 2.0, Secure Boot, SECO Clea OS (Yocto) with OTA update support
- Power supply: 24 VDC, under 20W; enclosure dimensions 140 x 96 x 36 mm for DIN-rail mounting
Typical Applications
The gateway is suited for industrial data acquisition, local processing, and secure connectivity to cloud infrastructure, for example in Edge Computer (SBCs / Box PCs) or Network Infrastructure, 5G & Edge AI solutions.
Note for Procurement
For detailed configuration and delivery information on variant SF-F53-IPC-00-I0 as well as samples, please contact us via our contact page.
