Product description

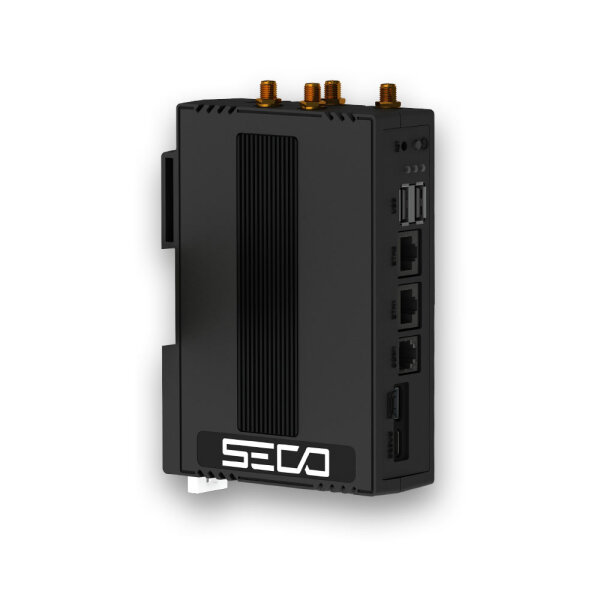

The Modular Link MX93 is a DIN rail gateway from Seco carrying the manufacturer part number SF-E39-ML-2020-0100-E0, built around the NXP i.MX 93 SoC with an integrated Arm Ethos U-65 microNPU. According to the official Seco distributor price list, this MPN represents the minimal-version mother unit within the Modular Link MX93 product line (BOX).
Modular Link MX93 Overview
The Modular Link MX93 is a DIN mount, fanless industrial PC with a modular design and wireless connectivity, stackable via a custom connector for daughter systems to extend I/O and power distribution. It runs Clea OS, a Linux Yocto-based operating system.
Configuration & Features
- NXP i.MX 93 with 2x Arm Cortex-A55 up to 1.5 GHz, Arm Cortex-M33 @ 250 MHz and Arm Ethos U-65 microNPU
- Up to 2GB LPDDR4 memory (3700 MT/s) and up to 32GB eMMC 5.1 flash storage soldered on-board
- Up to 2x Gigabit Ethernet (RJ45), optional Wi-Fi 802.11 a/b/g/n/ac with Bluetooth 5.0, and an optional full-size miniPCIe slot for an LTE modem with nanoSIM
- Dual USB 2.0 Type-A (one with OTG capability), one software-configurable RS-232/RS-422/RS-485 serial port on RJ12, plus debug UART over USB-C
- Optional MiniHDMI video interface for resolutions up to 1080p@60Hz
- Power input +12 to +36 VDC, operating temperature -20°C to +70°C, enclosure dimensions 140 x 96 x 36 mm
- TPM 2.0, RTC and watchdog, plus a stackable custom connector for daughter systems exposing I2C, SPI, GPIO, CAN, USB, UART and power
Typical Applications
The gateway is suited for industrial connectivity and edge applications, for example in Network Infrastructure, 5G & Edge AI. Further matching products are listed under Cellular Routers & Gateways.
Note for Procurement
Per the official manufacturer price list, SF-E39-ML-2020-0100-E0 is the minimal-version mother unit of the Modular Link MX93 series. Alternative memory, wireless or I/O configurations as well as matching daughter systems are available from Seco on request.
For availability, samples and project pricing, please reach out via our Atlantik Elektronik contact page.
