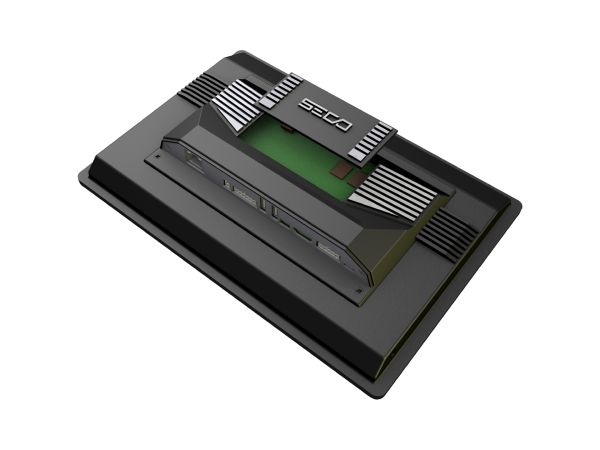

Modular Vision 7 MX8M-Plus HMI Display – Seco SF-E83-M07-1510-0010-C0

The Modular Vision 7 MX8M-Plus SF-E83-M07-1510-0010-C0 is an industrial 7-inch HMI display from Seco featuring an NXP i.MX8M Plus Quad processor, 4 GB RAM and 16 GB eMMC storage in a panel-mount design.

Modular Vision 7 MX8M-Plus Overview

Modular Vision is an all-in-one HMI solution available in 7, 10.1 and 15.6 inch formats, featuring the NXP i.MX8M Plus processor for efficient AI processing and industrial-grade performance. Modular Vision is built around SECO's SMARC-based system-on-modules, allowing the computing power to be matched to the application. Each system in this family is powered by the same SOM-SMARC-MX8M-Plus module and combines computing, display, and connectivity in one compact unit.

Configuration & Features

• Processor: NXP i.MX8M Plus Quad with VPU, NPU, ISP, HiFi4 and CAN-FD (per manufacturer price list)
• Memory: 4 GB RAM and 16 GB eMMC storage
• Display: 7.0-inch touch panel with capacitive P-Cap technology
• Mounting: panel mount with foam seal
• Power supply: 12 V, optional battery operation
• Operating system: Clea OS preinstalled
• The NXP i.MX8M Plus processor offers 64-bit Cortex-A computing supplemented by a Neural Processing Unit (NPU) for cost-effective and energy-efficient edge machine learning applications.

Typical Applications

The display is suited for operator panels and human-machine interfaces on industrial equipment, machine fronts and control cabinets. Depending on the mounting option, it supports panel, flush, rear, and VESA-mount configurations for different installation requirements. Related applications can be found under Touch Displays and in the Industrial Panels, Tablets & HMI category.

Note for Development

The device runs Clea OS, a Linux operating system based on the Yocto Project that incorporates remote device management, data processing, and standard IoT communication protocols. Since the module is based on the SMARC standard, software and peripheral planning can be based on the manufacturer's product page and datasheet. For technical details, samples and project pricing, contact the ATE team via Contact Atlantik Elektronik.
