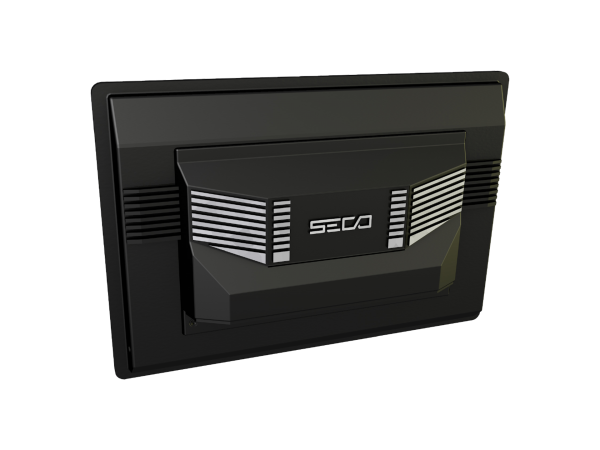

Modular Vision 7 MX93 HMI Panel – Seco SF-E83-M07-1410-0010-C0

The Modular Vision 7 MX93 (manufacturer part number SF-E83-M07-1410-0010-C0) is an industrial 7-inch HMI panel from Seco with an NXP i.MX93 applications processor, 2GB RAM and 32GB eMMC storage for panel mount installation.

Modular Vision 7 MX93 Overview

The Modular Vision 7 MX93 is part of Seco's scalable Modular Vision platform and represents the entry-level model of the series with a 7-inch display. The entry-level Modular Vision 7 MX93 models with a 7-inch display feature the NXP i.MX93 application processor as their core component and are equipped with up to 2GB LPDDR4-3200. According to the manufacturer, the modular housing concept allows scaling from flush and rear-wall mounting up to VESA mounting.

Configuration & Features

• NXP i.MX93 Applications Processor with 1-2x Arm Cortex-A55 @ 1.7 GHz, Arm Cortex-M33 @ 250 MHz and Arm Ethos U-65 microNPU
• Soldered LPDDR4X/LPDDR4-3200 memory, up to 2GB, 16-bit interface
• eMMC 5.1 with 32GB soldered on-board (boot device), SD 4-bit interface as additional boot device
• 7.0-inch display, 1024 x 600 resolution, 400 cd/m² brightness, P-Cap touchscreen with 3.0mm chemically strengthened cover glass
• 1x Gigabit Ethernet, optional Wi-Fi + Bluetooth 5.0
• 1x USB-C (dual role), 1x USB 2.0 Type A, 2x RS-232, 1x RS-485, CAN plus I²C, SPI, 2x digital in and 2x digital out
• Power supply 9 to 32 VDC, operating temperature 0 to +60 °C, dimensions 202 x 128 x 35 mm, Clea OS (Yocto)

Typical Applications

Possible applications include gaming, digital signage, parking, ticketing, EV charging stations, vending machines for beverages and food, laboratory equipment, as well as visualization and control of industrial processes. Matching products are available in the Touch Displays category and under Industrial Panels, Tablets & HMI.

Note for Development

According to the manufacturer, the Modular Vision 7 MX93 ships without a power supply; a suitable power source must be provided separately. In addition to the variant described here with 32GB eMMC, Seco also offers a version with 16GB eMMC under part number SF-E83-M07-1310-0010-C0 with otherwise identical interfaces. For availability, samples and design-in support, contact the ATE team.
