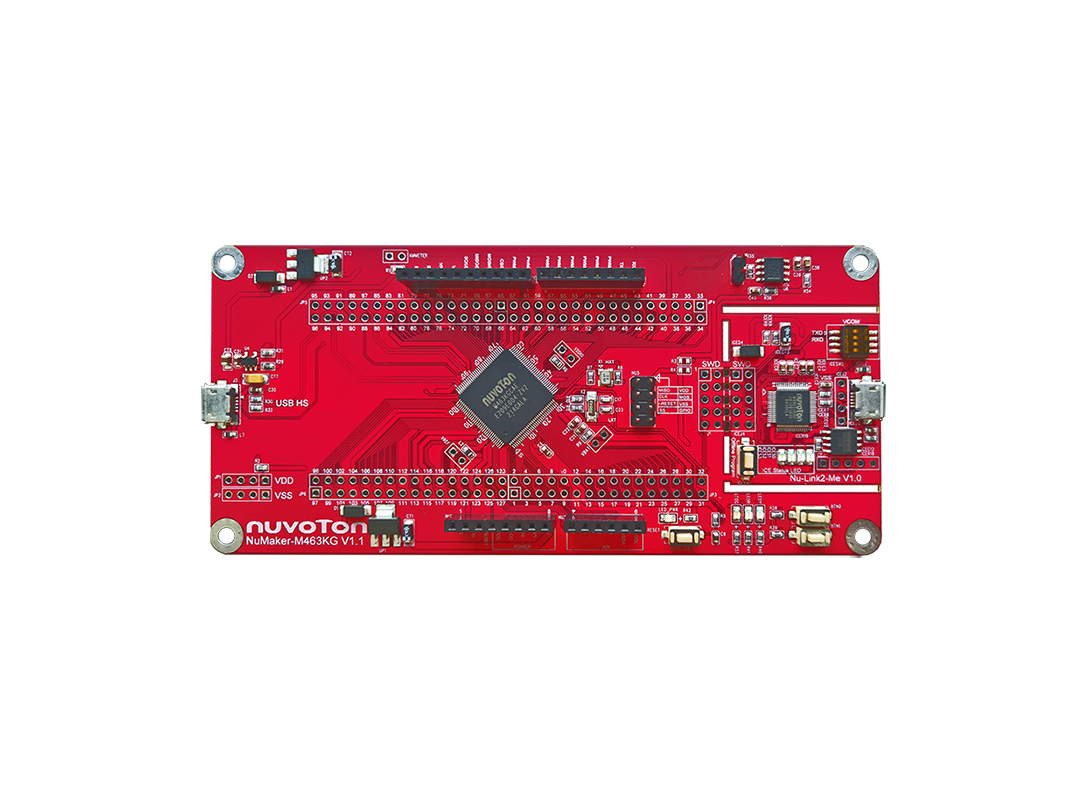

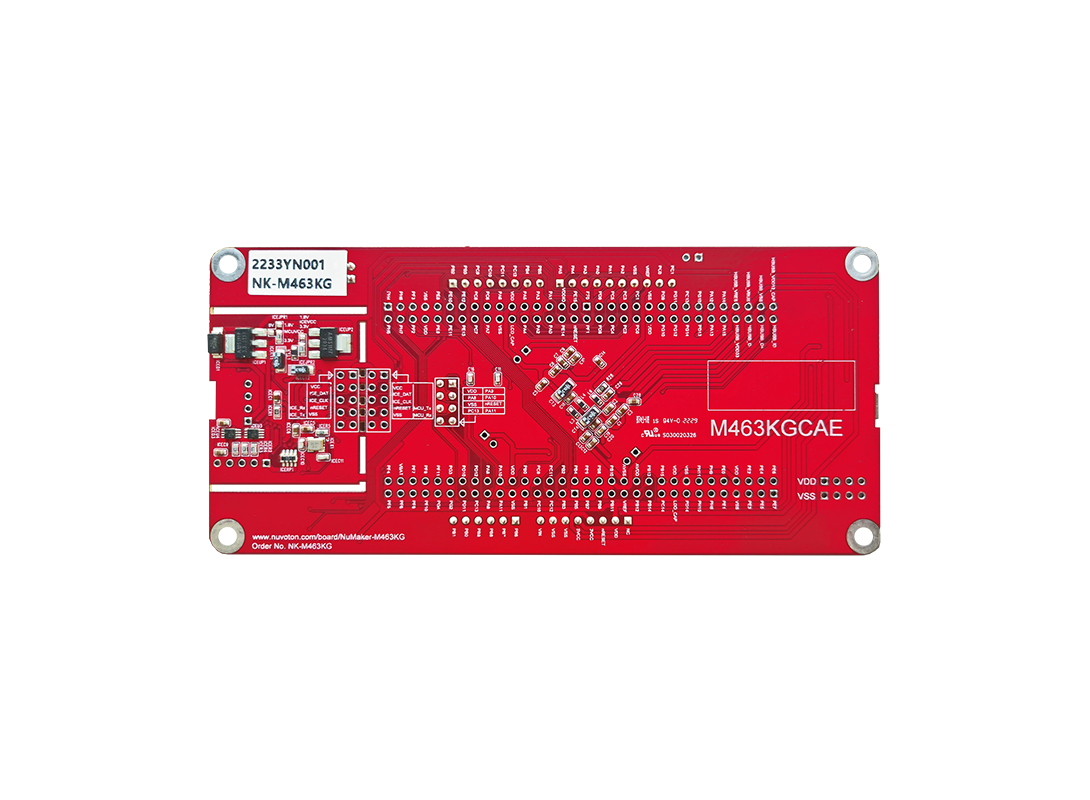

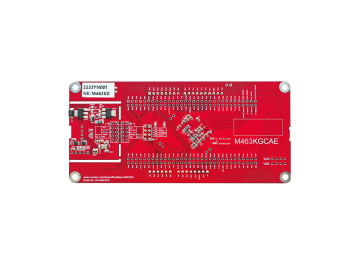

The Nuvoton NuMaker-M463KG is an evaluation board for the NuMicro M463 series and is intended for development projects that require a compact, ready-to-use platform for evaluation, prototyping, and validation. The board consists of an M463KG target board and an on-board Nu-Link2-Me debugger and programmer. This makes the platform suitable for a fast start into embedded designs based on an Arm Cortex-M4F controller.
Development platform based on M463KGCAE
The target board is equipped with the NuMicro M463KGCAE. The underlying microcontroller is based on an Arm® Cortex®-M4F with DSP instruction set and single-precision FPU and is targeted at IoT gateway, industrial control, telecom, and data center applications. This makes the board suitable for development tasks where compute performance, connectivity, and flexible peripheral integration need to be combined on a compact evaluation platform.
Direct debugging and flexible evaluation
With the integrated Nu-Link2-Me, debugging and programming functions are available directly on the board. It supports on-chip debugging as well as online and offline ICP programming via SWD. The on-board debugger also supports virtual COM (VCOM) for debug messages on a PC. This simplifies project startup and reduces the need for external development infrastructure.
Arduino-compatible headers and extension connectors
For flexible development setups, the NuMaker-M463KG provides Arduino UNO compatible headers as well as additional extension connectors. This allows external modules, peripherals, and evaluation hardware to be connected quickly. Multiple power supply options further increase flexibility in lab and development environments.
Power-consumption monitoring for product-oriented validation
A key advantage of the platform is its integrated power-consumption monitoring capability. Via the Nuvoton-designed ammeter connector, power draw can be measured directly during operation. This is especially relevant for prototypes where both functional validation and energy behavior need to be assessed early in development.
For project inquiries and technical fit in your embedded or industrial application, please use our contact page, call 089 895050, or email store-ate@atxx.de.
Technical Specifications
- Product: NuMaker-M463KG
- MPN: NuMaker-M463KG
- Manufacturer: Nuvoton
- Product type: Evaluation board / development board
- Target MCU: NuMicro M463KGCAE
- Supported series: NuMicro M463YG, M463LG, M463SG, M463KG
- Board structure: M463KG target board + on-board Nu-Link2-Me debugger/programmer
- CPU of target MCU: Arm® Cortex®-M4F with DSP instruction set and single-precision FPU
- Flash of MCU platform: Up to 256 KB
- SRAM of MCU platform: Up to 128 KB
- Headers: Arduino UNO compatible headers
- Expansion: Extension connectors
- Power: Multiple power supply options
- Monitoring: Power consumption monitoring function
- Debug/Programming: Nu-Link2-Me
- Debug features: On-chip debugging, online/offline ICP via SWD, virtual COM
- Additional properties: Built-in LEDs for programming status, detachable Nu-Link2-Me for stand-alone mass production programming
- Deployment profile: Project evaluation, prototype development, validation
- Target application profile of MCU platform: IoT gateway, industrial control, telecom, data center
Application Areas
- Evaluation of NuMicro M463-based embedded designs
- Prototyping for IoT and industrial control applications
- Validation of communication and peripheral concepts
- Development of energy-aware Cortex-M4 projects with power monitoring
- Shield and module evaluation via Arduino UNO compatible headers
- Fast project start with integrated debugging and programming environment
- Product: NuMaker-M463KG
- MPN: NuMaker-M463KG
- Manufacturer: Nuvoton
- Product type: Evaluation board / development board
- Target MCU: NuMicro M463KGCAE
- Supported series: NuMicro M463YG, M463LG, M463SG, M463KG
- Board structure: M463KG target board + on-board Nu-Link2-Me debugger/programmer
- CPU of target MCU: Arm® Cortex®-M4F with DSP instruction set and single-precision FPU
- Flash of MCU platform: Up to 256 KB
- SRAM of MCU platform: Up to 128 KB
- Headers: Arduino UNO compatible headers
- Expansion: Extension connectors
- Power: Multiple power supply options
- Monitoring: Power consumption monitoring function
- Debug/Programming: Nu-Link2-Me
- Debug features: On-chip debugging, online/offline ICP via SWD, virtual COM
- Additional properties: Built-in LEDs for programming status, detachable Nu-Link2-Me for stand-alone mass production programming
- Deployment profile: Project evaluation, prototype development, validation
- Target application profile of MCU platform: IoT gateway, industrial control, telecom, data center
FAQ
What is the NuMaker-M463KG?
The NuMaker-M463KG is an evaluation board for the NuMicro M463 series. It combines an M463KG target board with an integrated Nu-Link2-Me debugger and programmer.
Which MCU is mounted on the target board?
The target board is based on the NuMicro M463KGCAE, an Arm Cortex-M4F microcontroller with DSP instruction set and single-precision FPU.
What is the board designed for?
The platform is designed for project evaluation, prototyping, and validation. It also supports power-consumption monitoring during development.
Which expansion options does the board provide?
The NuMaker-M463KG provides Arduino UNO compatible headers and additional extension connectors. This allows a wide range of peripheral modules and shields to be connected quickly.
What are the benefits of the integrated Nu-Link2-Me?
With the on-board Nu-Link2-Me, debugging and programming are available directly on the platform. It also supports VCOM for debug output, shows programming status via built-in LEDs, and can be used as a stand-alone mass production programmer.
Which projects is the NuMaker-M463KG especially suited for?
The board is especially suitable for embedded projects in IoT gateway, industrial control, telecom, and data center environments where a compact platform with debugging, expandability, and energy monitoring is required.
- Only suitable for technically experienced users who are familiar with the product.
- Only suitable for the intended use.
- Improper use can lead to damage and injury.
- Observe the manufacturer's further safety instructions.
