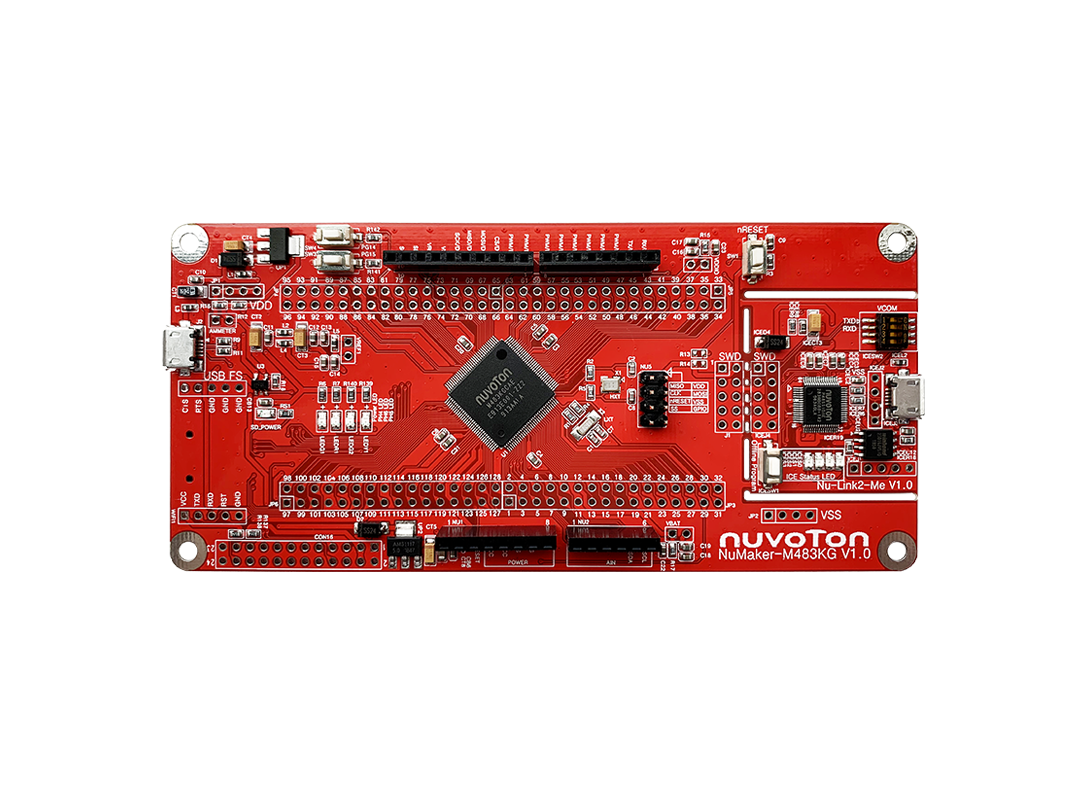

The Nuvoton NuMaker-M483KG is an evaluation board for the M483 platform and is intended for development projects that require a compact, ready-to-use environment for evaluation, prototyping, and validation. The platform combines the target board with an on-board Nu-Link2-Me debugger and programmer, making it suitable for a fast start into embedded development without the need for additional external debug hardware.
Platform for fast evaluation and prototyping
The NuMaker-M483KG is designed for direct development startup. Via the integrated debug and programming interface, applications can be built, tested, and iterated quickly. This makes the board especially suitable for early architecture work, functional prototypes, and validation tasks in embedded environments.
On-board Nu-Link2-Me for debugging, programming, and VCOM
With the integrated Nu-Link2-Me, on-line programming and debugging via SWD are available directly on the board. The platform also supports off-line programming via the on-board 16 Mbit SPI Flash. A virtual COM port (VCOM) function is additionally provided for debug output on a PC. This significantly reduces development setup effort.
Expandable through Arduino UNO and full-pin connectors
For flexible development setups, the NuMaker-M483KG provides both Arduino UNO compatible extension connectors and M483KGCAE2A full-pins extension connectors. This allows external modules, peripherals, and evaluation hardware to be connected quickly. The platform is therefore well suited to projects where practical peripheral integration is an important part of the development workflow.
Power-consumption monitoring for product-oriented validation
A key strength of the platform is its integrated ammeter connector. This allows the microcontroller’s power consumption to be monitored during development. That is especially relevant for embedded projects where, in addition to functional validation, energy behavior also needs to be assessed at an early stage.
Nu-Link2-Me also usable in production-oriented workflows
The Nu-Link2-Me can be separated from the board and reused as a mass production programming tool. This gives the NuMaker-M483KG added value beyond early development and supports a practical transition toward production-oriented programming workflows.
For project inquiries and technical fit in your embedded or industrial application, please use our contact page, call 089 895050, or email store-ate@atxx.de.
Technical Specifications
- Product: NuMaker-M483KG
- MPN: NuMaker-M483KG
- Manufacturer: Nuvoton
- Product type: Evaluation board / development board
- Platform: M483 platform
- Board structure: M483 platform + on-board Nu-Link2-Me debugger and programmer
- Expansion: M483KGCAE2A full pins extension connectors
- Headers: Arduino UNO compatible extension connectors
- Monitoring: Ammeter connector for microcontroller power-consumption monitoring
- Debug/Programming: Nu-Link2-Me
- Debug interface: SWD
- Off-line programming: Via on-board 16 Mbit SPI Flash
- VCOM: Virtual COM port for PC debug output
- Additional benefit: Nu-Link2-Me detachable and reusable as mass production programming tool
- Deployment profile: Fast development, easy programming, and debugging of applications
Application Areas
- Evaluation of M483-based embedded designs
- Prototyping for industrial and communications applications
- Validation of power consumption and runtime behavior
- Peripheral and shield testing via Arduino UNO compatible connectors
- Fast creation of functional prototypes with SWD debugging
- Transition from development to production-oriented programming workflows
- Product: NuMaker-M483KG
- MPN: NuMaker-M483KG
- Manufacturer: Nuvoton
- Product type: Evaluation board / development board
- Platform: M483 platform
- Board structure: M483 platform + on-board Nu-Link2-Me debugger and programmer
- Expansion: M483KGCAE2A full pins extension connectors
- Headers: Arduino UNO compatible extension connectors
- Monitoring: Ammeter connector for microcontroller power-consumption monitoring
- Debug/Programming: Nu-Link2-Me
- Debug interface: SWD
- Off-line programming: Via on-board 16 Mbit SPI Flash
- VCOM: Virtual COM port for PC debug output
- Additional benefit: Nu-Link2-Me detachable and reusable as mass production programming tool
- Deployment profile: Fast development, easy programming, and debugging of applications
FAQ
What is the NuMaker-M483KG?
The NuMaker-M483KG is an evaluation board based on the M483 platform. It combines the target board with an integrated Nu-Link2-Me debugger and programmer.
Which development and expansion interfaces does the board provide?
The board provides M483KGCAE2A full-pins extension connectors as well as Arduino UNO compatible extension connectors. This allows external modules and evaluation hardware to be connected quickly.
Which functions does the on-board Nu-Link2-Me provide?
The Nu-Link2-Me supports on-line programming and debugging via SWD, off-line programming through the on-board 16 Mbit SPI Flash, and VCOM for PC debug output.
Can power consumption be measured with the NuMaker-M483KG?
Yes. The board includes an ammeter connector that allows the microcontroller’s power consumption to be monitored during development.
Can the Nu-Link2-Me also be used outside the board?
Yes. The Nu-Link2-Me can be separated from the board and reused as a mass production programming tool.
Which tasks is the NuMaker-M483KG especially suited for?
The platform is especially suitable for evaluation, prototyping, debugging, power analysis, and the rapid creation of embedded applications on the M483 platform.
