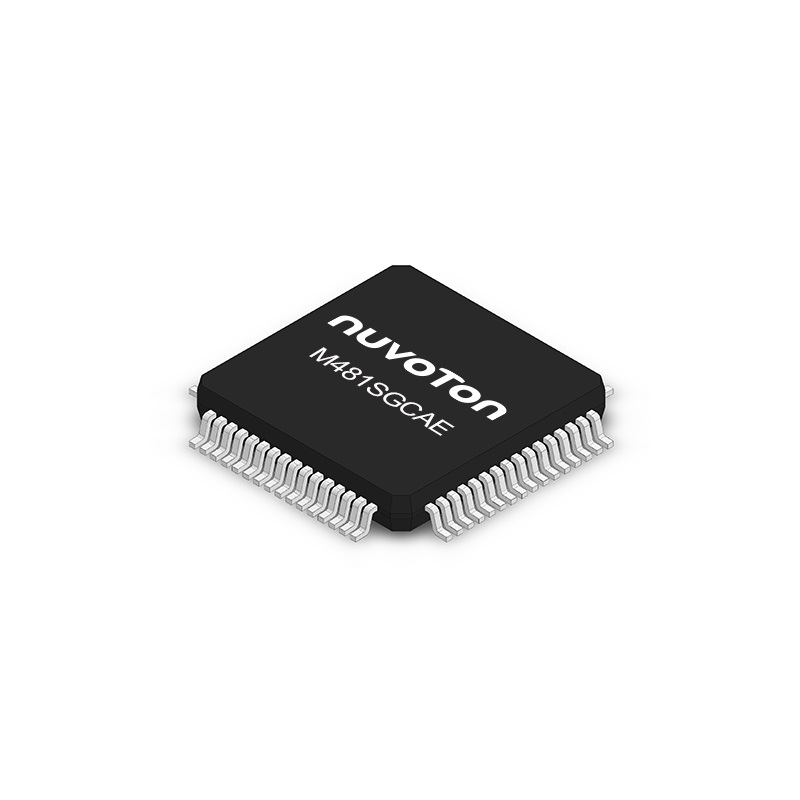

Nuvoton - M481SGCAE
Nuvoton - M481SGCAE
The NuMicro® M481 Base series is a high performance, low power microcontroller powered by the Arm® Cortex®-M4F core with DSP extension. It can run up to 192 MHz with 175 µA/ MHz dynamic low power consumption. The 512/ 256 KB embedded dual bank Flash memory supports OTA ( Over-The-Air ) firmware upgrade, and the 160/ 96 KB embedded SRAM includes 32 KB cache to speed up external SPI Flash code execution. The factory pre-loaded bootloader delivers Secure Boot functionality to provide the code integrity check in embedded Flash memory. The built-in Secure Protection ROM provides a safe space for saving confidential program or data. One-Time Programmable ROM is also included for product life-cycle management.
The NuMicro® M481 Base series is a high performance, low power microcontroller powered by the Arm® Cortex®-M4F core with DSP extension. It can run up to 192 MHz with 175 µA/ MHz dynamic low power consumption. The 512/ 256 KB embedded dual bank Flash memory supports OTA ( Over-The-Air ) firmware upgrade, and the 160/ 96 KB embedded SRAM includes 32 KB cache to speed up external SPI Flash code execution. The factory pre-loaded bootloader delivers Secure Boot functionality to provide the code integrity check in embedded Flash memory. The built-in Secure Protection ROM provides a safe space for saving confidential program or data. One-Time Programmable ROM is also included for product life-cycle management.
- Op. Freq: 192 MHz Op
- Voltage: 1.8V-3.6V
- Flash (Kbytes) 128
- SRAM (Kbytes) 128
- ADC 12 bit
- SAR 16 channel
- Package QFP48 (7x7) 51
- I/O 12bit
- DAC 16 PDMA
- Op. Temp -40 to 105°C
