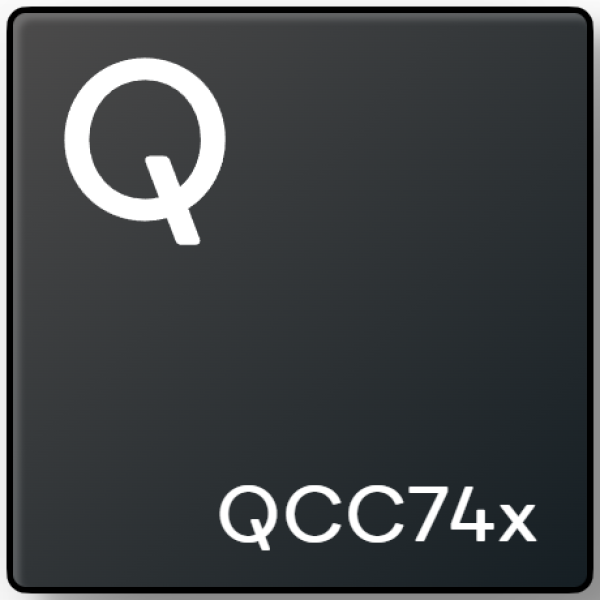

Developing advanced IoT devices and looking for a compact, high-performance system solution? The Qualcomm QCC74x combines Wi-Fi 6, Bluetooth 5.4, and IEEE 802.15.4 (Thread/Zigbee-ready) into a single, highly integrated chip. Powered by a 32-bit RISC-V processor up to 325 MHz with DSP and FPU, 484 KB SRAM, 48 KB cache, and an optional SiP featuring up to 16 MB pSRAM and 8 MB NOR flash, it’s built for energy-efficient edge applications. With 35+ flexible GPIOs and integrated multimedia support, QCC74x is ideal for demanding connected product solutions.
Its hostless FreeRTOS-based operation, open-source SDK (via CodeLinaro), and dedicated VS Code IDE extension enable rapid, scalable development without the need for an external MCU. Alternatively, it can operate as a connectivity transceiver in RCP or NCP configurations. Reduce time-to-market, system complexity, and overall cost – with one future-ready platform for your next-generation IoT product.
| Category | Details |
|---|---|
| CPU | Name: RISC-V1 Clock Speed: 325 MHz |
| Wi-Fi | Antenna Configuration: 1x1 Standards: 802.11b/g/n/ax Spectral Bands: 2.4 GHz |
| Bluetooth | Specification Version: Bluetooth® 5.32 |
| Security | Features: Secure Boot, Cryptographic Accelerator, Qualcomm® Trusted Execution Environment & Services, Secure Debug |
| Package | Type: QFN3 Pitch: 0.4 mm |
| SRAM | Density: 484 kB |
| Interfaces | Supported Interfaces: PWM, I²C, up to 35x GPIO, RMII, DAC, SPI, SDIO, UART, I²S, ADC, QSPI, CAN |
- Only suitable for technically experienced users who are familiar with the product.
- Only suitable for the intended use.
- Improper use can lead to damage and injury.
- Observe the manufacturer's further safety instructions.
