Raspberry Pi Camera Module 3
All variants of the camera module 3 have:
- Back-illuminated and stacked CMOS image sensor with 12 megapixels (Sony IMX708)
- High signal-to-noise ratio (SNR)
- Integrated dynamic 2D defect pixel correction (DPC)
- Phase detection autofocus (PDAF) for fast autofocus
- QBC re-mosaic function
- HDR mode (up to 3 megapixel output)
- Serial data output CSI-2
- Serial 2-wire communication (supports I2C fast mode and fast mode plus)
- Serial 2-wire control of the focus mechanism

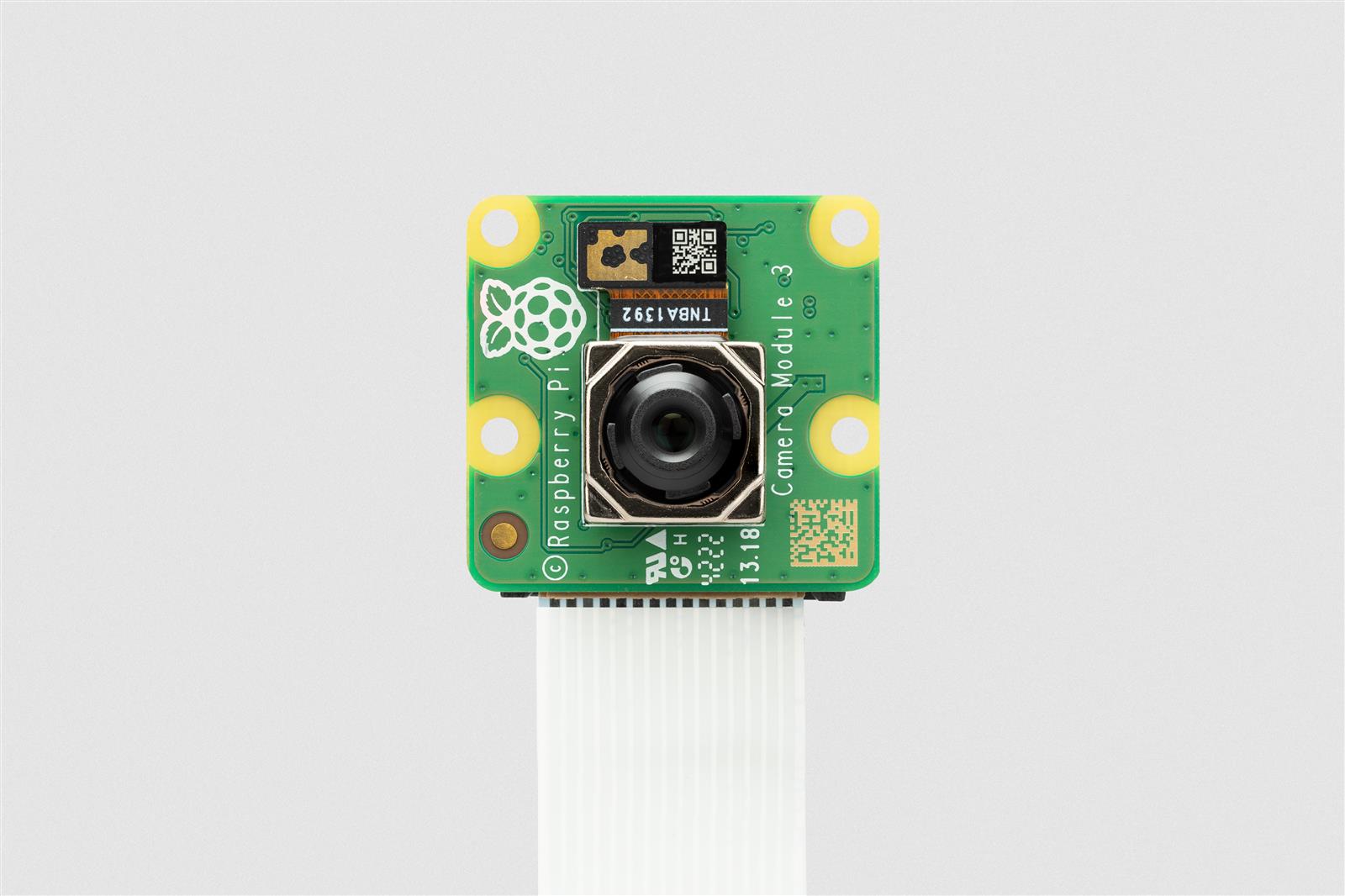

The Camera Module 3 (Standard) is a compact, high-quality camera with phase-detection autofocus, HDR capability, and a 12.3MP Sony IMX708 sensor. It includes an integrated IR cut filter for natural colour imaging and offers excellent performance for photography, streaming, monitoring, and computer vision applications.
- 12.3MP back-illuminated sensor (Sony IMX708)
- Phase detection autofocus (PDAF)
- HDR support (up to 3MP output)
- Standard lens with 75° diagonal field of view
- Focus range: 10cm to 8
- Focal length: 4.74mm / Aperture: F1.8
- Image resolution: 4608×2592 pixels (RAW10)
- Video modes: 1080p50, 720p100, 480p120
- Supplied with 200mm FPC cable
- Sensor size: 7.4mm diagonal
- Pixel size: 1.4µm × 1.4µm
- Module dimensions: 25 × 24 × 11.5mm
- IR cut filter: integrated
- CSI interface: 15-pin, 1mm pitch
- Operating temperature: 0°C to +50°C
- Production guaranteed until at least January 2030
Note: Compatible with all Raspberry Pi models with CSI connector. Some Raspberry Pi Zero models may require an adapter cable.
Information on product safety:
- Only suitable for technically experienced users who are familiar with the product.
- Only suitable for the intended use.
- Improper use can lead to damage and injury.
- Observe the manufacturer's further safety instructions.
