5G router for industrial, M2M, and edge applications

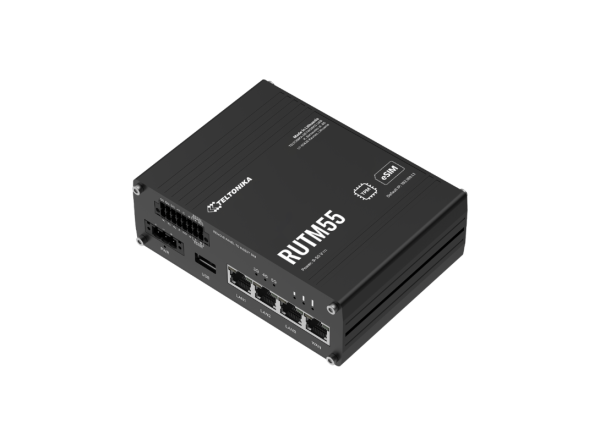

The Teltonika RUTM55 is an industrial 5G router designed for applications that need high connectivity, versatile interfaces, and robust system integration in one device. It supports 5G Sub-6 GHz in both SA and NSA operation and extends this with 4G LTE and 3G. This makes the router suitable for deployments that combine modern cellular access with broader network availability.
Dual SIM, eSIM, and flexible carrier handling
With dual SIM and integrated eSIM, the RUTM55 supports different carrier and backup strategies. Automatic SIM switching reacts to defined conditions such as weak signal, data limits, roaming, or connection failure. This is especially relevant for distributed installations where uptime and flexible cellular provisioning are key requirements.
Network platform with Wi-Fi, Gigabit Ethernet, and RutOS
For local networking, the router provides three Gigabit LAN ports, one Gigabit WAN port, and dual-band Wi-Fi 5. On the software side, RutOS delivers a broad feature set for routing, firewalling, VLAN, load balancing, failover, VPN, and remote management. This allows the router to fit into both conventional network infrastructures and industrial communication environments.
Serial interfaces, GNSS, and I/O for integration projects
The RUTM55 goes beyond standard router functionality by integrating RS232, RS485, GNSS, USB, and multiple I/O interfaces. These include a digital dry input, a galvanically isolated digital input, an analog input, an isolated open collector output, and a relay output. This feature set supports applications that need communication, positioning, and basic signal processing combined in a single device.
Built for demanding technical environments
The anodized aluminium housing, IP30 rating, and extended operating temperature range support use in industrial and technically demanding environments. DIN rail, wall, and flat-surface mounting are available with the required additional kit.
Application Areas
- Industrial and automation applications with 5G backhaul and serial connectivity.
- IoT and IIoT deployments with dual SIM, eSIM, and failover requirements.
- Edge systems that combine Ethernet, Wi-Fi, GNSS, and I/O in one device.
- Remote monitoring and remote service solutions with VPN, RMS, and industrial protocol support.
- Technical systems requiring RS232, RS485, or MODBUS communication.
- Installations that need positioning, signal processing, and cellular communication in a single platform.
Technical Specifications
- Manufacturer: Teltonika Networks
- Product: RUTM55
- Product type: 5G router
- Cellular: 5G Sub-6 GHz SA/NSA, 4G LTE, 3G
- Mobile data rates: 5G up to 2.4/3.4 Gbps DL and 900/550 Mbps UL; 4G LTE DL Cat 19 up to 1.6 Gbps, UL Cat 18 up to 200 Mbps
- 3GPP Release: Release 16
- SIM / eSIM: dual SIM and 1x eSIM
- eSIM: consumer-type eSIM, profile download and removal, up to 7 eSIM profiles
- SIM switching: auto-switching for weak signal, data limit, SMS limit, roaming, no network, network denied, connection failure, and SIM idle protection
- Wi-Fi: 802.11b/g/n/ac Wave 2, dual band, MU-MIMO, up to 867 Mbps
- Wi-Fi features: wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
- Max simultaneous Wi-Fi users: up to 150
- Ethernet: 1x WAN 10/100/1000 Mbps, 3x LAN 10/100/1000 Mbps
- USB: 1x USB A, USB 2.0
- USB applications: Samba share, USB-to-serial
- External USB devices: HDD, flash drive, additional modem, printer, USB-serial adapter
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
- NMEA: NMEA 0183
- NTRIP: supported
- Geofencing: multiple configurable geofence zones
- Serial interfaces: RS232, RS485
- Serial functions: console, serial over IP, modem, MODBUS gateway, NTRIP client
- Inputs: 1x digital dry input (0 - 3 V), 1x digital galvanically isolated input (0 - 50 V), 1x analog input (0 - 24 V)
- Outputs: 1x isolated open collector output (50 V, 500 mA), 1x SPST relay output (24 V, 10 A)
- Power supply: 3-position plugable terminal block
- Input voltage range: 9 - 50 VDC
- Passive PoE: over Port 1, 9 - 50 VDC, Mode B, not compatible with 802.3af/at/bt
- Power protection: reverse polarity protection, surge protection > 51 VDC 10us max
- Power consumption: idle < 8.5 W, max < 14.5 W
- Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL
- Routing: static routing, BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP, policy based routing
- Firewall / security: NAT, NAT-T, firewall rules, DDoS prevention, port scan prevention, VLAN, 802.1x, TPM 2.0, Let's Encrypt
- VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
- Industrial / IoT protocols: MODBUS TCP/USB, MQTT Gateway, OPC UA, DNP3, DLMS/COSEM
- Management: Web UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
- IoT platforms: ThingWorx, Cumulocity, Azure IoT Hub
- Operating system: RutOS (OpenWrt-based)
- CPU: MediaTek dual-core, 880 MHz, MIPS1004Kc
- RAM: 256 MB DDR3
- Flash: 16 MB serial NOR flash, 256 MB serial NAND flash

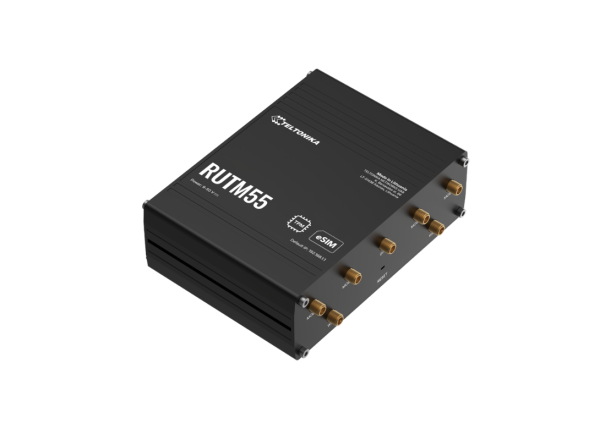

- Antenna connectors: 4x SMA for mobile, 2x RP-SMA for Wi-Fi, 1x SMA for GNSS
- Status LEDs: 3x mobile connection type, 3x mobile connection strength, 6x LAN status, 1x power
- Reset: reboot / user default reset / factory reset button
- Housing: anodized aluminium housing
- Dimensions: 132 x 44.2 x 95 mm
- Weight: 430 g
- Mounting options: DIN rail, wall, flat surface (additional kit required)
- Operating temperature: -40 °C to 75 °C
- Operating humidity: 10% to 90% non-condensing
- Ingress protection: IP30
- Approvals: CE, UKCA, CB, RCM, EAC, UCRF, WEEE
- Available region / version: EMEA, APAC, Brazil
- Supported 5G bands: NSA n1, n3, n7, n38, n40, n41, n71, n77, n78; SA n1, n3, n7, n38, n40, n41, n71, n77, n78
- Supported 4G bands: LTE-FDD B1, B3, B7, B38, B40, B41, B42, B43, B71; LTE-TDD B1, B3, B7, B38, B40, B41, B42, B43, B71
- Supported 3G bands: B1, B3, B5, B8
- Standard package: RUTM55 router, 3-pin power connector, 2x8pin connector, hex key, SIM adapter kit, QSG, packaging box
- HS Code: 851762
- HTS: 8517.62.00
FAQ
Which cellular standards does the RUTM55 support?
The router supports 5G Sub-6 GHz in both SA and NSA operation, with additional 4G LTE and 3G support.
Which local network interfaces are available?
The RUTM55 provides one Gigabit WAN port, three Gigabit LAN ports, and dual-band Wi-Fi 5.
Does the device support serial communication?
Yes. The router includes RS232 and RS485 and supports functions such as serial over IP, MODBUS gateway, and NTRIP client.
Which I/O functions are available?
Available interfaces include one digital dry input, one galvanically isolated digital input, one analog input, one isolated open collector output, and one SPST relay output.
Does the RUTM55 support GNSS?
Yes. It supports GPS, GLONASS, BeiDou, Galileo, and QZSS, along with features such as NMEA, NTRIP, and geofencing.
What environments is the router designed for?
The RUTM55 is designed for industrial environments with an operating range from -40 °C to 75 °C, an IP30 enclosure, and DIN rail, wall, or flat-surface mounting options.
- Only suitable for technically experienced users who are familiar with the product.
- Only suitable for the intended use.
- Improper use can lead to damage and injury.
- Observe the manufacturer's further safety instructions.
