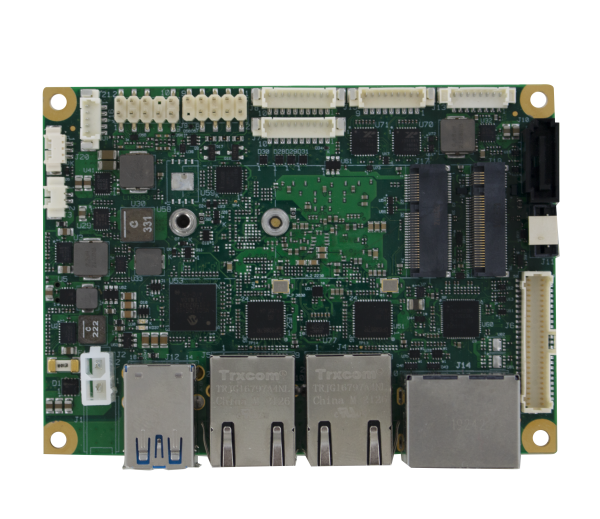

SBC-pITX-EHL Pico-ITX Single Board Computer – Seco SD63-1421-2321-C4

The SBC-pITX-EHL is a Pico-ITX single board computer by Seco from the D63 product family. The SD63-1421-2321-C4 variant is equipped with an Intel Celeron J6413 quad-core processor, 4 GB LPDDR4 RAM, 32 GB eMMC storage and a horizontal Mini-Fit power connector for the commercial temperature range.

SBC-pITX-EHL at a Glance

SBC-pITX-EHL is a PicoITX compliant module with the Intel® Atom® x6000E Series and Intel® Pentium® and Celeron® N and J Series processors. Designed and optimized for Functional Safety (FuSa) applications, this module offers flexibility, reliability, and safety for a wide range of applications across multiple industries.

Configuration & Features

• Processor for this variant per manufacturer data: SBC-pITX-EHL w/ Intel Celeron J6413 (QC @ 1.3GHz - up to 3.0 GHz, TDP 10W), 4GB RAM, 32GB eMMC, horizontal power input minifit connector, TPM 2.0, Audio HDA, 3.3V LCD supply voltage, LVDS – Comm Temp.
• Graphics: Integrated Intel® Gen11 UHD Graphics controller with up to 32 EU; 4K HW decoding and encoding of HEVC (H.265), H.264, VP8, VP9, WMV9/VC1 (decoding only)
• Video: 2x Multimode DisplayPort 1.4, on Dual DP++ connector; 1x eDP 1.3 or Single/Dual-Channel 18-/24-bit LVDS interface, up to 4096x2160 @60 Hz
• Connectivity: 2x GbE with precision time protocol IEEE 1588, M.2 WWAN and WLAN slots, dual SuperSpeed USB 10Gbps Standard-A connector
• Interfaces: 2x RS-232/RS-422/RS-485 UARTs (software configurable) on pin header; 8x GPIOs, I2C, SPI connectors, 2x CAN connector, Fan connector
• OS support: Microsoft® Windows 10 IoT Enterprise, Linux, Yocto
• Dimensions and temperature: 100 x 72 mm (3,93” x 2,83”); 0°C - +60°C (Commercial version)

Typical Applications

The SBC-pITX-EHL targets compact embedded and edge applications, for example within the Single Board Computer (SBC) category. Seco names Transportation, Safety & Surveillance, Industrial Automation, Digital Signage, Energy & Utilities among its main fields of application, relevant for example to the Digital Signage solution area.

Note for Procurement

For ordering purposes, the SBC-pITX-EHL is referred to by its base code, “D63”. The configuration described here (SD63-1421-2321-C4) is based on Seco's published distributor price list; the exact revision should be confirmed with Seco or ATE before order confirmation.

For availability, sample requests and technical consultation on the SBC-pITX-EHL, contact the Atlantik Elektronik team.
