Silex Technology - SX-SDMAX-2530S
Silex Technology - SX-SDMAX-2530S

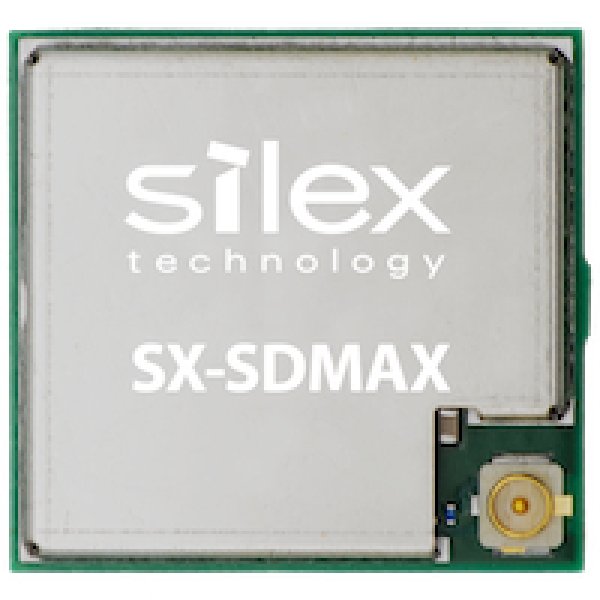

The SX-SDMAX is a Wi-Fi 6 (IEEE 802.11a/b/g/n/ac/ax) plus Bluetooth® v5.3 that supports SDIO as its host interface. Powered by NXP’s highly integrated IW611 chipset, the Wi-Fi 6 module delivers higher throughput, better network efficiency, lower latency, and improved range over previous-generation Wi-Fi standards. The module supports SDIO as its host interface, which is a popular choice for many battery-operated device applications. In addition, by supporting a wide temperature range, it is a wireless LAN module that is ideal for wireless compatibility with a wide range of products, from industrial equipment to small devices.
The SX-SDMAX is a Wi-Fi 6 (IEEE 802.11a/b/g/n/ac/ax) plus Bluetooth® v5.3 that supports SDIO as its host interface. Powered by NXP’s highly integrated IW611 chipset, the Wi-Fi 6 module delivers higher throughput, better network efficiency, lower latency, and improved range over previous-generation Wi-Fi standards. The module supports SDIO as its host interface, which is a popular choice for many battery-operated device applications. In addition, by supporting a wide temperature range, it is a wireless LAN module that is ideal for wireless compatibility with a wide range of products, from industrial equipment to small devices.
- PHY data rate up to 600Mbps (at 5GHz/80MHz/MSC11)
- Single stream, 1x1
- Powered by NXP's IW611 chipset
- Host interface: Wireless LAN SDIO3.0 compatible, Bluetooth® UART
- 80MHz band mode (5GHz)
- High density modulation mode (1024 QAM)
- Bluetooth® v5.3 Class1 compatible
- RoHS compliant
- Modular certifications(Planned)：Japan, USA, Canada, Europe
Information on product safety:
- Only suitable for technically experienced users who are familiar with the product.
- Only suitable for the intended use.
- Improper use can lead to damage and injury.
- Observe the manufacturer's further safety instructions.
