Product description

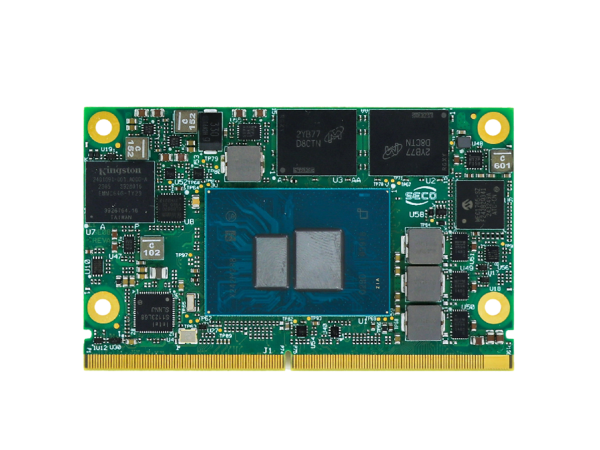

The Seco SOM-SMARC-ASL (manufacturer part number RE08-C432-2121-I3) is a SMARC Rel. 2.1 compliant System-on-Module with an Intel Atom x7433RE processor (codename Amston Lake, 4 cores, 1.5 GHz, up to 3.4 GHz turbo) for industrial edge computing applications.
SOM-SMARC-ASL overview
The SOM-SMARC-ASL belongs to the E08 product family and is based on the SMARC standard with dimensions of 50 x 82 mm. The RE08-C432-2121-I3 variant is equipped with the 4-core Intel Atom x7433RE processor, 8GB of LPDDR5-4800 memory and 32GB of eMMC storage, and is rated for the industrial temperature range.
Configuration & Features
- Intel Atom x7433RE processor, 4 cores @ 1.5 GHz (3.4 GHz turbo), 9W TDP, with TSN and TCC
- 8GB LPDDR5-4800 memory (quad-channel, soldered down) with IBECC
- 32GB onboard eMMC storage
- Integrated Intel UHD Graphics (Intel Xe architecture) with 32 execution units, supporting up to 3 independent 4K60 displays
- Video interfaces: LVDS plus 2x DP++ (DisplayPort 1.4 / HDMI 2.1) per part number, with eDP 1.3 as a factory alternative
- 2x NBase-T Ethernet (2.5GbE, Intel i225 controllers with TSN), PCIe Gen3 without SERDES (4x1 or 1x2+2x1)
- TPM SLB 9670 (Q2.0), SPI1 as general-purpose SPI, industrial temperature range -40°C to +85°C
Typical application areas
According to the manufacturer, the module is suited for medical equipment, industrial automation, and smart building/smart city applications. Further modules for edge computing projects are available in the System-on-Modules (SOM/CoM) category.
Note for development
Per the manufacturer, the module is designed for use with compatible SMARC carrier boards; project-specific carrier board compatibility should be verified. For design-in support, samples, and project pricing for the Seco SOM-SMARC-ASL, contact our team.
