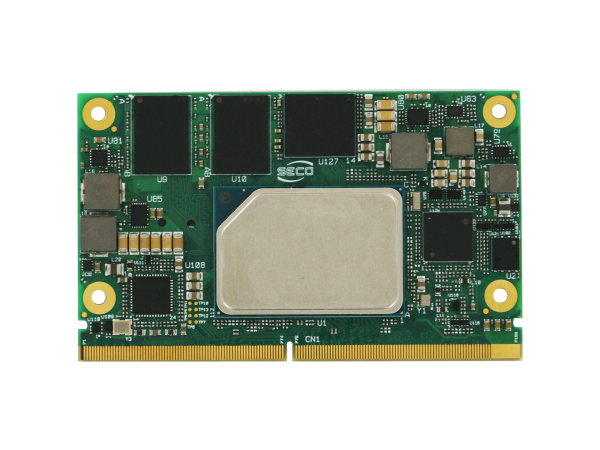

SOM-SMARC-EHL SMARC System-on-Module – Seco RC93-Q861-4021-I4

The SOM-SMARC-EHL is a SMARC Rel. 2.1.1 computer-on-module from Seco with the manufacturer part number RC93-Q861-4021-I4, built around the Intel Atom x6211E (SKU5, dual-core up to 3.00 GHz Turbo, TDP 6.0W), 4GB RAM and 32GB eMMC storage.

SOM-SMARC-EHL Overview

The SOM-SMARC-EHL is based on the Intel Atom x6000E series (codename Elkhart Lake) and belongs to Seco's C93 product family, internally also referred to as HALLEY. The module integrates a Gen11 UHD graphics controller and supports up to three independent displays at resolutions up to 4096 x 2160 pixels.

Configuration & Features

• Processor: Intel Atom x6211E (SKU5), dual-core, up to 3.00 GHz Turbo, 6.0W TDP
• Memory: 4GB LPDDR4x, storage: 32GB eMMC 5.1
• Up to 4x PCIe Gen3 lanes for expansion
• Video outputs: LVDS plus HDMI 1.4 and DisplayPort++ 1.4
• TPM 2.0 for platform security and a general-purpose SPI interface
• SMARC Rel. 2.1.1 form factor, dimensions 50 x 82 mm

Typical Applications

As a compact computer-on-module, the SOM-SMARC-EHL is suited to space-constrained embedded designs, for example in the System-on-Modules (SOM/CoM) category or for projects in Network Infrastructure, 5G & Edge AI.

Note for Procurement

For manufacturer part number RC93-Q861-4021-I4, the official Seco product page states a commercial temperature range, while the SECO distributor price list lists an industrial temperature range for the same part number. Please confirm the exact temperature range before ordering.

For availability, sample requests and design-in support for the Seco SOM-SMARC-EHL, contact our team.
