Product description

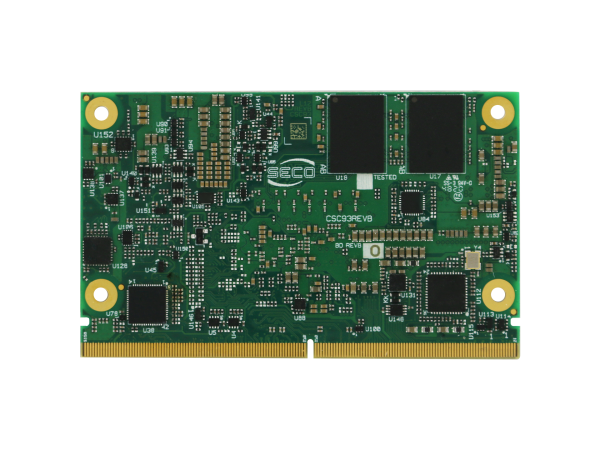

The SOM-SMARC-EHL RC93-M991-4021-C4 from Seco is a SMARC Rel. 2.1.1 compliant Computer-on-Module (CoM) featuring an Intel Pentium J6426 processor, 8GB LPDDR4x RAM and 64GB eMMC storage, designed for Functional Safety applications.
SOM-SMARC-EHL Overview
The SOM-SMARC-EHL is a SMARC Rel. 2.1.1 compliant module with Intel Atom x6000E Series and Intel Pentium and Celeron N and J Series processors. The module is optimized for Functional Safety (FuSa) applications, offering flexibility, reliability, and safety across multiple industries. The variant covered here, RC93-M991-4021-C4 (HALLEY / SM-C93 product family), ships with an Intel Pentium J6426 (SKU2, Quad Core up to 3.00 GHz Turbo, 10W TDP), 8GB RAM and 64GB eMMC.
Configuration & Features
- Processor: Intel Pentium J6426 (SKU2), Quad Core, up to 3.00 GHz Turbo, 10W TDP
- 8GB RAM, 64GB eMMC storage
- Up to 16GB of 32-bit LPDDR4x memory in quad-channel configuration with In-Band Error Correction Code (IBECC) as a safety-related feature
- Interfaces per manufacturer specification: 4x PCIe x1 or 1x PCIe x4, LVDS, HDMI, DP++
- TPM 2.0 and general-purpose SPI interface
- Connectivity: 2x Gigabit Ethernet with precision time protocol IEEE 1588, optional SERDES for a third Ethernet port, 6x USB 2.0, 3x USB 3.1 and up to 4x PCIe
- Commercial temperature range (Comm. Temp.)
Typical Applications
This SMARC module fits applications within System-on-Modules (SOM/CoM) requiring Functional Safety, such as industrial automation and medical technology.
Note for Development
Seco offers the SOM-SMARC-EHL series (HALLEY / SM-C93) in multiple processor, memory and temperature configurations; see the manufacturer datasheet for the full part number overview and block diagram. For design-in support, samples and project pricing on this module, contact our team.
