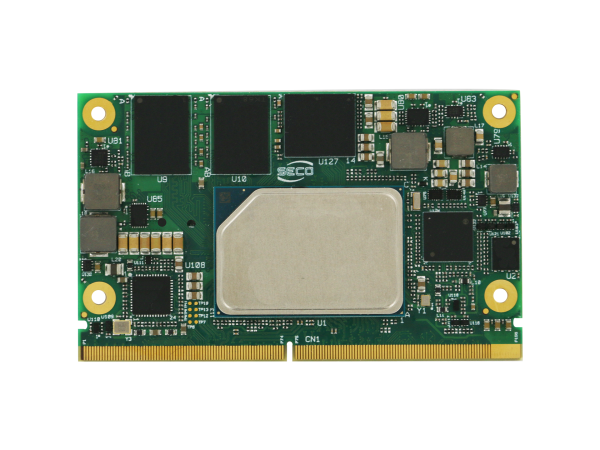

SOM-SMARC-EHL SMARC Module – Seco RC93-T861-2021-I4

Seco RC93-T861-2021-I4 is a variant of the SOM-SMARC-EHL, a SMARC® Rel. 2.1.1 compliant computer-on-module featuring an Intel Atom x6212RE dual-core processor, 4 GB LPDDR4x RAM and 32 GB eMMC storage for the industrial temperature range.

SOM-SMARC-EHL Overview

The SOM-SMARC-EHL is a SMARC® Rel. 2.1.1 compliant Computer on Module (CoM) with Intel Atom x6000E Series and Intel Pentium and Celeron N and J Series processors (Codename: Elkhart Lake) for FuSa applications. The module is optimized for Functional Safety (FuSa) applications, offering flexibility, reliability, and safety for a wide range of applications across multiple industries. Internally, Seco refers to the module by the codes HALLEY and C93.

Configuration & Features

• Processor: Intel Atom x6212RE, dual-core, clocked up to 1.20 GHz without Turbo, 6.0 W TDP, with TCC and IBECC, industrial temperature range (per manufacturer part number list)
• Memory: 4 GB soldered-down LPDDR4x; Storage: 32 GB eMMC
• Up to 4x PCIe Gen3 lanes, this variant configured as 4x PCIe x1 or 1x PCIe x4 (per manufacturer part number list)
• Video: LVDS interface plus 2x DP++; integrated Gen11 UHD graphics controller supports up to 3 independent displays
• 2x GbE with precision time protocol (IEEE 1588), optional SERDES for a third Gigabit Ethernet, 6x USB 2.0 host ports and 3x USB 3.1
• TPM 2.0 and general-purpose SPI interface (per manufacturer part number list)
• Operating temperature -40°C to +85°C (Industrial version), dimensions 50 x 82 mm

Typical Applications

SMARC modules in this class suit compact, high-performance edge and control applications with limited board space. Related SOM/CoM modules are listed under System-on-Modules (SOM/CoM). For industrial automation use cases, see also Industry.

Note for Development

The SM-C93 was designed to fully comply with IEC 61508 and ISO 13849 Functional Safety (FuSa) requirements. The SOM may be incorporated onto a compatible carrier board, including customer-built designs. Carrier-board compatibility is always stated as manufacturer information and should be verified prior to design-in. For samples, technical questions and project pricing on this variant, please contact our team via our contact page.
