Product description

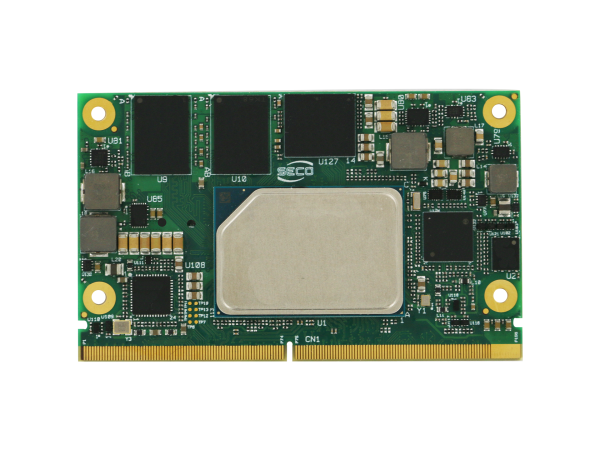

The SOM-SMARC-EHL RC93-U861-3001-I4 from Seco is a SMARC® Rel. 2.1.1 system-on-module with an Intel Atom x6214RE processor (SKU9, quad-core, 1.5 GHz, 9.0 W TDP) for the industrial temperature range.
SOM-SMARC-EHL Overview
The SOM-SMARC-EHL belongs to the C93 product family (codename HALLEY) and is based on Intel Atom x6000E as well as Pentium and Celeron N and J Series processors (codename Elkhart Lake). The module is designed for Functional Safety (FuSa) applications and integrates a Gen11 UHD graphics controller supporting up to three independent displays.
Configuration & Features
- Processor: Intel Atom x6214RE, quad-core, 1.5 GHz, 9.0 W TDP, with TCC and IBECC
- Memory: 4 GB RAM (LPDDR4x)
- Storage: 32 GB eMMC
- Video: eDP and HDMI interface
- Expansion: 4x PCIe x1 or alternatively 1x PCIe x4, general-purpose SPI
- No TPM module fitted
- Operating temperature range: -40 °C to +85 °C (industrial version)
Typical Applications
SMARC modules in this class are used in industrial vision and edge AI applications as well as in systems from the System-on-Modules (SOM/CoM) category.
Note for Development
Seco states that technical specifications are subject to change; the current datasheet revision is available from the manufacturer. For design-in questions, samples or project pricing, please contact Atlantik Elektronik.
