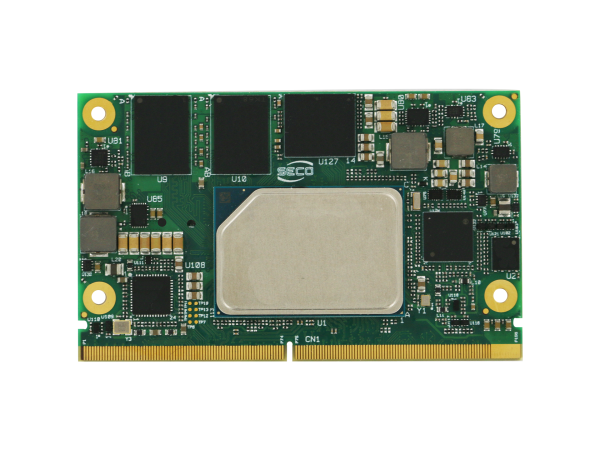

SOM-SMARC-EHL SMARC Module – Seco RC93-Y861-0021-I4

The SOM-SMARC-EHL RC93-Y861-0021-I4 from Seco is a SMARC® Rel. 2.1.1 Computer-on-Module featuring the Intel Atom® x6200FE (SKU12, dual-core @ 1.0 GHz, 4.5 W TDP), without integrated graphics, with IBECC and TCC, FuSa-certified to IEC 61508 and ISO 13849.

SOM-SMARC-EHL Overview

The SOM-SMARC-EHL belongs to the C93 product family (internally also referred to as HALLEY) and is described by the manufacturer as the first SMARC module specifically designed for Functional Safety (FuSa) of safety-related systems. The variant covered here, RC93-Y861-0021-I4, is fitted with the Atom x6200FE, a FuSa-certified dual-core processor without graphics output, and is built for the industrial temperature range.

Configuration & Features

• Processor: Intel Atom® x6200FE (SKU12), dual-core @ 1.0 GHz with no turbo, 4.5 W TDP, no graphics, with IBECC, IHS and TCC, FuSa-certified, industrial temperature range
• Memory: 4 GB RAM, 32 GB eMMC
• Interfaces: LVDS, 2x DP++, up to 4x PCIe (4x 1 lane or 1x 4 lanes), TPM 2.0, general-purpose SPI
• Form factor: SMARC® Rel. 2.1.1, dimensions 50 x 82 mm
• Networking: 2x Gigabit Ethernet PHY with precision clock synchronization for IEEE 1588, optional SERDES (SGMII) for a third Gigabit Ethernet
• USB: 6x USB 2.0 host ports, 2x USB 3.1 Gen2 ports
• Operating system: Microsoft Windows 10 Enterprise (64-bit), Linux Yocto 64-bit

Typical Applications

Functional-safety-relevant applications in industrial automation and machine safety benefit from the module's FuSa certification. Additional Computer-on-Module variants and accessories are listed under System-on-Modules (SOM/CoM), with industry-specific solution approaches under Network Infrastructure, 5G & Edge AI.

Note for Development

As a design-in partner, Atlantik Elektronik supports integration of the SOM-SMARC-EHL into custom carrier boards and provides guidance on Functional Safety documentation. For sample requests, datasheets and project pricing, contact our team.
