Product description

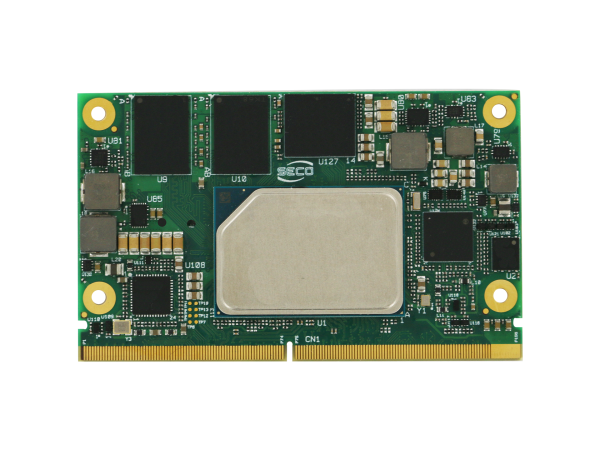

The SOM-SMARC-EHL (manufacturer part number RC93-VA72-4021-I4) from Seco is a SMARC® Rel. 2.1.1 Computer-on-Module featuring an Intel Atom x6425RE quad-core processor (SKU10, 1.9 GHz, 12 W TDP), 16 GB RAM and 64 GB eMMC for the industrial temperature range. The module belongs to the C93 product family (codename HALLEY) and is designed for Functional Safety (FuSa) applications.
SOM-SMARC-EHL Overview
The SOM-SMARC-EHL series is based on Intel Atom x6000E as well as Pentium and Celeron N/J processors of the Elkhart Lake generation. The RC93-VA72-4021-I4 variant uses the Atom x6425RE with Time Coordinated Computing (TCC) and In-Band Error Correction Code (IBECC) and is equipped with 16 GB quad-channel LPDDR4x memory plus 64 GB eMMC flash storage. According to the manufacturer, this configuration additionally includes an optional SERDES interface for a third Gigabit Ethernet connection, LVDS, HDMI, DP++, TPM 2.0 and general-purpose SPI.
Configuration & Features
- Intel Atom x6425RE quad-core processor (SKU10), 1.9 GHz, 12 W TDP, with TCC and IBECC
- 16 GB quad-channel LPDDR4x memory, 64 GB eMMC 5.1 mass storage (Safety Related)
- Integrated Gen11 UHD graphics for up to three independent displays, 4K hardware decoding (HEVC, H.264, VP8/VP9)
- Video interfaces: LVDS, HDMI 1.4, DisplayPort++ 1.4, resolution up to 4096 x 2160 at 60 Hz
- 2x Gigabit Ethernet PHY with IEEE 1588 time synchronization, optional SERDES interface for a third GbE
- 6x USB 2.0, 2x USB 3.1 Gen2, up to 4x PCIe Gen3, SATA Gen3, TPM 2.0, general-purpose SPI
- Operating temperature -40°C to +85°C (industrial version), dimensions 50 x 82 mm per SMARC® Rel. 2.1.1
Typical Applications
SMARC modules of this performance class are used in industrial controllers, edge computing systems and vision applications that require an extended temperature range and Functional Safety support. Find matching products in the System-on-Modules (SOM/CoM) category and in Industrial Vision & Edge AI.
Note for Development
Compatibility with SMARC® Rel. 2.1.1 carrier boards and the Seco DEV-KIT-SMARC is a manufacturer specification. For thermal design, the manufacturer recommends an application-specific cooling solution to keep the heatspreader temperature within the specified range. For design-in support, samples and project pricing for this Seco module, contact the ATE team.
