Main page » Manufacturers » Sparklan » Sparklan - WPEQ-268AXI(BT) 802.11ax/ac/a/b/g/n Industrial Capable Tri-band WiFi Combo, Half Mini PCIe Module(WiFi 6), Qualcomm, 2T2R
.jpg "WPEQ-268AXI(BT)")

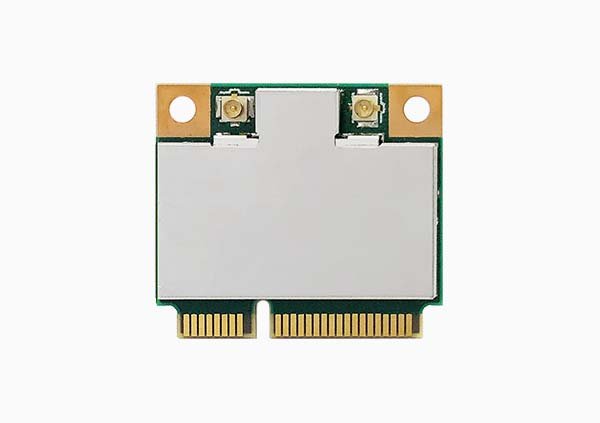

Sparklan - WPEQ-268AXI(BT) 802.11ax/ac/a/b/g/n Industrial Capable Tri-band WiFi Combo, Half Mini PCIe Module(WiFi 6), Qualcomm, 2T2R
.jpg "WPEQ-268AXI(BT)")
Sparklan - WPEQ-268AXI(BT)
The WPEQ-268AXI(BT) is the first Qualcomm based WiFi-6 (802.11ax) mini PCIe module, running PCIe (Wifi) and USB (BT), supports DBDC (Tri-band, Dual-concurrent) mode, but with Tri-band capability (2.4GHz, 5GHz, and 6GHz). WPEQ-268AXI(BT) is able to concurrently run 2.4GHz with 5GHz, or 6GHz, and support full IEEE802.11 ax/ac/a/b/g/n protocol, up to 160MHz mode.
The WPEQ-268AXI(BT) designed with 2 spatial streams (2T2R, or 2×2) in MU-MIMO mode. With a standard mini PCIe formfactor, WPEQ-268AXI(BT) can accommodate to all existing platform that has mini PCIe Adaptor pre-integrated, no extra work with platform design.
Utilizing Qualcomm WCN6856 chipset, software wise Software wise WPEQ-268AXI(BT) support Windows, with Linux (Open Source) in the pipeline. The module is capable to run on both x86 platform and ARM based platform, and supports STA mode and Soft AP Mode*, recommend to run on application includes: digital signage/POS, rugged computer / tablets, fanless automation PC and other industrial environment applications that requires high speed data transmission.
The WPEQ-268AXI(BT) is the first Qualcomm based WiFi-6 (802.11ax) mini PCIe module, running PCIe (Wifi) and USB (BT), supports DBDC (Tri-band, Dual-concurrent) mode, but with Tri-band capability (2.4GHz, 5GHz, and 6GHz). WPEQ-268AXI(BT) is able to concurrently run 2.4GHz with 5GHz, or 6GHz, and support full IEEE802.11 ax/ac/a/b/g/n protocol, up to 160MHz mode.
The WPEQ-268AXI(BT) designed with 2 spatial streams (2T2R, or 2×2) in MU-MIMO mode. With a standard mini PCIe formfactor, WPEQ-268AXI(BT) can accommodate to all existing platform that has mini PCIe Adaptor pre-integrated, no extra work with platform design.
Utilizing Qualcomm WCN6856 chipset, software wise Software wise WPEQ-268AXI(BT) support Windows, with Linux (Open Source) in the pipeline. The module is capable to run on both x86 platform and ARM based platform, and supports STA mode and Soft AP Mode*, recommend to run on application includes: digital signage/POS, rugged computer / tablets, fanless automation PC and other industrial environment applications that requires high speed data transmission.
Information on product safety:
- Only suitable for technically experienced users who are familiar with the product.
- Only suitable for the intended use.
- Improper use can lead to damage and injury.
- Observe the manufacturer's further safety instructions.
