Managed PoE+ switch for distributed device powering
The Teltonika SWM280 is a managed PoE+ switch designed for networks that need to combine data communication and power delivery centrally over Ethernet. With 24 Gigabit RJ45 ports, including 12 PoE+ capable ports, and 4 SFP ports, the device is positioned for high-performance industrial networks, technical infrastructures, and larger installations that require centralized port density.
12 PoE+ ports for flexible endpoint powering
PoE+ is available on ports 1 to 12 and delivers up to 30 W per port. The total PoE budget is 300 W. This makes the switch suitable for deployments where PoE-capable endpoints such as access points, cameras, gateways, or other network devices need to be powered directly through the switching infrastructure.
SFP uplinks and segmentation for structured networks
In addition to the RJ45 port set, four SFP ports are available for fiber uplinks or backbone connectivity. On the networking side, the SWM280 combines L2+ and L3 functions such as VLAN, STP/RSTP, LACP, IGMP snooping, QoS, bandwidth control, and static IPv4 and IPv6 routing. Dynamic routing protocols such as BGP, OSPF v2, RIP v1/v2, and EIGRP extend its use in segmented and controlled network environments.
Designed for industrial and mixed network environments
The SWM280 supports Profinet, MRP, and EtherNet/IP and is therefore suitable for environments where industrial communication and conventional IT infrastructure need to operate together. Depending on the order code, a version with Profinet Class B conformance is also available.
Rack deployment and central management

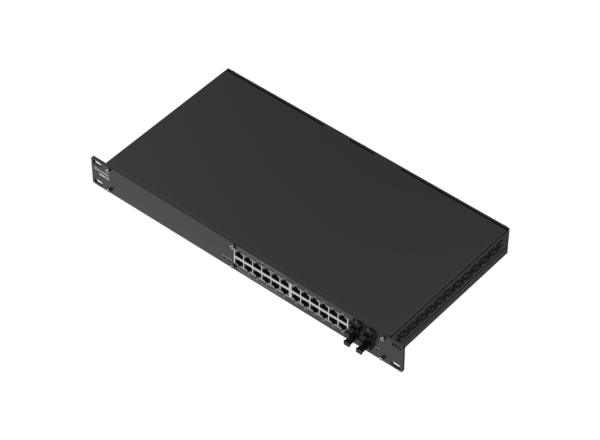

The device runs SwmOS and supports Web UI, FOTA, RMS, configuration profiles, and backups. Two years of RMS Management are included. Its 19-inch rack format with anodized aluminium housing is intended for deployment in central network cabinets, technical rooms, and distribution environments.
Application Areas
- Industrial networks with combined data and power delivery across 12 PoE+ ports.
- Technical infrastructures that require fiber uplinks through 4 SFP ports.
- Segmented networks using VLAN, QoS, static routing, and dynamic routing protocols.
- Industrial and mixed environments with Profinet, MRP, and EtherNet/IP requirements.
- Rack-based network installations in technical rooms and central distribution areas.
- PoE-enabled infrastructures with centralized RMS-based remote management.
- Manufacturer: Teltonika Networks
- Product: SWM280
- Product type: PoE+ managed switch
- Ethernet ports: 24x RJ45, 10/100/1000 Mbps
- SFP ports: 4x SFP
- PoE+ ports: ports 1-12
- PoE standards: IEEE 802.3af (PoE, Type 1), IEEE 802.3at (PoE+, Type 2), Alternative A
- Max. PoE power per port: 30 W
- Total PoE power budget: 300 W
- IEEE 802.3 standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
- Network management: 802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN
- Routing: BGP, OSPF v2, RIP v1/v2, EIGRP
- L3 features: static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
- L2 features: loop protection, forwarding table, VLAN, STP/RSTP
- Port aggregation: 802.3ad (LACP)
- MRP: MRP client role, MRP manager role
- DHCP: DHCP server, DHCP client, DHCP static leases with MAC wildcards
- Multicast: IGMP snooping, multicast querier support
- QoS: port priority, DSCP priority, 802.1p priority, TOS
- Scheduling: SP / WFQ / WRR
- Bandwidth control: rate limiting, storm control
- Traffic shaper: port-based shaping
- Diagnostics: cable diagnostic, ping, traceroute, nslookup
- Ping reboot: capability to restart PoE on a specific port
- Industrial protocols: Profinet, EtherNet/IP, SNMP v2/v3, LLDP
- Profinet: Profinet Class B conformance optional by order code
- Security: PAM, preshared key, Radius, TACACS+, IP and login blocking, VLAN, 802.1x, MAC filtering
- API: Teltonika Networks Web API (beta)
- Operating system: SwmOS (OpenWrt-based)
- CPU: Realtek, single core, 500 MHz, MIPS-4KEc
- RAM: 128 MB DDR3
- Flash: 16 MB serial flash
- Switching bandwidth: 56 Gbps non-blocking
- Forwarding rate: 83.33 Mpps
- Packet buffer: 512 KB
- MAC address table: 8K entries
- Jumbo frames: up to 10000 bytes
- Management: Web UI, FOTA, RMS, configuration profiles, backup, factory reset
- RMS: 2 years of RMS Management included

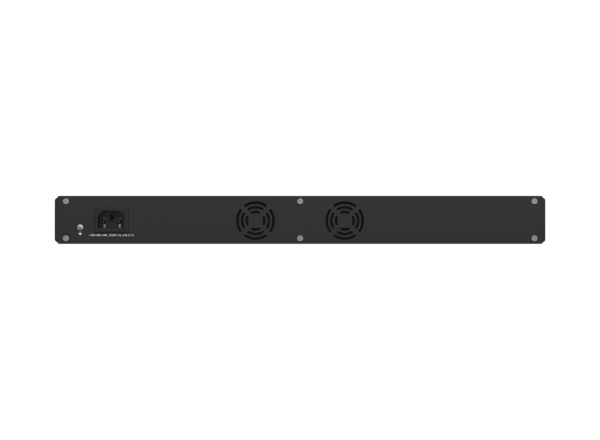

- Power connector: C14 connector
- Input voltage range: 100-240 VAC, 50/60 Hz
- Power consumption: idle 7.5 W / max 325 W / PoE max 300 W

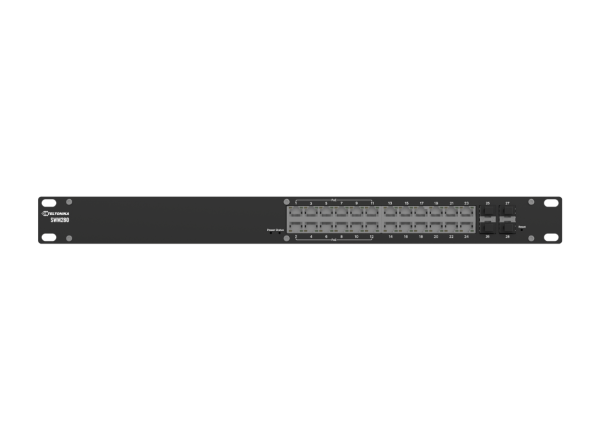

- Status LEDs: 1x power LED, 48x ETH status LEDs, 1x status LED, 4x SFP status LEDs
- Other interfaces: 1x grounding screw, software reset button
- Housing: anodized aluminium housing
- Dimensions: 483 x 44 x 234 mm
- Weight: 1842 g
- Mounting: rack mounting kit
- Operating temperature: 0 °C to 50 °C
- Operating humidity: 10% to 90% non-condensing
- Ingress protection: IP30
- Approvals: CE, UKCA, CB, RCM, FCC, IC
- Available versions: standard version without Profinet Class B conformance or version with Profinet Class B conformance
- Standard package: SWM280, quick start guide
- HS Code: 851762
- HTS: 8517.62.00
FAQ
How many ports does the SWM280 provide in total?
The switch provides 24 Gigabit RJ45 ports plus 4 additional SFP ports for uplink or fiber connectivity.
How many PoE+ ports are available?
PoE+ is available on ports 1 to 12. Each port can deliver up to 30 W, with a total PoE budget of 300 W.
Which network functions does the switch support?
The SWM280 supports VLAN, STP/RSTP, LACP, QoS, IGMP snooping, static IPv4/IPv6 routing, and dynamic routing protocols such as BGP, OSPF v2, RIP v1/v2, and EIGRP.
Is the SWM280 suitable for industrial networks?
Yes. The switch supports Profinet, MRP, and EtherNet/IP, making it suitable for industrial and mixed network environments.
Can the SWM280 be managed remotely?
Yes. The device supports RMS and includes 2 years of RMS Management.
Which mounting method is intended for the switch?
The SWM280 is designed for rack installation and is deployed with a rack mounting kit.
