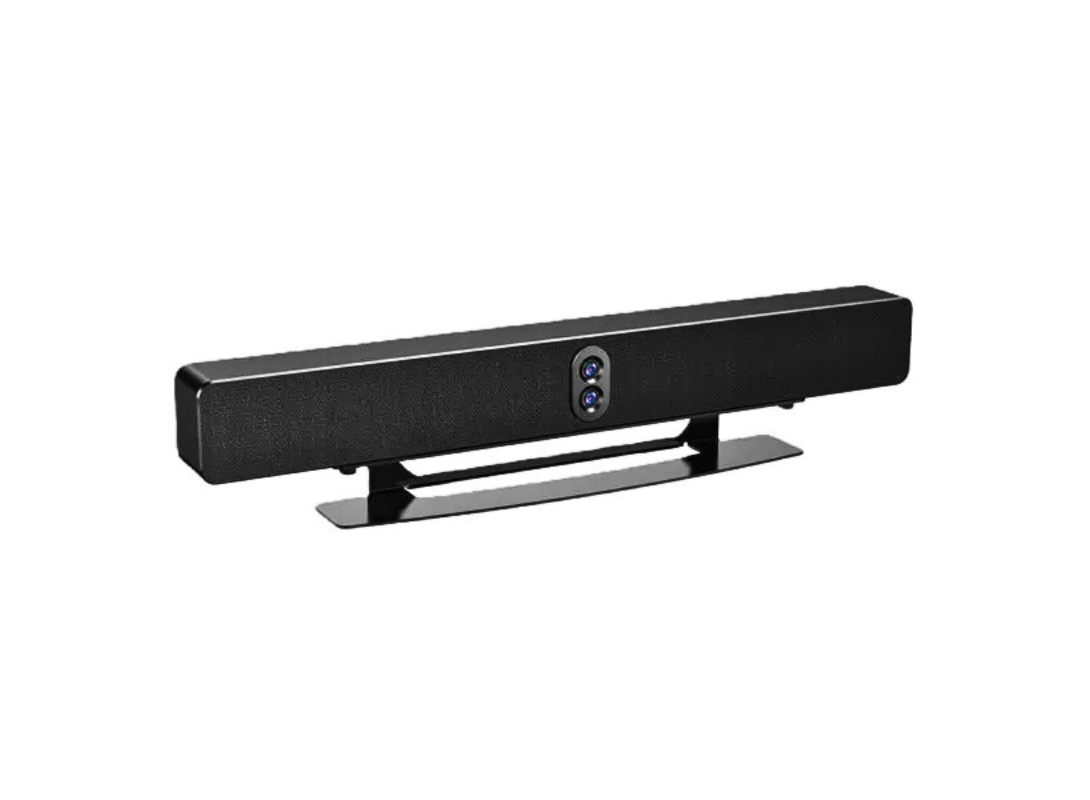

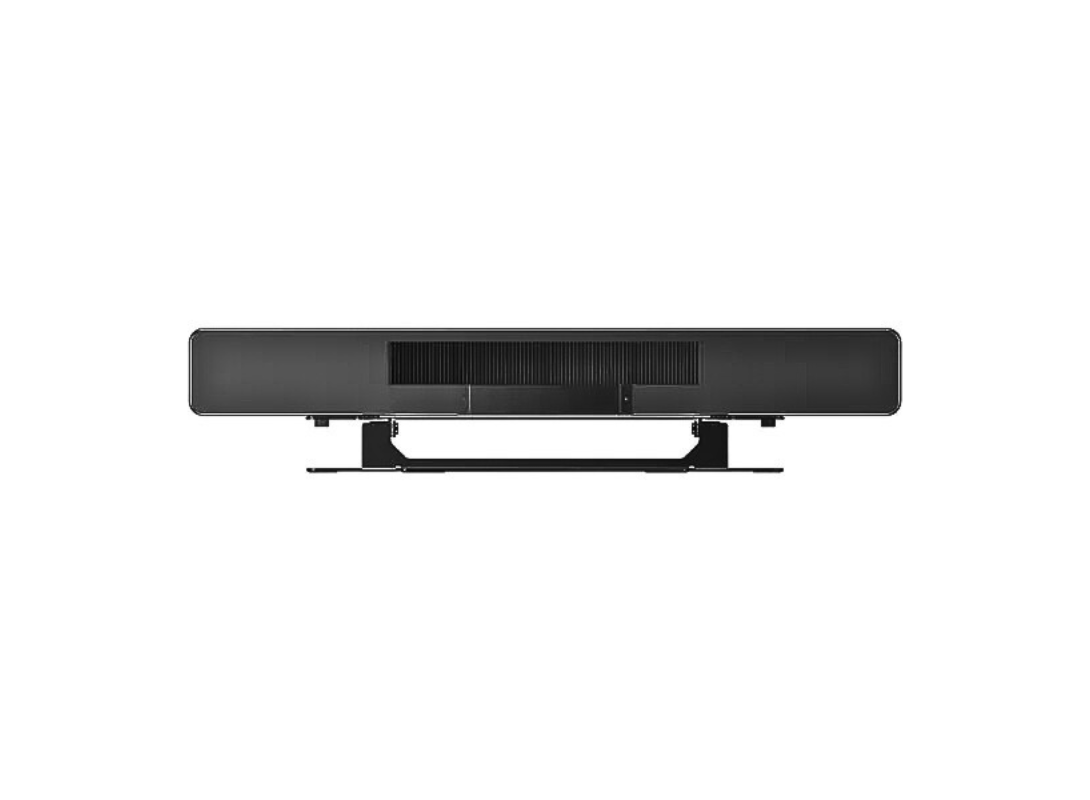

Thundercomm Blink 2 All-in-One Video Bar

The Thundercomm Blink 2 All-in-One Video Bar is designed for small to medium meeting rooms and combines camera, audio processing, speaker system, and intelligent room functions in a compact bar design. The platform is based on Qualcomm® QCS6490 and targets conferencing environments where audio, video, and AI-supported framing need to be combined in one integrated system.

All-in-one concept for modern meeting rooms

The Blink 2 All-in-One Video Bar reduces integration effort compared with discrete camera, microphone, and speaker setups. This makes the system suitable for conferencing spaces where a compact centrally installed AV platform with intelligent room coverage and simplified deployment is required.

Dual-camera system with intelligent framing

The platform uses two fixed-focus cameras based on Sony IMX678 sensors. A wide camera with HFOV 110° and a tele camera with HFOV 60° are specified. Supported functions include group auto-framing, face/body detection, people counting, single-speaker focus, dual-person conversation mode, and a composite mode with tracking of up to 6 people.

Audio front end for speech intelligibility in the room

Voice capture is handled by an integrated 8-DMIC linear array with omnidirectional MEMS microphones. The audio front end includes AI-NR, AEC, AGC, DOA, beamforming, and dereverberation. Playback is delivered through dual 10W full-frequency speakers with stereo support.

Dual display, BYOD, and room integration

The Blink 2 All-in-One Video Bar supports dual display and is designed for conference rooms that combine dedicated room-device operation with host-based BYOD workflows. Listed interfaces include HDMI Out × 2, HDMI In × 1, and USB 3.0 Type-C with DP Alt Mode. For BYOD use cases, UVC 1.5, UAC 2.0, HID customization, and DP input support are specified.

Platform and connectivity

The hardware platform lists C6490P, 8GB LPDDR5, and 128GB UFS, with 12GB RAM available as an option. The system supports Android 13 on MDEP OS. Connectivity includes 1000M Ethernet, Wi-Fi 6/6E, Bluetooth® 5.1, BLE, RJ45 × 2, USB 3.0 Type-A × 2, and USB 2.0 Type-A × 1. An integrated wall mount is provided for installation.

Manufacturer: Thundercomm

For project inquiries and technical fit in your unified communications or smart meeting application, please use our contact page, call 089 895050, or email store-ate@atxx.de.

Technical Specifications

• Product: Blink 2 All-in-One Video Bar
• MPN: Blink-2-TCOM
• Manufacturer: Thundercomm
• Target application: AIO MTR Bar for Small / Medium Rooms
• Chipset / Platform: C6490P
• Memory / Storage: 8GB LPDDR5 + 128GB UFS
• Memory option: 12GB optional
• OS support: Android 13 / MDEP OS
• Camera: 2× Fixed-focus cameras: Wide (IMX678), Tele (IMX678)
• Raw stream: Wide 8.3MP @ 30 FPS; Tele 8.3MP @ 30 FPS
• Video output format: MJPEG, YUY2, NV12, H.264 (3840×2160@30, 1080p@30, 720p@30, 540p@30, 360p@30)
• FOV: Wide HFOV 110°; Tele HFOV 60°
• Privacy: Manual privacy shutter
• Image processing: AWB/AE, MCTF NR, EPTZ engine, camera FOV calibration
• Microphones: 8-DMIC linear array, omnidirectional MEMS mic
• Speakers: Dual 10W full-frequency speakers with enclosure, stereo playback
• Audio front end: AI-NR, AEC, AGC, DOA, beamforming, dereverberation
• Intelligent features: Group auto-framing, face/body detection, people counting, single-speaker focus, dual-person conversation mode, composite mode with up to 6-person tracking
• USB BYOD: UVC 1.5, UAC 2.0, HID customization, supports DP input
• Connectivity: 1000M Ethernet, Wi-Fi 6/6E, BT 5.1, BLE, BT Pairing
• I/O: RJ45 × 2; USB 3.0 Type-C (DP Alt Mode); USB 3.0 Type-A × 2; USB 2.0 Type-A × 1; HDMI Out × 2; HDMI In × 1; DC Power Port
• Power: 19.2V 3A DC (TBD)
• Debug: 1× Internal Micro USB (UART Transfer)
• Accessory: Integrated wall mount

Application Areas

• Small to medium meeting rooms with integrated video-conferencing hardware
• All-in-one conferencing systems for professional meeting and collaboration environments
• BYOD meeting rooms with combined DP- and USB-based host integration
• Unified communications installations with dual-display requirements
• Smart meeting spaces with auto-framing, speaker focus, and people counting
• Professional collaboration environments with an integrated audio/video/AI platform
