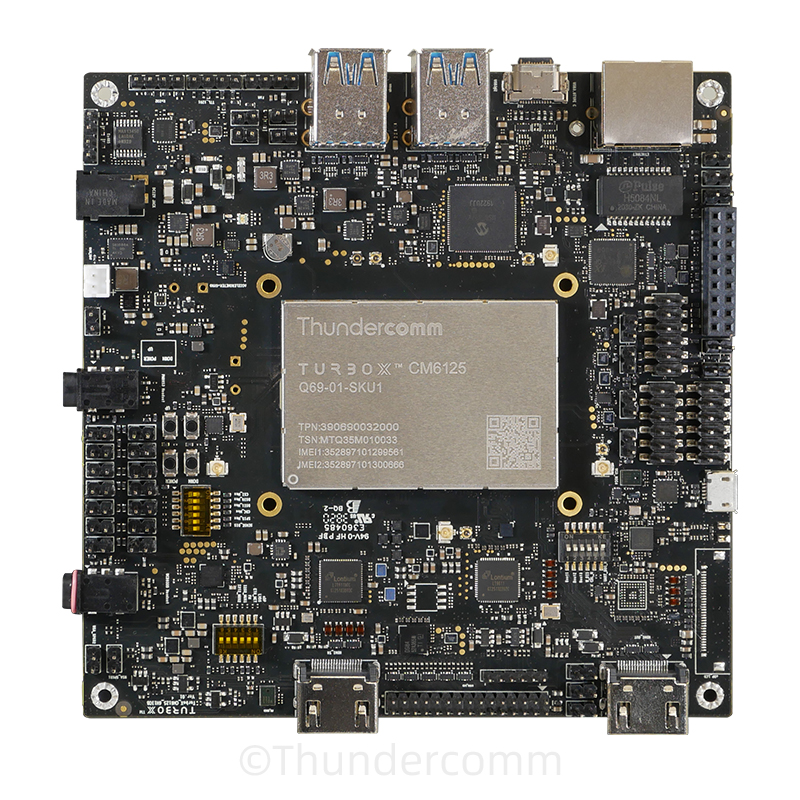

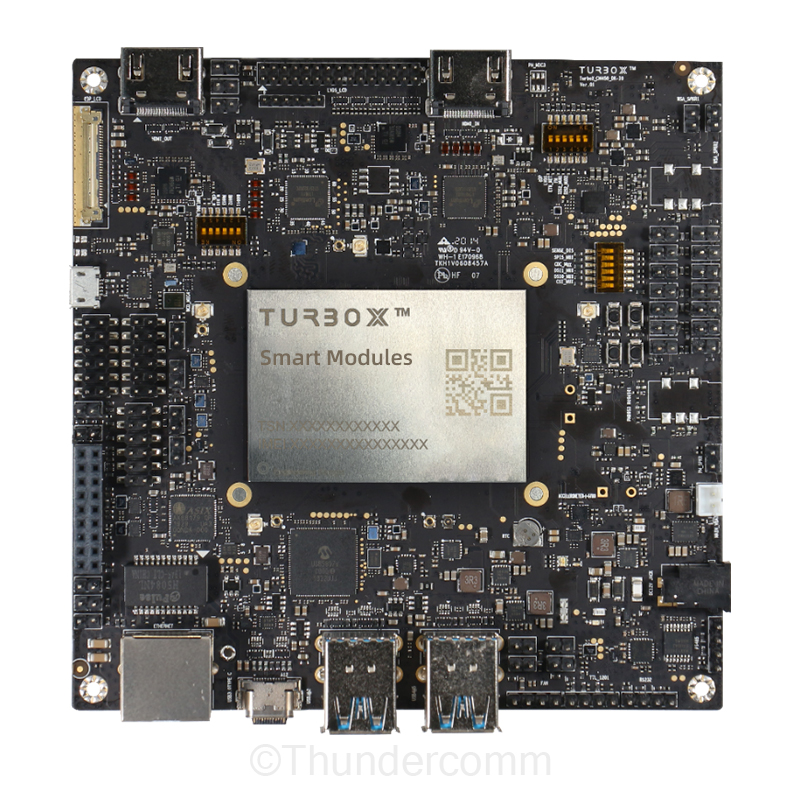

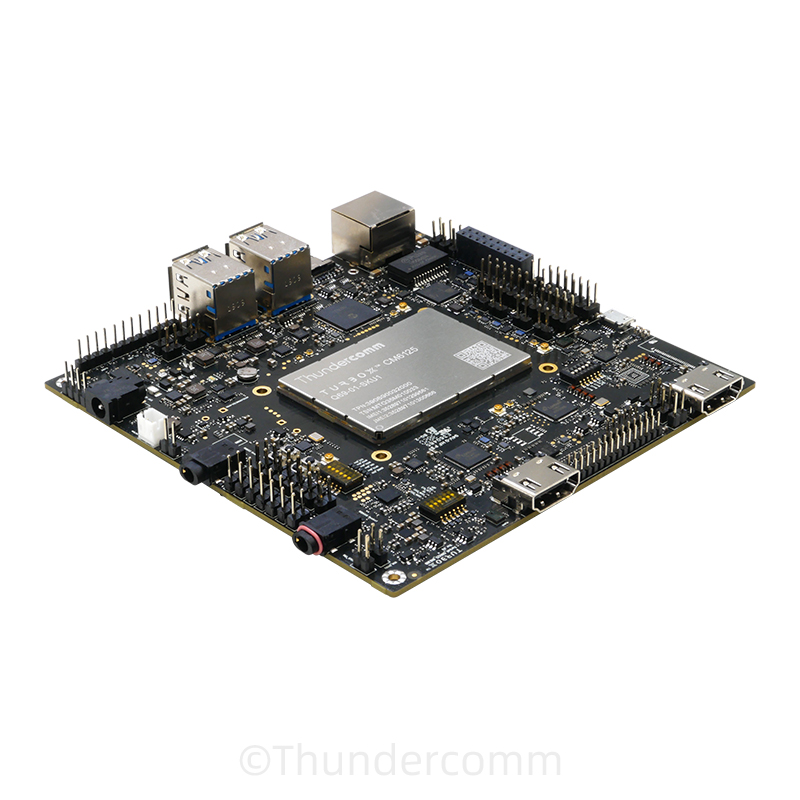

Thundercomm - TurboX™ CM6125 Development Kit

• Platform CM6125/C6125 SOM (These SOMs are pin2pin compatible and share the same carrier board)
• Camera Interfaces Dual 14-bit ISP,3 x MIPI-CSI 4lane Connectors
• 1 x OV08A10 Camera
• 1 x OV13B10 Camera
• 1 x HDMI In
• Display Interfaces 1 x DisplayPort 1.4; 1 x LVDS: 1 x 5.0“ TFT-LCD; 1 x HDMI Out;
• Audio Interfaces 2 x 3.5mm headset
• 4 x Digital Mics (From External Codec)
• 2 x Digital Mics (From CPU)
• 2 x Speaker out (From External Codec)
• Other Interfaces 1 x USB 3.0 Type C; 4 x USB 3.0 Type A; 1 x Micro USB(For Debug)
• 2 x SIM Card; 1 x PWM; 1 x SD card; 1 x RJ45
• 1 x RTC;1 x Super Cap; 1 x Battery Connector
• 1 x RS232/RS485/TTL; 1 x NFC;
• 1 x ALS/PROXIMITY SENSOR; 1 x ACCELEROMETER+GYRO Sensor;
• 1 x Magnetic Sensor; 1 x Pressure Sensor;
• 2 x LTE Antennas; 1 x Wifi/Bt Antenna; 1 x GNSS Antenna
• Operating Environment Operation Temperature: --20℃ ~ 70℃
• Operation Humidity: 5%~95%, non-condensing
• Dimension 120 x 120 mm
• OS Support Android 10

• Only suitable for technically experienced users who are familiar with the product.
• Only suitable for the intended use.
• Improper use can lead to damage and injury.
• Observe the manufacturer's further safety instructions.
