Main page » Categories » Network » Ethernet Switches » Teltonika Networks – TSW210 Ethernet Switch 8x Ethernet, 2x SFP

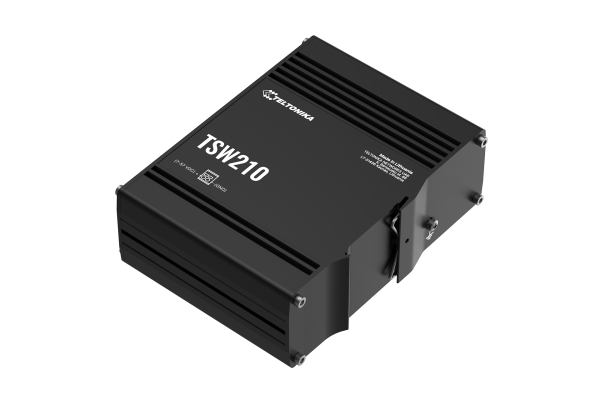

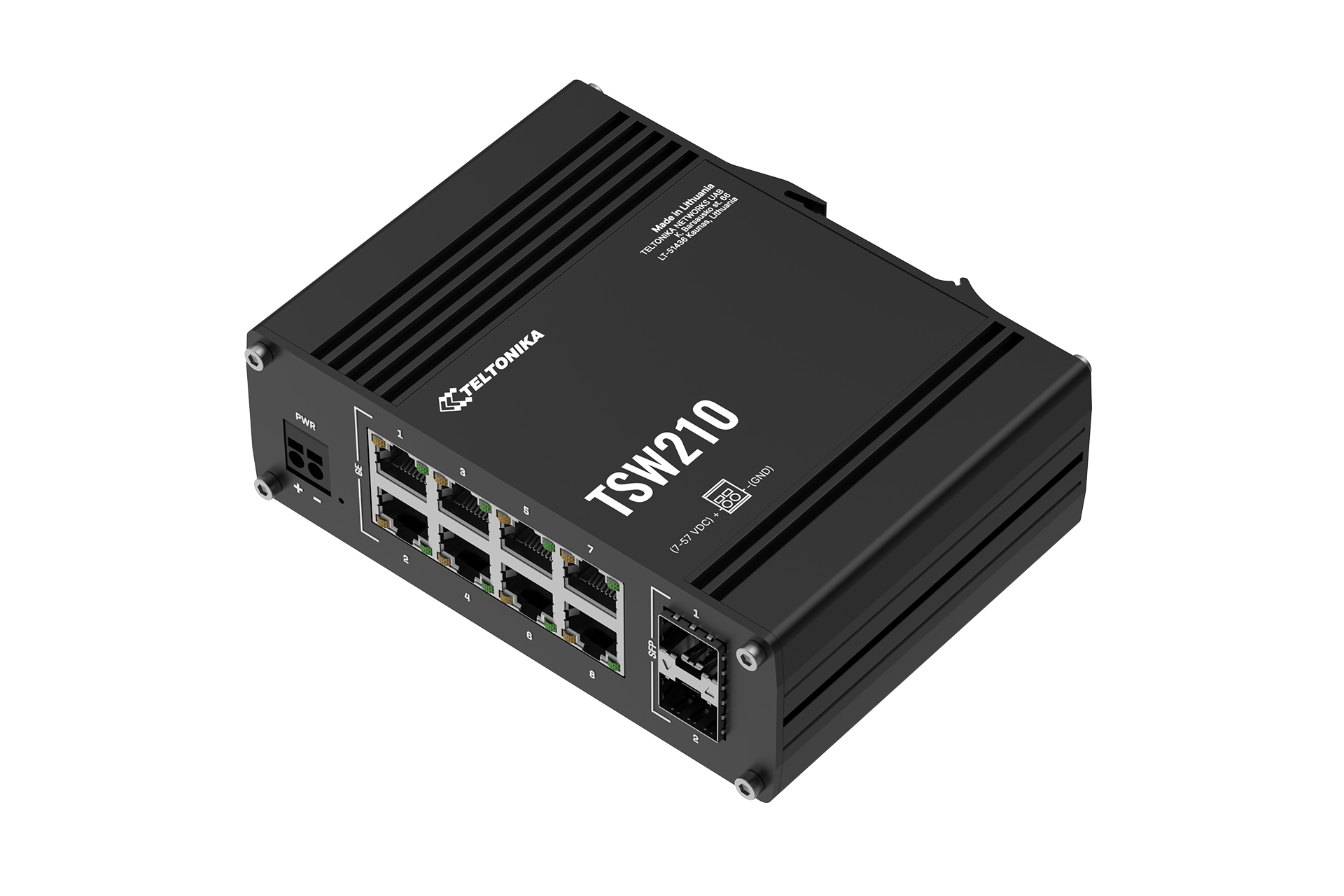

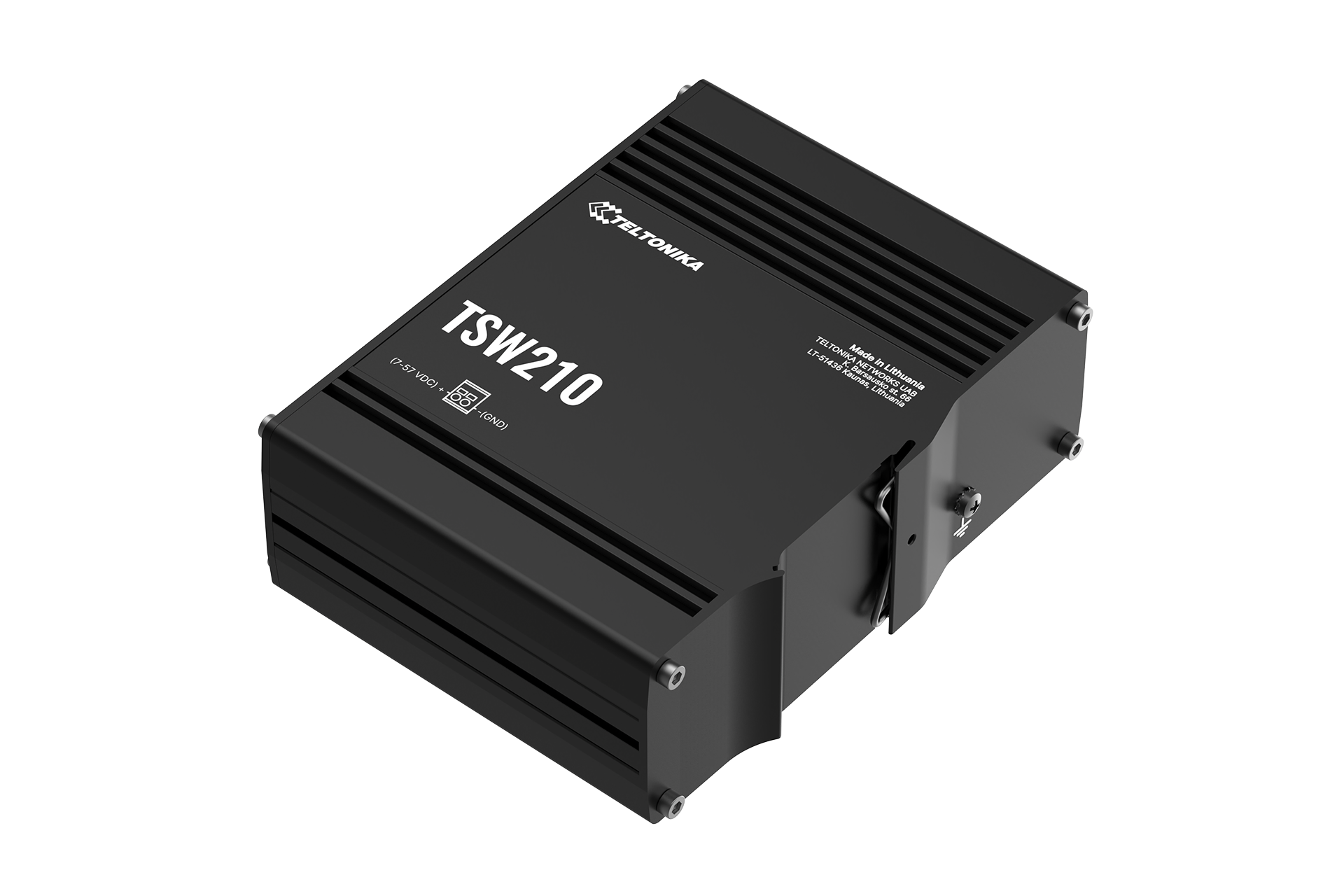

Teltonika Networks – TSW210 Ethernet Switch 8x Ethernet, 2x SFP
The Teltonika TSW210 is a compact unmanaged Layer 2 industrial Ethernet switch. Equipped with 8 Gigabit RJ45 ports and 2 SFP slots, it connects copper and fibre networks with a non-blocking switching capacity of 20 Gbps.

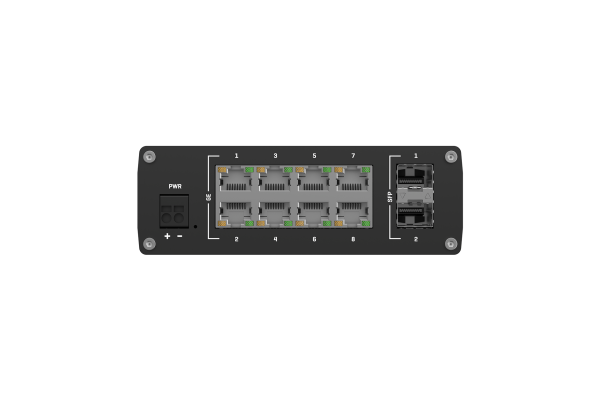

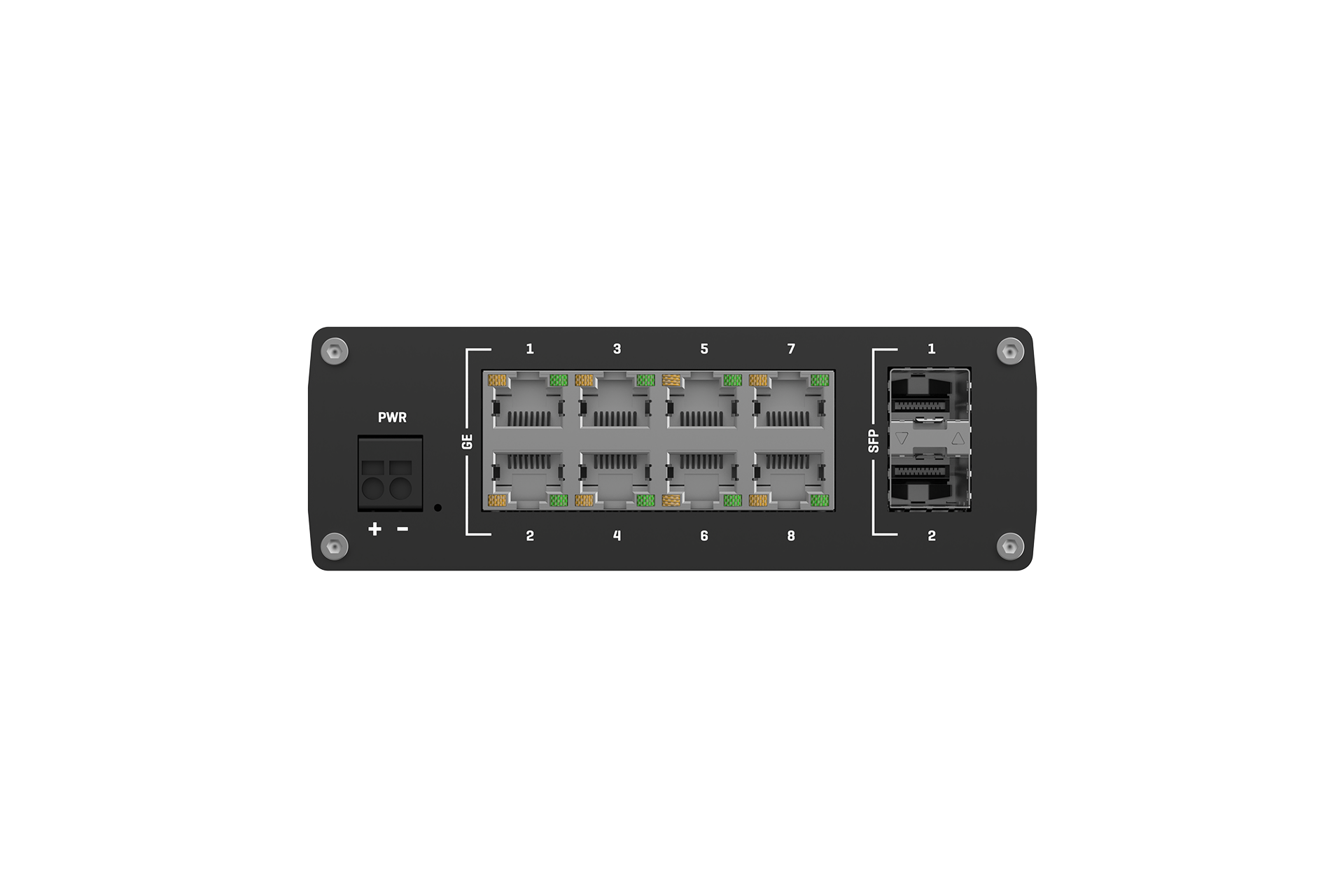

- 8× RJ45 (10/100/1000 Mbps) and 2× SFP fibre ports
- 20 Gbps switching capacity, 128 KB packet buffer, 2K MAC table
- Wide DC input range 7–57 V, typical power draw 1.03 W (max 3.71 W)
- Rugged aluminium housing, IP30 protection, DIN rail/wall mounting
- Operating temperature −40 °C to +75 °C, humidity 10–90 % (non-condensing)
- Compliant with IEEE 802.3i/u/ab/x/az standards
Ideal for edge-switching, fibre uplinks, and compact cabinet installations in industrial environments.
| Ethernet Ports | 8× RJ45 10/100/1000 Mbps (Auto MDI/MDIX) |
|---|---|
| SFP Ports | 2× SFP |
| Switching Capacity | 20 Gbps (Non-Blocking) |
| Jumbo Frames | Up to 9216 Bytes |
| Packet Buffer | 128 KB |
| MAC Table | 2K entries |
| DC Input | 7–57 V DC (2-pin industrial connector) |
| Power Consumption | ~1.03 W (idle) / max 3.71 W |
| Dimensions | 132 × 44.2 × 95.1 mm |
| Weight | approx. 500 g |
| Enclosure / Protection | Aluminium, IP30 |
| Mounting | DIN rail (integrated), wall or surface (accessory required) |
| Operating Environment | −40 °C … +75 °C; 10–90 % RH (non-condensing) |
| Certifications | CE, UKCA, FCC, IC, RCM, CB, EAC |
