Product description

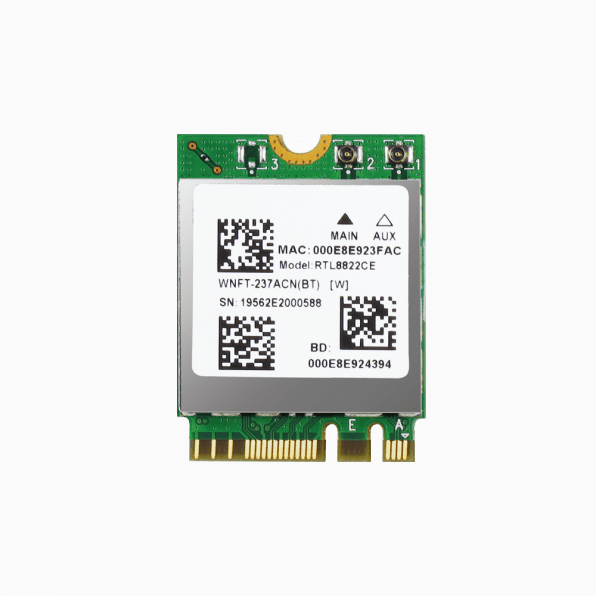

Sparklan WNFT-237ACN(BT) is a 802.11ac/a/b/g/n Dual -Band WiFi+Bluetooth M.2 (Key A,E) module (WiFi 5) based on the Realtek RTL8822CE chipset, It supports multiple drivers (Android/ Windows/ Linux) for various platforms. This module supports MU-MIMO on dual band 2.4GHz or 5GHz operating frequencies and incorporates the latest Bluetooth 5.0 technology. The data rate is up to 867Mbps in ac mode. The module is in the M.2 2230 form factor.
The WNFT-237ACN(BT) is using highly integrated single-chip MIMO (Multiple In, Multiple Out) wireless local area network (WLAN) RTL8822CE solution to let users enjoy the high digital content through the latest wireless technology without using cables and cords. RTL8822CE combines a WLAN MAC, a 2T2R capable WLAN baseband, and RF in a single chip. The WNFT-237ACN(BT) module enables a high performance, cost effective, low power, compact solution that easily fits in the PCI Express and USB M.2 2230 A-E Key module which is incorporated with advanced security encryption WEP, WPA, WPA2, WPS,WPA3, and 802.1x, it will safeguard the user’s devices from malicious attacks.
Key features
- Chipset: Realtek RTL8822CE
- Antenna: 2 x IPEX MHF4 connectors, 2T2R
- Interface: PCIe: WLAN; USB: Bluetooth
- Output Power up to 18dBm
- OS-Support: Windows 10, Linux, Android
